Drywall Partition Systems Roll Forming Line

C Z channel roll forming machine production line

KINGREAL can provide the CZ channel roll forming machine to produce both C and Z purlin channel profile with high speed. Send us your requirements or drawings and get an up-to-date quote immediately!

  • Video Display


    Machine Description:
    CZ Channel Roll Forming Machine


    KINGREAL C and Z channel roll forming machine is one of our most featuring products, and it is featured with high speed output (up to 120m/min), full automatic running (auto stacking system for your choice), easy to operate, etc.

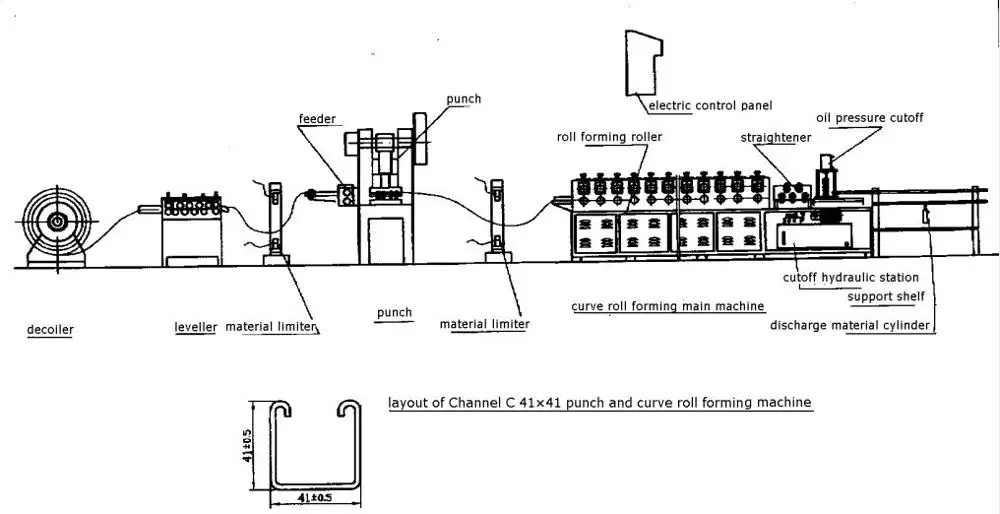

    The basic structure of C and Z channel profile making machine is decoiler, continuously cold roll forming, hydraulic follow shearing, auto stacking system, etc.

     Technical Specification

    Machine Name:

    Full-Automatic C Z Channel Production Line

    Products Name:

    C-Shape Profiles, Z-Shape Profiles

    Products sizes:

    As per requirements

    Automation:

    Manual Operation/Full-Automatic Production with PLC

    Certificate:

    CE certificate, ISO 9001 certificate

    Machine Power:

    380V 50HZ or according with customers‘ request

    Speed:

    0~120m/min adjustable

    Main Features:

    Equipped with air cooling system, Famous brand hydraulic system, light curtain safety protection


     Machine Features:

    - Double heads decoiler

    - High speed cold roll forming

    - Combi structure for your choice to produce different steel profiles on one machine

    - Machine protection

    - Hydraulic fly shearing

    - Auto stacking system for your choice.

    CZ Purlin


     Main Components Details:

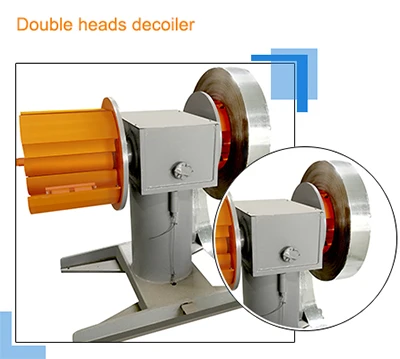

    1. Double heads decoiler

    The high-speed keel shaping machine‘s primary purpose for the double-head decoiling machine is to unwind raw materials. When a machine is in operation, materials can be loaded; thus, make sure the production line can run continuously at a high pace.

    The equipment can also be used to produce keels of various sizes using different keel forming machines. In terms of changing materials, it saves time and increases productivity.
    stud and track roll forming machine

    2. High Precision Cr12MoV forming rollers

    Cr12mov mold steel has an HRC of 580–600 after heat treatment. which a CNC machine processes.

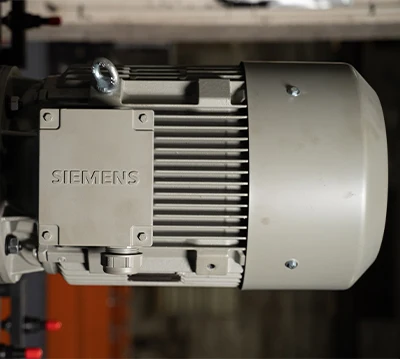

    3. Siemens Main Motor

    To ensure a long operating life, we employ a Siemens main motor. Additionally, we can alter the motor‘s voltage.

     Advantage Of This Machine

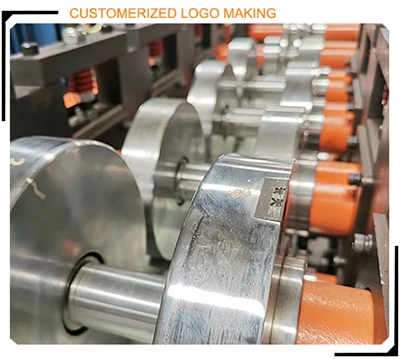

    1. Customized Logo Making

    LOGO can be modified by our organization to meet customer needs. We offer LOGO rolling, stamping, laser coding, and other solutions for various items. A personalized LOGO can boost a company‘s reputation and generate publicity.

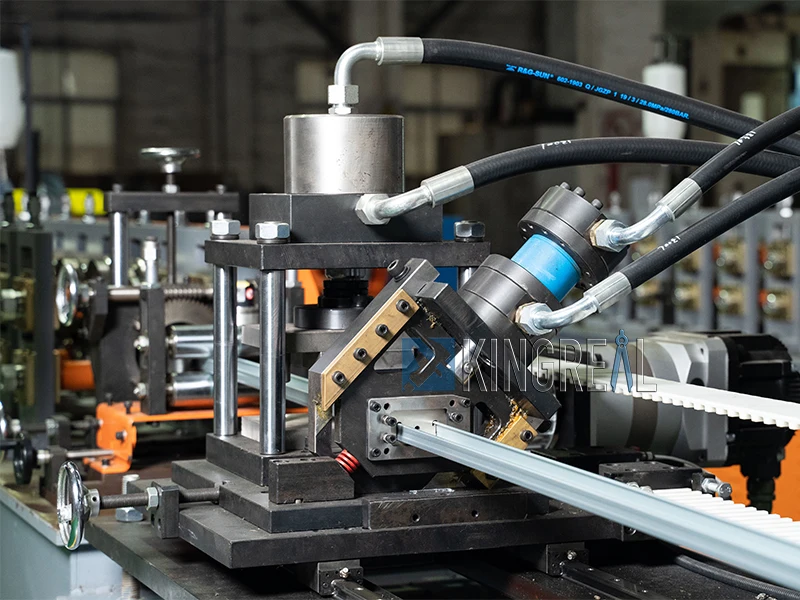

    2. High quality Hydraulic System

    The hydraulic components use a hydraulic system with high energy storage efficiency. Additionally, it uses hydraulic components from Germany or Taiwan. It can be used to quickly punch and shear a variety of roll-formed items.
    stud and track forming machine
    3. HIGH QUALITY ELECTRICAL APPLIANCES

    We employ top-notch foreign electrical appliances, like Japanese Yaskawa NC servo feeders, FATEK PLCs, and MCGS touch screens, to assure the steady and uninterrupted operation of our equipment.

     Final Product

    stud and track machine

     Application

    track roll forming machine

     Installation Service

    stud and track roll forming machine

    In order to help our customers to solve machine installation problems, KINGREAL will provide both online and local installation services.


    1. Online installation guide

    -  Photos and videos of machine will be sent

    - Online group will be initiated to discuss together

    - Regular video conference be held to keep communication and contacting


    2.  Local installation

    KINGREAL will arrange engineers to go abroad to install the machine at the customer‘s place to ensure the normal operation of the machine, and will provide all technical guidance. Exact costs to be negotiated.

     After-Sales Services

    stud and track forming machine

    Services are always highly considered by us, in addition to establishing a complete remote service system, localized after-sales service is also what we have been insisting on doing. The global localization service point is under construction.


     Customer Feedback

    stud and track machine


    KINGREAL has rich experience in production and sales, and is committed to providing customers with the best solutions to solve customer problems. At present, it has been recognized by customers from all over the world.
