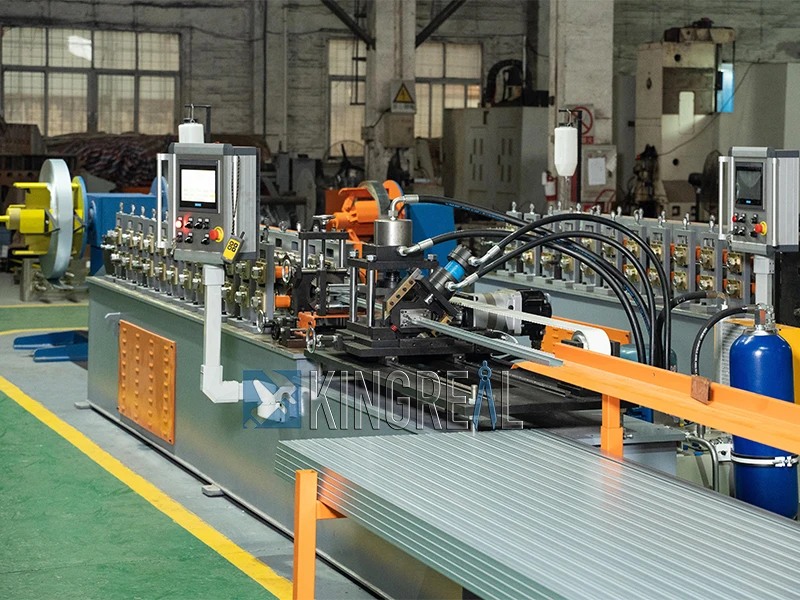

Metal CU Channel Profile Making Machine

Machine Name:	Full-Automatic CU Carrier Production Line
Products Name:	C-Shape Profiles, U-Shape Profiles
Products sizes:	As per requirements
Automation:	Manual Operation/Full-Automatic Production with PLC
Certificate:	CE certificate, ISO 9001 certificate
Machine Power:	380V 50HZ or according with customers‘ request
Speed:	0~120m/min adjustable
Main Features:	Equipped with air cooling system, Famous brand hydraulic system, light curtain safety protection

KINGREAL offer full solution for ceiling profiles high speed production, these machines including:
1.Steel C channel profile roll forming machine
2.Steel U channel profile roll forming machine
3.Steel furring hat channel making machine
4.Flexible Stud and tracks making machine
5.Angle profile channel making machine

KINGREAL C channel roll forming machine is one of our most featuring products, and it is featured with high speed output (up to 120m/min), full automatic running (auto stacking system for your choice), easy to operate, etc.
The basic structure of C channel profile making machine is decoiler, continuously cold roll forming, hydraulic follow shearing, auto stacking system, etc.

Machine Features:

-Double heads decoiler

-High speed cold roll forming

-Combi structure for your choice to produce different steel profiles on one machine

-Machine protection

-Hydraulic fly shearing

-Auto stacking system for your choice.

Structure of the production line:

-Hydraulic decoiler

-Main roll forming machine

-shearing station

-Output table

-Electrical & Hydraulic system

FEATURES - KINGREAL CU CHANNEL PROFILE PRODUCTION LINE

Double heads decoiler

The double-head decoiling machine is mainly used for unwinding raw materials for high-speed keel forming machine. Materials can be loaded when the machine is working, therefore ensure the production line can continuously work at high speed.

In addition, the machine can be used for multi-size production with multi-spec keel forming machines. It is time-saving in changing materials and efficiency-improving.

High Precision Cr12MoV forming rollers

Cr12mov mold steel, heat treatment hardness up to HRC 58⁰-60⁰. Which is processed by CNC machine.

Siemens Main Motor

We use Siemens main motor for our machine to ensure long-time working. Also, we can customize the motor with different voltages.

ADVANTAGES - KINGREAL METAL CLAMPING CLIPS MAKING MACHINE

CUSTOMERIZED LOGO MAKING

Our company can customize LOGO according to customer’s requirements. For different products, we provide LOGO rolling, stamping, laser coding and other solutions.

Customized LOGO can enhance the company’s image and bring publicity.

High quality Hydraulic System

The hydraulic parts use high efficiency energy storage type hydraulic system. And it adopts Taiwan or Germany hydraulic components.

It can be used for the high-speed punching and shearing of different roll formed products.

HIGH QUALITY ELECTRICAL APPLIANCES

We use high-quality imported electrical appliances, such as Japanese Yaskawa NC servo feeder, PLC from FATEK, MCGS touch screens, which can ensure stable and continuous work of our machines.
