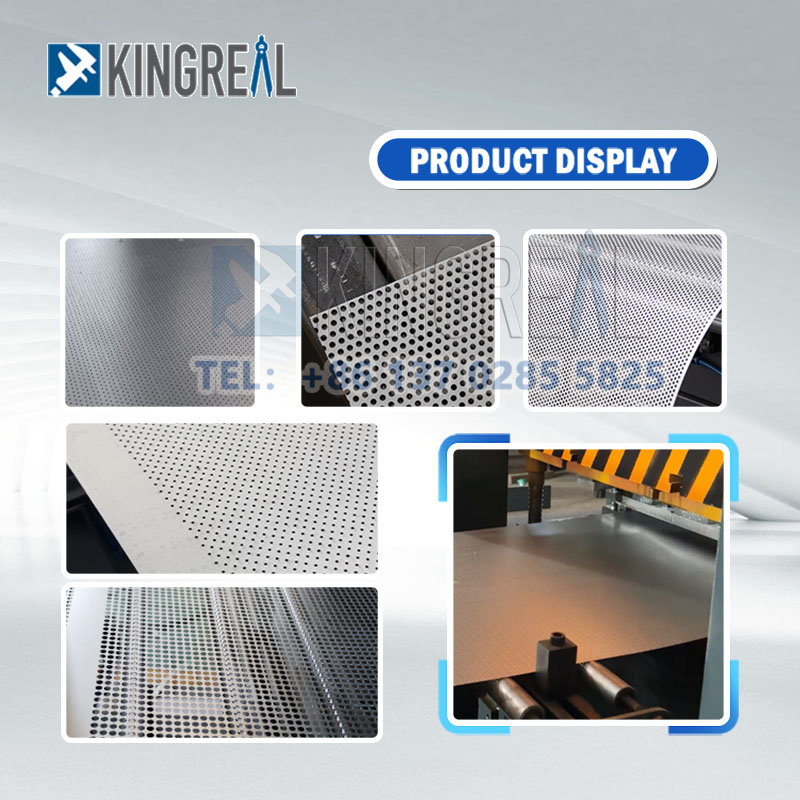

Perforated metal sheets are a core material in industries such as hardware processing, curtain wall decoration, screening and filtration, and ventilation equipment. The flatness of their surface directly determines the quality of subsequent processes—such as bending, welding, assembly, and coating—and serves as a key criterion for assessing the quality of the finished product.
However, during mass production on a aluminium strip perforation machine, the metal sheet undergoes high-speed punching, causing localized material to be continuously stretched, compressed, and sheared. This disrupts the sheet's original internal stress balance, inevitably leading to deformations such as warping, edge buckling, surface waviness, and localized bumps or depressions. Such deformations cannot be entirely avoided simply by optimizing punching parameters; if left unaddressed, the deformed sheets cannot be used directly in subsequent processing stages.
To resolve this industry pain point at the source and ensure that perforated sheets meet flatness standards for immediate use in downstream processes, the most efficient and stable solution is to integrate the aluminum sheet metal perforated machine with a perforated sheet straightening machine for coordinated operation.
Drawing on practical production experience, this article provides a detailed analysis of the causes of perforated sheet deformation, the principles of coordinated operation between aluminium strip perforation machines and perforated sheet straightening machines, and the key production advantages of this equipment integration.
Video About aluminium strip perforation machine & perforated sheet straightening machine:
Primary Causes of Perforated Sheet Deformation
The bending and warping of perforated sheets during processing result from the interplay between material properties and punching parameters. The degree of deformation varies significantly depending on production conditions, with the primary influencing factors falling into two categories:
Raw Material Properties
Different metals possess varying levels of toughness, hardness, and stress-induced spring-back characteristics, leading to vastly different degrees of deformation after punching. Stainless steel is the most difficult material to level after punching; due to its high hardness and strong plastic spring-back, the uneven release of residual internal stress often causes overall warping and raised areas around the holes, with deformation magnitudes far exceeding those of conventional materials like carbon steel, aluminum, or galvanized sheet.
In contrast, ordinary carbon steel and cold-rolled sheet exhibit greater stress stability, resulting in relatively minor deformation after punching and making them easier to correct with a perforated sheet straightening machine.
Hole Diameter and Pitch
In the punching process, the smaller the hole diameter and the denser the hole spacing, the greater the area of material sheared away; this results in more severe disruption to the material's structural integrity and a more significant imbalance of internal stresses. After processing dense arrays of small holes, the superposition of tensile and compressive stresses at various points across the sheet can cause extensive "wavy" deformation.
Conversely, sheets with larger hole diameters and wider spacing retain more of their base structure, resulting in relatively uniform stress distribution; this significantly reduces the degree of post-punching deformation and lowers the precision requirements for the perforated sheet straightening machine.
Synergy Between Aluminium Strip Perforation Machine and Perforated Sheet Straightening Machine
To thoroughly correct deformation caused by the punching process and eliminate internal residual stresses, professional leveling is essential. The collaborative operation of an aluminum sheet metal perforated machine and a perforated sheet straightening machine is a proven solution for ensuring the flatness of punched sheets in industrial mass production, suitable for various materials and hole patterns.

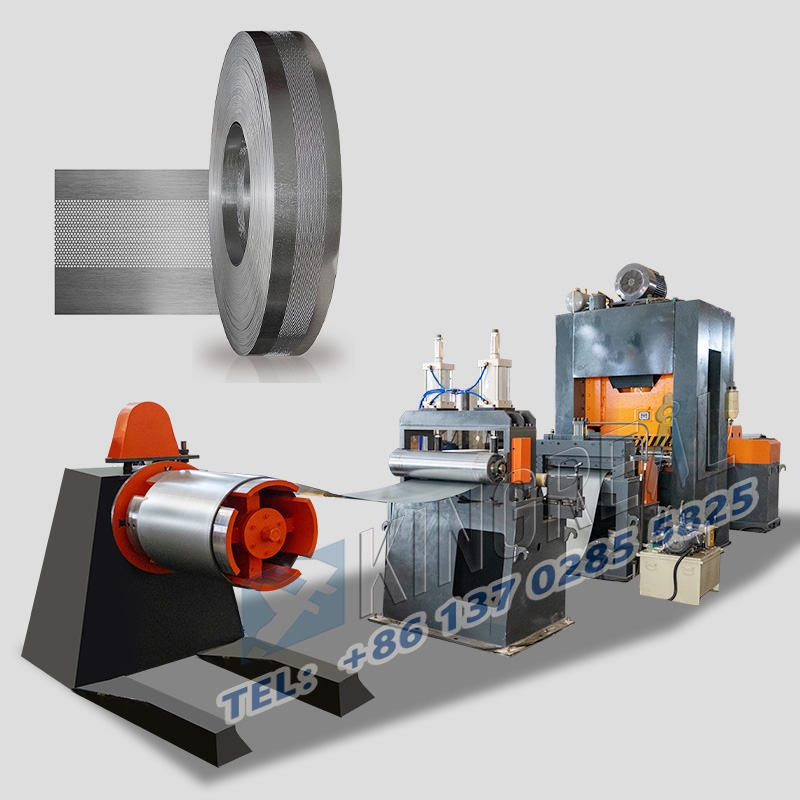

The workflow is streamlined and efficient: after the aluminum sheet metal perforated machine completes the punching and shearing of the coil stock, the finished sheets are output in an orderly manner, and operators smoothly feed them into the perforated sheet straightening machine's inlet. The perforated sheet straightening machines supplied by KINGREAL feature a high degree of intelligence and ease of use; operators simply input the punched sheet's specifications into the control system, and the machine automatically adjusts the leveling pressure, roller speed, and bending amplitude, allowing operations to start without complex setup.

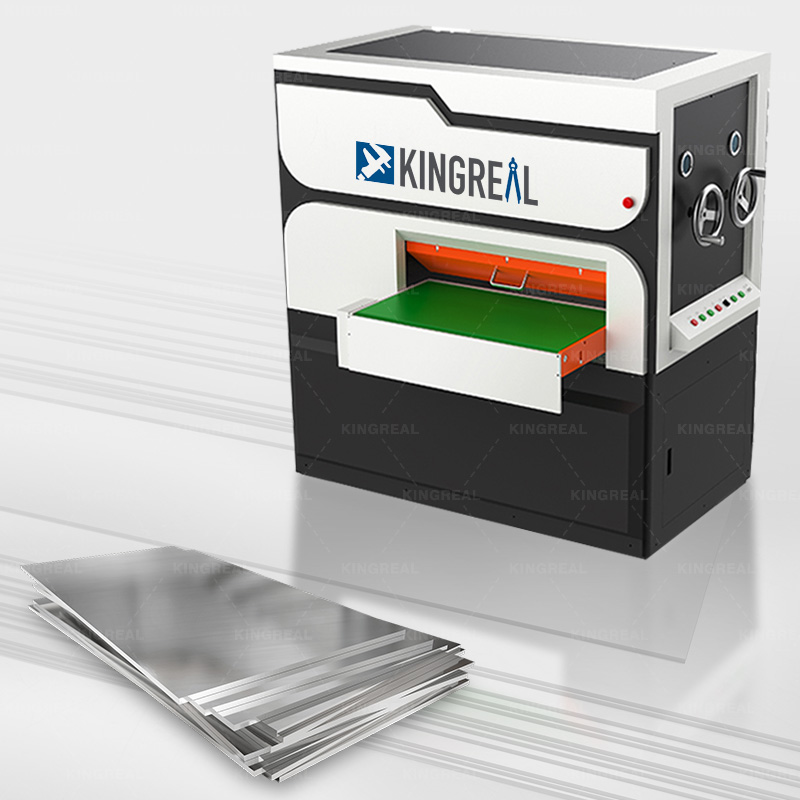

The perforated sheet straightening machine utilizes a multi-roller staggered correction principle. Through a structural design featuring offset upper and lower leveling rollers, the punched sheet undergoes repeated alternating bending as it passes through the machine. This process gradually releases internal residual stresses generated during punching and corrects defects such as warping, unevenness, and waviness. Sheets with standard deformation require only a single pass through the leveling machine to achieve high-precision flatness, ensuring that leveling efficiency and accuracy align perfectly with the mass production pace of the aluminium strip perforation machine.
To meet the diverse production needs of customers, KINGREAL offers various specifications of perforated sheet straightening machines for aluminum sheet metal perforated machines, most notably 4 high roller leveling machine and 6 high roller leveling machine. The configuration of the leveling rolls is the critical factor determining leveling performance; a higher number of rolls results in denser contact points on the material and a more uniform correction process. This enables the precise elimination of minor deformations and internal residual stresses, thereby achieving higher leveling accuracy.
6 high roller leveling machines are recommended for challenging work-pieces such as thin stainless steel sheets and high-precision perforated sheets with dense, small-diameter holes, whereas 4 high roller leveling machines are sufficient for standard carbon steel plates and large-aperture perforated sheets.
Furthermore, KINGREAL tailors the leveler selection to each customer's specific requirements—considering processing capacity, material type, perforation specifications, and precision standards—to optimize the integration of the aluminium strip perforation machine and perforated sheet straightening machine, ultimately maximizing the quality of the leveled sheets.
Benefits of Integrating Aluminium Strip Perforation Machines with Perforated Sheet Straightening Machines
Integrating the aluminum sheet metal perforated machine with the perforated sheet straightening machine eliminates the traditional need for secondary, outsourced leveling after the punching process. This setup offers significant production advantages, providing a core guarantee for cost reduction, efficiency improvement, and consistent product quality.
1
Substantial reduction in production costs and process complexity
In traditional workflows, perforated sheets often deform during processing and require transport to an external facility for secondary leveling. This incurs additional outsourcing and transportation fees and increases the workload associated with material handling, sorting, and stacking, while also raising the risk of surface damage or batch mix-ups.
By equipping the workshop with both a aluminum sheet metal perforated machine and a perforated sheet straightening machine, manufacturers can achieve an integrated punching and leveling operation. This eliminates the need for outsourcing, saves on additional processing costs at the source, and streamlines the production workflow.
2
Significant improvement in overall production efficiency
Once the aluminum sheet metal perforated machine completes the punching and shearing of the sheet, it can immediately feed the material into the perforated sheet straightening machine for processing. This creates a seamless, closed-loop production flow—moving directly from punching to leveling—without the need for waiting periods or secondary material handling.
The two processes integrate seamlessly, operating synchronously without mutual interference; this ensures a continuous mass-production rhythm for the aluminum sheet metal perforated machine while simultaneously completing sheet leveling.
This approach significantly shortens production cycles and boosts overall capacity, perfectly meeting the demands of high-volume, standardized manufacturing.
3
Ensures consistent product quality
Manual re-leveling or outsourcing the leveling process often suffers from precision instability and significant margins of error, leading to defects such as over-leveling, under-leveling, or surface scratches.
In contrast, integrating a dedicated perforated sheet straightening machine with the aluminium strip perforation machine allows for precise control over correction parameters and ensures uniform, stable application of force. This effectively corrects deformation and eliminates internal residual stress in the punched sheets while preserving surface integrity.
It guarantees consistent flatness across every batch, allowing the finished punched sheets to proceed directly to subsequent stages—such as bending, assembly, and coating—thereby effectively reducing rework and scrap rates.
Sheet deformation is an unavoidable technical challenge during the punching process; however, pairing the line with a professional perforated sheet straightening machine offers the most scientific and efficient solution to correct deformation and ensure flatness.
KINGREAL offers comprehensive, customized solutions that integrate aluminum sheet metal perforated machines with perforated sheet straightening machines, catering to the diverse needs of various industries.
Please contact KINGREAL at any time for further details on equipment specifications and custom solutions.
