Galvanized Octagonal Tube Machine

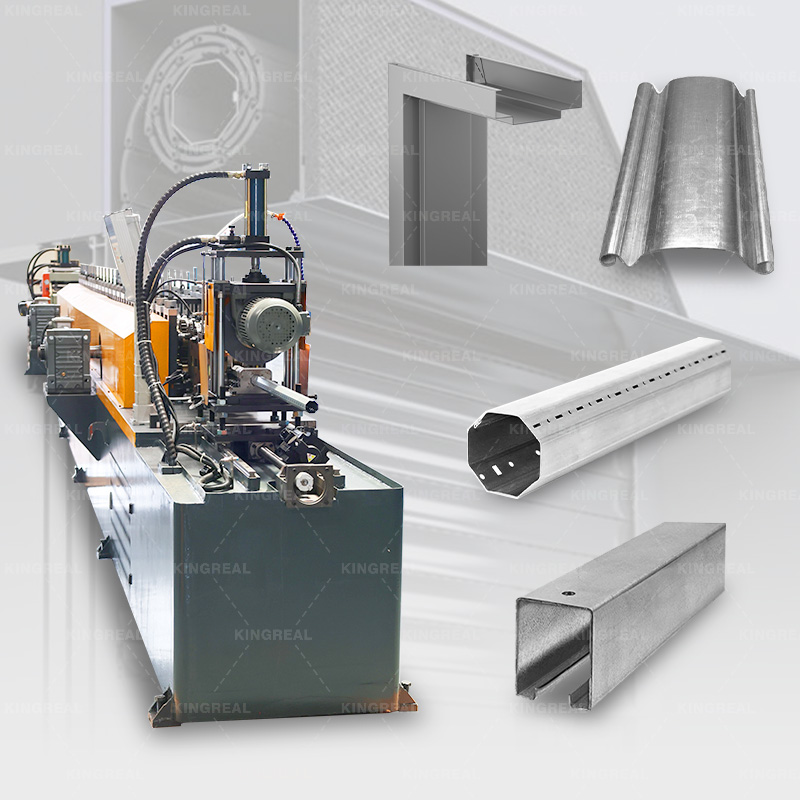

KINGREAL galvanized octagonal tube machine is the core component of a complete rolling shutter door production line. It specializes in the large-scale, customized production of a full range of octagonal tubes—specifically 40mm, 60mm, 70mm, and 80mm sizes—designed for rolling shutter doors.
The octagonal tubes produced serve as the central metal drive shafts for these door systems; they are responsible for winding and supporting the steel shutter slats, ensuring smooth lifting and long-term reliable operation. They are widely compatible with residential, commercial, and industrial rolling shutter door applications.
KINGREAL offers more than just standalone octagonal tube forming machines; we provide comprehensive, one-stop solutions for rolling shutter door systems. Our portfolio includes roller shutter roll forming machine, guide rail roll forming machine, and galvanized octagonal tube machine, as well as specialized door frame making machines for metal door & window systems. This enables us to fully meet customer needs for one-stop procurement and systematic factory setup.
Octagonal Tube Forming Machine
KINGREAL galvanized octagonal tube machine is engineered specifically for the tube shafts used in rolling shutter doors and garage doors.

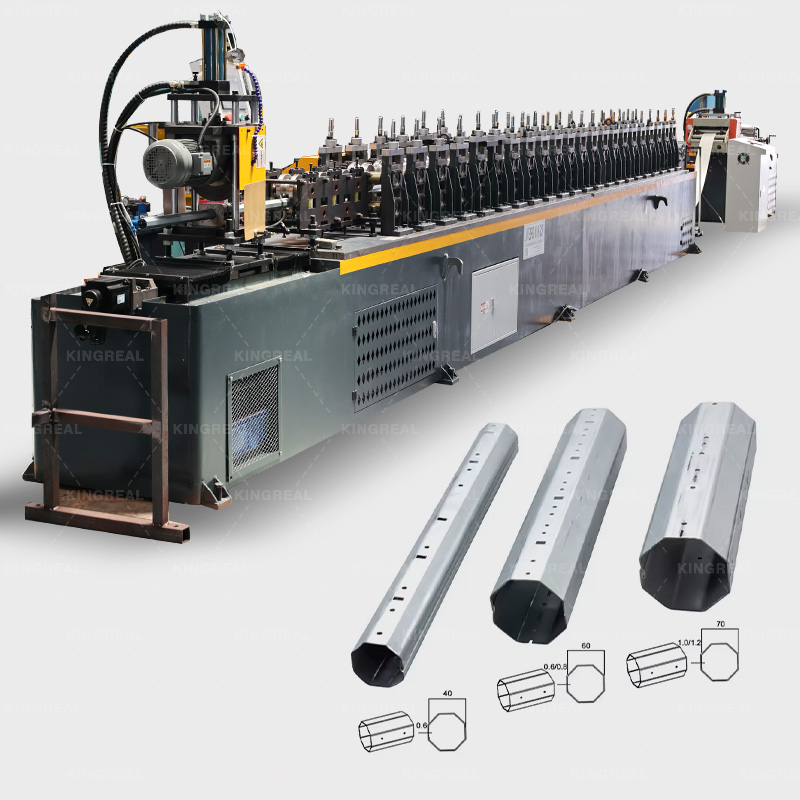

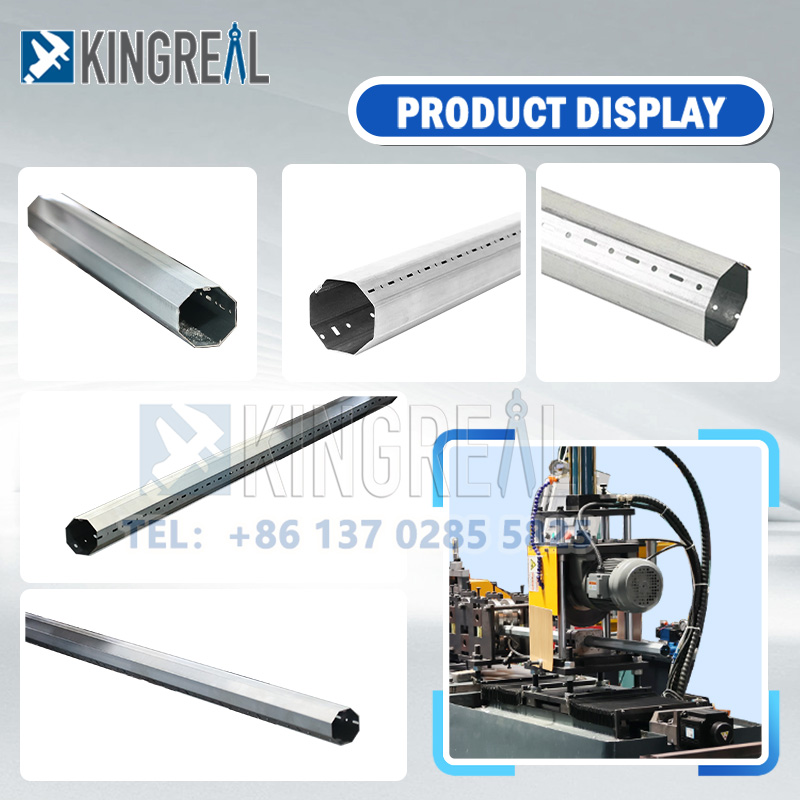

Compatible with galvanized steel coils ranging from 0.4mm to 1.2mm in thickness, the octagonal tube forming machine enables standardized mass production of octagonal tubes in 40mm, 60mm, 70mm, and 80mm specifications. The finished products feature precise dimensions and uniform quality, fully complying with assembly standards for various rolling shutter door systems.
Production specifications can be switched simply by changing the forming stands; this versatility allows a single machine to handle multiple profiles efficiently, offering flexibility while significantly reducing equipment procurement and factory floor space costs.
The octagonal tubes produced by this galvanized octagonal tube machine offer exceptional versatility, making them suitable for a wide range of applications, including lightweight residential shutters, commercial storefront shutters, and heavy-duty industrial factory shutters. As the core winding and support component, these high-precision octagonal tubes evenly distribute the weight of the door curtain, preventing misalignment or jamming, and thereby significantly enhancing the operational stability and service life of the rolling shutter door system.
Additionally, this octagonal tube forming machine is specifically designed for the production of garage door tube.
It allows for the precise adjustment of forming parameters based on the operational characteristics of garage door systems, creating high-precision, seamless tube shafts.
The resulting octagonal shafts are seamless, uniform in size, structurally robust, and possess high compressive strength. By enhancing the quality of this core component, the machine improves the overall durability of the garage door, ensuring smooth, quiet, and stable operation while reducing the likelihood of future maintenance issues.
KINGREAL offers comprehensive customization services for its octagonal tube forming machines, tailoring production solutions to meet specific client needs regarding production capacity, finished product specifications, and automation levels.
The galvanized octagonal tube machine supports high-speed, automated continuous production with high yield rates and minimal material waste. Its automated operation significantly reduces the need for manual intervention, effectively boosting efficiency and lowering costs, thereby providing global clients with a cost-effective, stable, and reliable solution for manufacturing octagonal shafts for rolling shutter doors.
Octagonal Tube Forming Machine Specifications
| Item | Specification |
| Product Name | Octagonal Tube Forming Machine |
| Raw Material | Galvanized Steel, Carbon Steel, Stainless Steel |
| Material Thickness | 0.8 – 3.0 mm |
| Tube Shape | Octagonal Hollow Section |
| Forming Speed | 15 – 40 m/min |
| Roll Forming Stations | 16 – 24 stations (customized) |
| Roller Material | GCr15 bearing steel, heat treated |
| Shaft Diameter | 60 – 90 mm |
| Main Motor Power | 15 – 30 kW |
| Cutting Type | Flying saw or hydraulic cutting |
Complete Rolling Shutter Door Production Line

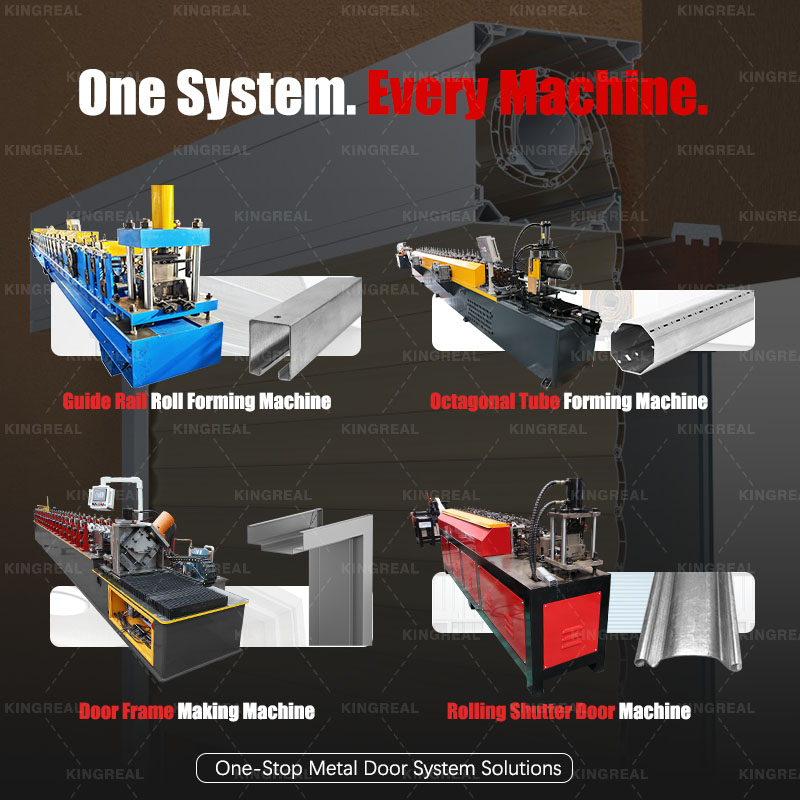

KINGREAL complete rolling shutter door production line centers on the octagonal tube forming machine. By integrating this with proprietary roller shutter roll forming machine and guide rail roll forming machine, it creates a comprehensive, closed-loop production system capable of the one-stop mass production of core rolling shutter door components.
This production line is highly suitable for both small-to-medium-sized workshops and large-scale manufacturing enterprises. The equipment features synchronized parameters and coordinated operation, offering excellent compatibility. It enables the integrated production of a full suite of components—including roller shutter slats, drive octagonal tubes, and installation guide rails—thereby significantly enhancing overall production efficiency and streamlining manufacturing workflows.
In addition to complete production lines for roller shutter door systems, KINGREAL offers customized door frame making machine solutions for various metal door and window systems. These solutions cover the production of frames in diverse materials and specifications, comprehensively meeting customers' multifaceted and systematic manufacturing needs.
2026 Octagonal Tube Forming Machine Project

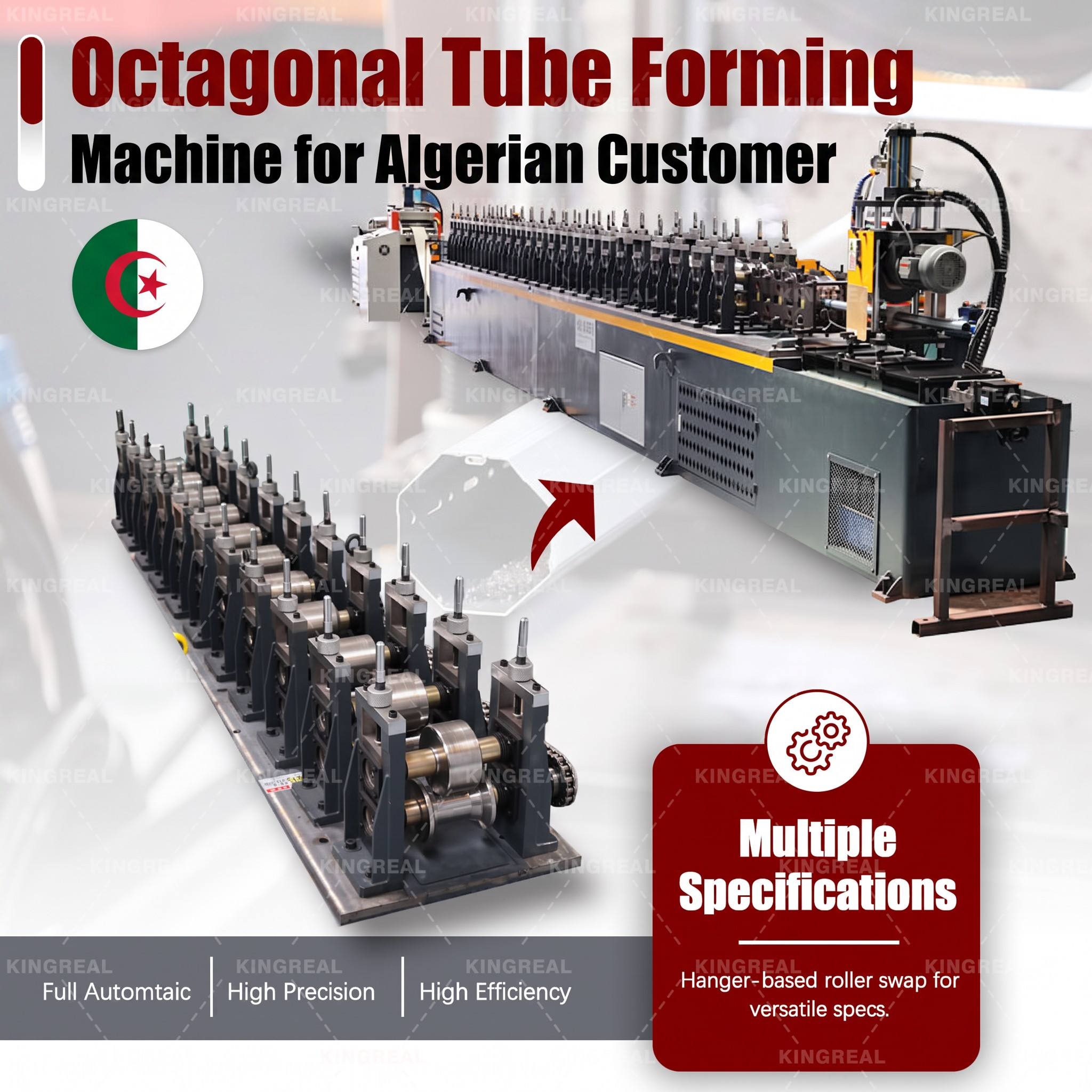

In 2026, KINGREAL successfully completed the entire production process for a newly developed, customized galvanized octagonal tube machine. From initial project consultation, personalized equipment design, and precision component manufacturing to assembly, commissioning, accuracy testing, and final acceptance, the project strictly adhered to international production standards and the Algerian client's specific requirements. Every stage was rigorously overseen by a professional team. The octagonal tube forming machine has successfully passed the Algerian client's acceptance inspection. The client expressed high satisfaction and appreciation for the machine's forming accuracy, operational stability, and automation level, as well as the meticulous one-on-one service provided throughout the process. Moving forward, KINGREAL will continue to support the equipment's delivery, installation, commissioning, and entry into production. KINGREAL provides comprehensive, one-stop after-sales support—including spare parts supply, technical training for operators, regular maintenance, and rapid troubleshooting—to ensure the galvanized octagonal tube machine's long-term, stable operation. This octagonal tube forming machine project marks KINGREAL deeper entry into the Algerian market and further expands its global footprint. |  |
KINGREAL Design Capabilities
KINGREAL boasts a professional equipment R&D and design team with mature capabilities in the customized design of octagonal tube forming machines, fully capable of meeting both standardized and non-standard/specialized production requirements.
Tailoring designs to specific project scenarios, finished product specifications, and capacity standards, the team integrates client-provided drawings with local industry standards and regulatory requirements. They optimize equipment structures and adjust forming parameters to create bespoke machines that precisely match the client's unique production needs.

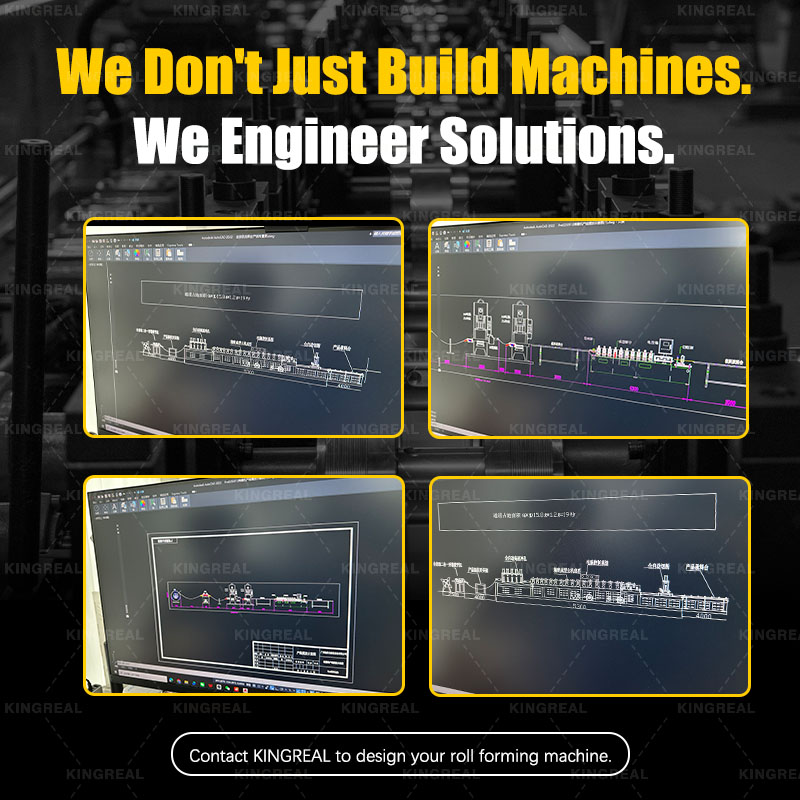

During the design phase, KINGREAL utilizes a comprehensive visualization system. This allows the KINGREAL to provide clients with precise roll flower patterns, dynamic animations of equipment operation, and multi-dimensional 3D models, enabling clients to gain an intuitive understanding of the equipment structure, forming principles, and production workflow.
Leveraging years of industry R&D experience, the team possesses mature cold-roll forming design technology and ODM customization capabilities.
We are able to overcome forming challenges associated with various specialized octagonal tube profiles, ensuring rational equipment design, precise forming, and efficient operation.
KINGREAL Manufacturing Capabilities

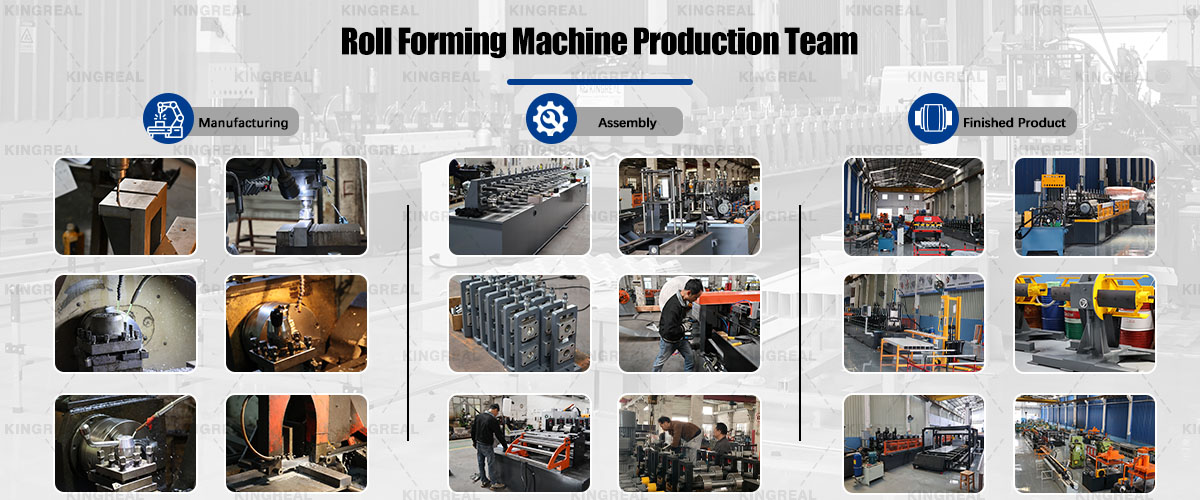

In the manufacturing of octagonal tube forming machines and complete rolling shutter door production lines, KINGREAL has established rigorous, standardized production processes to control equipment quality from the very source.
Raw materials undergo a multi-stage screening process, prioritizing high-strength, wear-resistant, and corrosion-resistant premium steel and core components to ensure stability and longevity. Throughout the entire production cycle—including component machining, assembly, and welding—a dedicated quality inspection team conducts continuous supervision and spot checks. They strictly control every technical detail to eliminate defects and guarantee the precision of components and adherence to delivery schedules.
Following final assembly, the KINGREAL factory conducts extensive testing, including no-load commissioning, load testing, precision calibration, and stability checks.
This comprehensive process identifies and resolves potential operational issues, ensuring that every machine delivers stable performance, precise forming, and smooth automated operation.
Furthermore, KINGREAL core production team boasts over a decade of experience in roll forming machine manufacturing; their mature craftsmanship and solid technical expertise allow for precise control over the production of customized equipment, guaranteeing superior quality for every octagonal tube forming machine that leaves the factory.
