U Baffle Ceiling Roll Forming Machine

200mm U Baffle False Ceiling Making Machine

Machine Name: Full-Automatic 200mm U Baffle Ceiling Making Machine
Products Name: U-Shape Metal Baffles
U baffle ceiling sizes: Max height: 200mm, Max width: 200mm
Automation: Manual Operation/Full-Automatic Production with PLC
Certificate: CE certificate, ISO 9001 certificate
Machine Power: 380V 50HZ or according with customers‘ request
Speed: 0~35m/min, Hydraulic Follow Shearing System
Main Features: Equipped with air cooling system, Famous brand hydraulic system, light curtain safety protection

  • Video About U Baffle Ceiling Roll Forming Machine
                                                                          --------------------------------


    Description Of 200mm U Baffle Ceiling Roll Forming Machine:

    KINGREAL 200MM U Baffle Ceiling Roll Forming Machine contains our most advanced technology, it was specially developed for high-end customers like Hunter Douglas group. This machine can produce up to 200mm height and 1.2mm thickness U-shape baffles.




    The machine is computer-controlled, thanks to our excellent servo system, width and height of U-baffles are adjustable, only need to input specifications into operating system, then machine will react accordingly.



    Structure of U Baffle roll forming Machine:

    -     - Hydraulic decoiler
    Precision leveler

    Main roll forming machine

    Follow shearing station

    Output table.

    Electrical & Hydraulic system



    Featurers Of Baffle Ceiling Making Machine




    Hydraulic decoiler

    To respond to changing demands, we have hydraulic decoiler and manual decoiler with integrated hydraulic core expansion system.

           For more, there is optional trolley for full-automatic metal loading.

    High Speed follow Shearing System

    We use high speed follow shearing system to guarantee non-stop working of the whole production line. Usually powered by high-precision servo feeder, linked with planetary reducer, our high speed follow shearing system drives cutter via synchronous belt to cut. The hydraulic part of cutter is pressurised to ensure quick action and reset.

     The KINGREAL high speed follow shearing system has the characteristics of high speed, high precision and automation. It is the BEST choice of high-speed automation solutions.

    Unique Hollow Out Rollers Design

    specially developed and manufactured hollow rollers to reduce the problem of indentation caused by weight of the rollers. This technology is particularly suitable for machines that produce above 200mm U baffles.



     ADVANTAGES OF THIS MACHINE :

    STRICT MACHINE QUALITY CONTROL SYSTEM

    Our company has a strict machine quality control system to inspect different components. For instance, we will do detailed measurement and inspection for each forming roller ——the key component of a roll forming machine, and deflection test after installation.

    All sort of methods would be taken to ensure accuracy of machines and finished products.

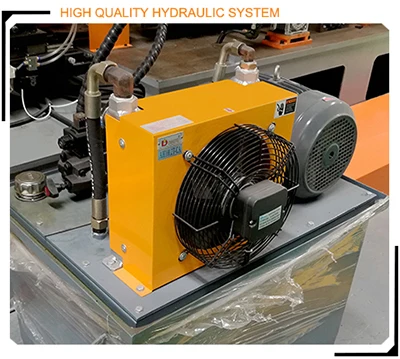

    High quality Hydraulic System

    The hydraulic parts use high efficiency energy storage type hydraulic system. And it adopts Taiwan or Germany hydraulic components. It can be used for the high-speed punching and shearing of different roll formed products.

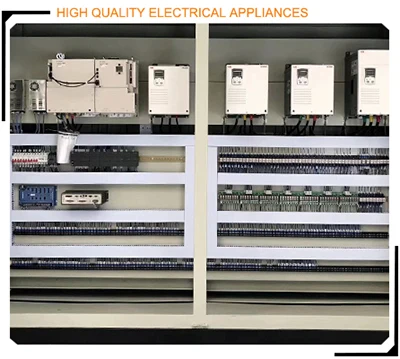

    HIGH QUALITY ELECTRICAL APPLIANCES

    We use high-quality imported electrical appliances, such as Japanese Yaskawa NC servo feeder, PLC from FATEK, MCGS touch screens, which can ensure stable and continuous work of our machines.



    ------------------------------------------------------ How To Transport The U Baffle Making Machine--------------------------------------------





    ------------------------------------------------------ Who Are We?--------------------------------------------


    KINGREAL Machinery is a professional sheet metal processing machines manufacturer and supplier. We offer full automatic and high speed solutions mainly including roll forming machines, metal ceiling tile machines, metal perforation line, coil slitting lines, etc.

    KINGREAL had helped our clients to build their factories successfully all over the world, such as Russia, Middle East, South Asia, South America, etc.
