KINGREAL has tailored the quick change cassette design for various roll forming machines, allowing a single roll forming machine to quickly change modules to process multiple finished metal profiles with different cross-sections and specifications. This significantly upgrades the overall adaptability of the roll forming machine and solves the problem of producing multiple profile types.

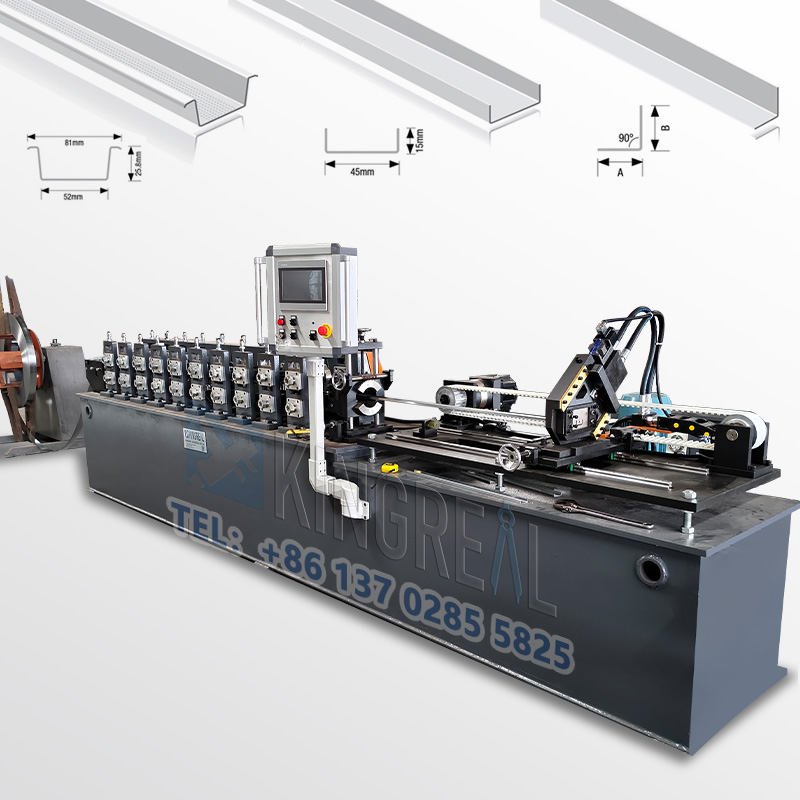

Among them, KINGREAL quick change cassette design has been perfectly implemented and widely applied in false ceiling channel machines. Traditional metal ceiling channel machines can only produce one type of profile, requiring companies to purchase multiple roll forming machines to cover the production needs of hat channels, u channels, and wall angles, resulting in extremely high equipment investment costs. KINGREAL false ceiling channel machines equipped with the quick change cassette design do not require modifications to the main machine body, transmission structure, or electrical control system.
Simply changing the matching cassette allows for flexible switching of production processes, quickly completing the mass production of hat channels, u channels, and wall angles.
Working Principle of Roll Forming Machine’s Quick Change

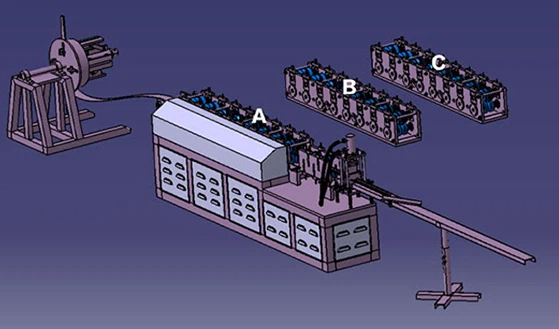

Cassette design is based on the standardized, independent roll forming module interchangeability design. It abandons the traditional separate installation and adjustment structure of rollers, integrating the entire forming and processing structure for a single profile into an independent cassette module. By quickly interchangeing different models of standardized cassette modules (A, B, and C), the roll forming machine can produce profiles of different cross-sections and specifications.
If a company subsequently expands its production capacity for new profile types, it does not need to modify the main roll forming machine; it can simply customize new standardized cassette modules as needed to complete the expansion, demonstrating extremely high equipment iteration flexibility.
From a hardware structure perspective, the roll forming machine's matching cassette module is an integrated structure, comprising three core structures: a high-precision forming roller shaft, an integrated workstation support, and a load-bearing positioning base. All parameters, including roller spacing, bending angle, and coaxiality, are calibrated before leaving the factory, achieving integrated pre-fabrication and commissioning of the module. The molding machine's mold-changing operation is extremely simple. Operators only need to use hoisting equipment to lift the target cassette module onto the roll forming machine's dedicated support platform, align it with the positioning slots, insert the original positioning pins to lock it in place, simultaneously replace the matching cutting mold for the profile, and finally retrieve the corresponding profile's preset production program on the roll forming machine's touchscreen control panel. Production can be completed with a single button press, without disassembling the roll forming machine's main transmission or frame structure.
Advantages of Quick Change Cassette Design in Roll Forming Machine
1
Elimination of Repeated Adjustments
KINGREAL roll forming machines quick change cassettes are factory-calibrated for precision. After module replacement and installation, the roll forming machine eliminates the need for complex adjustments such as roller alignment, curvature calibration, and dimensional fine-tuning, perfectly solving the problem of a shortage of professional equipment adjustment technicians in small and medium-sized processing plants.
It also avoids the problems of raw material trial cutting and dimensional scrapping during the repeated adjustments of traditional roll forming machines, significantly saving steel raw materials wasted during the adjustment phase, shortening the roll forming machine's production preparation cycle, and achieving a triple reduction in labor, material, and time costs.
2
Multi-functionality
Equipped with quick change cassette design, the multi-functional roll forming machine, relying on interchangeable cassettes, allows a single roll forming machine to handle the processing of profiles of various specifications and cross-sections.
Enterprises only need to purchase one main roll forming machine and multiple matching cassettes to replace multiple dedicated roll forming machines, significantly reducing fixed asset investment. For multi-specification mixed production scenarios, the module replacement solution is the optimal equipment selection option.
3
Optimized Factory Space Layout
KINGREAL quick change cassette design for roll forming machine utilizes an integrated main unit and separate module layout. The main unit occupies a fixed area, while spare cassettes can be stacked and stored, eliminating the need for multiple additional roll forming machine bodies.
This significantly reduces the overall factory space occupied by the roll forming machine, optimizes workshop production lines, and is suitable for the site planning requirements of small and medium-sized factories and standardized industrial parks.
Compared to the traditional roll forming machine's method of disassembling rolls and disassembling and adjusting molds station by station, the roll forming machine equipped with quick change cassette design achieves a leap forward in mold change efficiency. Conventional roll forming machines require several hours for changing production profiles and adjusting roll dies, involving overall mold change, calibration, and trial production.
During this time, the entire roll forming machine is shut down, resulting in significant production interruptions and capacity losses. However, roll forming machines equipped with quick-change cassettes reduce this time to less than 15 minutes, drastically minimizing downtime. This design precisely meets the production needs of manufacturing companies in building materials, hardware, and warehousing profiles that require high production flexibility and customized production of multiple profile types. It optimizes the roll forming machine's production scheduling system and improves overall workshop production efficiency.
KINGREAL focuses on the actual production pain points of roll forming machines and customer implementation needs. In addition to the core innovative design of the quick change cassette, KINGREAL has completed multiple supporting optimizations and upgrades to the roll forming machine's transmission structure, electrical control system, cutting system, and noise reduction structure, comprehensively meeting the mass production, customization, and flexible production project needs of profile processing companies.
