Corrugated Roof Sheet Forming Machine

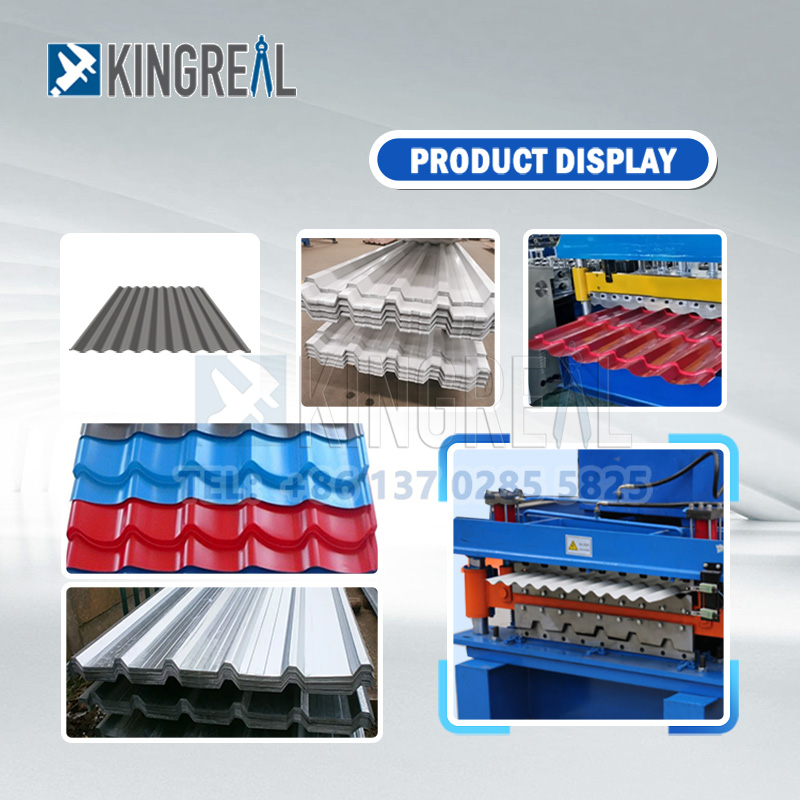

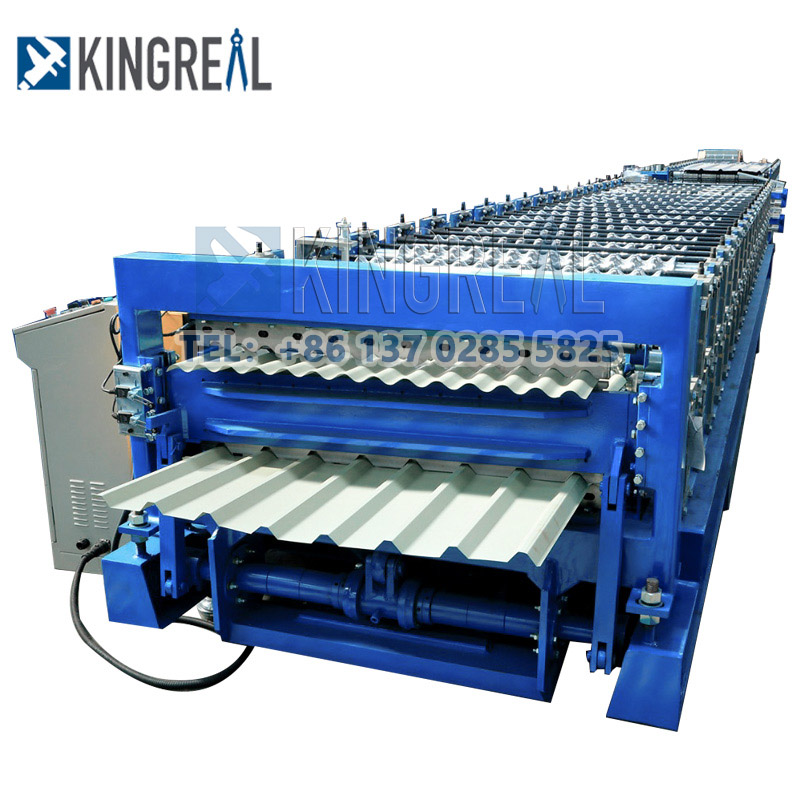

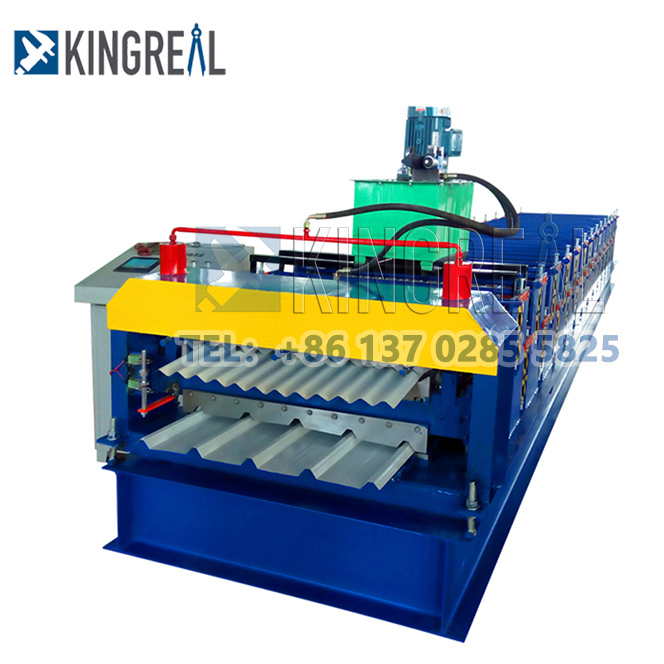

KINGREAL corrugated roof tile making machine is a specialized in the production and manufacture of corrugated roof tiles, using advanced technology and automation systems to efficiently produce high quality corrugated tile products. This corrugated roof tile making machine is a fully automatic production line for the roof corrugated roof panels. The machine includes Decoiler, straightener, servo feeder, punch press, cable tray cover main roll forming machine, shearing machine, automatic control system.

- Decoiler

- Feeding Machine

- Main Roll forming Machine

- Hydraulic Cutting Station

- Out Put Table

1. Stable: The Corrugated Roof Tile Making Machine has a sturdy structure and is made of high quality materials to ensure its stability and durability. Adopting advanced control system, it is capable of precise operation and adjustment to ensure the production of corrugated tiles in accordance with the specifications.

2. High efficiency: Equipped with efficient production line, it can produce corrugated tiles quickly and continuously to improve  corrugated roof tile production efficiency.

3. High degree of automation: Equipped with automation function, capable of automatically completing the process steps of cutting, molding, coating and stacking of shingles, reducing manual operation and improving production efficiency.

4.Flexible production: With adjustable production capacity, capable of expanding or reducing the production line according to the demand, in order to meet the production demand of different scales.

KINGREAL provides fully automated packaging solutions for customers' metal roof making machines, aiming to significantly improve production efficiency. This configuration not only optimizes the production process, but also effectively reduces the time and labor costs in operation.

The fully automated packaging machine can quickly and accurately pack the finished metal roof tiles after the corrugated roof sheet making machine is completed. Compared with the traditional manual baling method, the automated packaging unit has obvious advantages in speed and consistency. It can complete a large number of packaging tasks in a short time, reducing the instability and human errors caused by manual operation, thereby ensuring the consistent packaging quality of each batch of products.

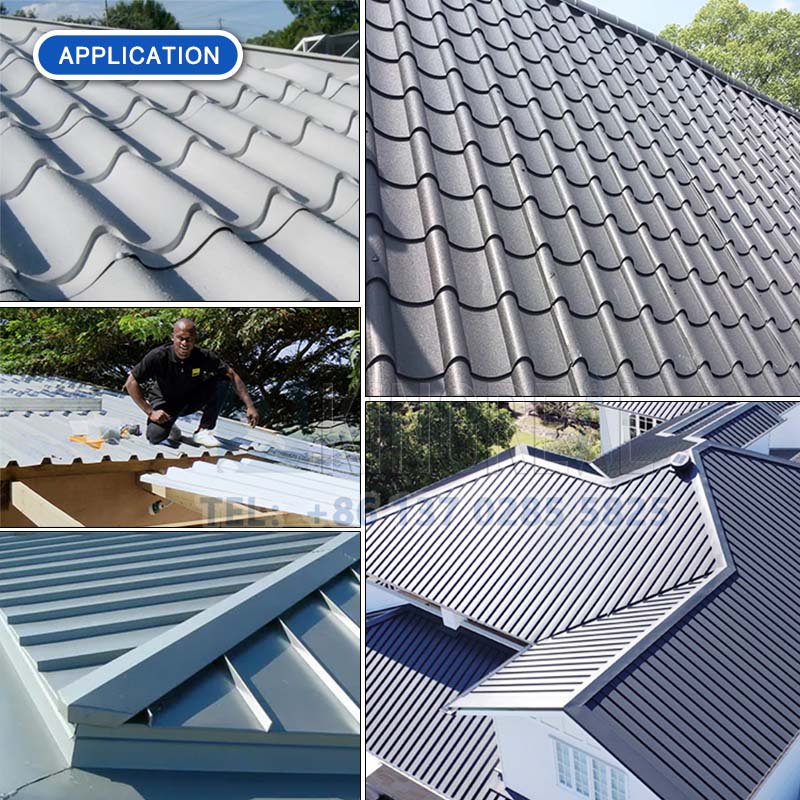

Corrugated roof tiles offer several notable features that make them a popular choice for roofing:

1.Light in Weight: They are relatively light, weighing between 6–14 kg/m², which is about 1/30th the weight of a brick wall

2.Excellent Corrosion Resistance: Made of color-coated steel, these tiles provide superior corrosion resistance and can last more than 30 years.

3.High Strength: Corrugated roof tiles are known for their high strength and resistance to damage or tearing.
4.Widely used: corrugated roofing is versatile and can be adapted to fit any roof size or shape due to its wave-like design. It’s also designed to withstand harsh weather conditions like high winds, heavy rains, or hail. When installed on a slope, corrugated metal roofing systems are particularly effective at shedding water quickly.

KINGREAL boasts a highly experienced technical R&D team dedicated to providing customized technical support and comprehensive solutions for corrugated roof sheet machine.

1) Comprehensive Technical Service Capabilities:

KINGREAL team offers services ranging from factory-wide production line layout planning to end-to-end installation support. With robust ODM capabilities, the team delivers technical outputs such as structural design for roll forming and 3D modeling.

2) Backed by Extensive Design Expertise:

KINGREAL technical personnel possess over a decade of experience in corrugated roof sheet machine design and R&D. They precisely customize machine models to suit specific operational conditions, taking into account parameters such as raw material type and thickness, production capacity targets, and finished product specifications.

3) Continuous Iteration and Optimization:

Staying abreast of industry trends and market dynamics, KINGREAL team continuously refines and optimizes machine structures, performance, and manufacturing processes based on customers' unique production needs, ensuring the corrugated roof sheet machine remains both highly adaptable and state-of-the-art.

1. Share Your Needs

The client provides production targets, product specifications, and site constraints; the KINGREAL team comprehensively analyzes these requirements to determine the customization direction for the entire production line.

             ↓

2. Custom Layout Design

Based on client requirements, KINGREAL engineers create customized design drawings covering equipment layout, structural configuration, and electrical control systems.

             ↓

3. Precision Manufacturing

KINGREAL utilizes high-standard raw materials and precision machining processes, strictly controlling manufacturing tolerances and assembly quality for every component.

             ↓

4. Full Line Test Run

Following assembly, the complete system undergoes both no-load and material-loaded test runs to verify operational stability, precision, and production efficiency.

             ↓

5. On-Site Installation by Engineers

KINGREAL professional engineers travel to the client's facility to handle on-site positioning, wiring, commissioning, and operator training, ensuring a smooth start to production.

Brand:KINGREAL

Product origin:China
