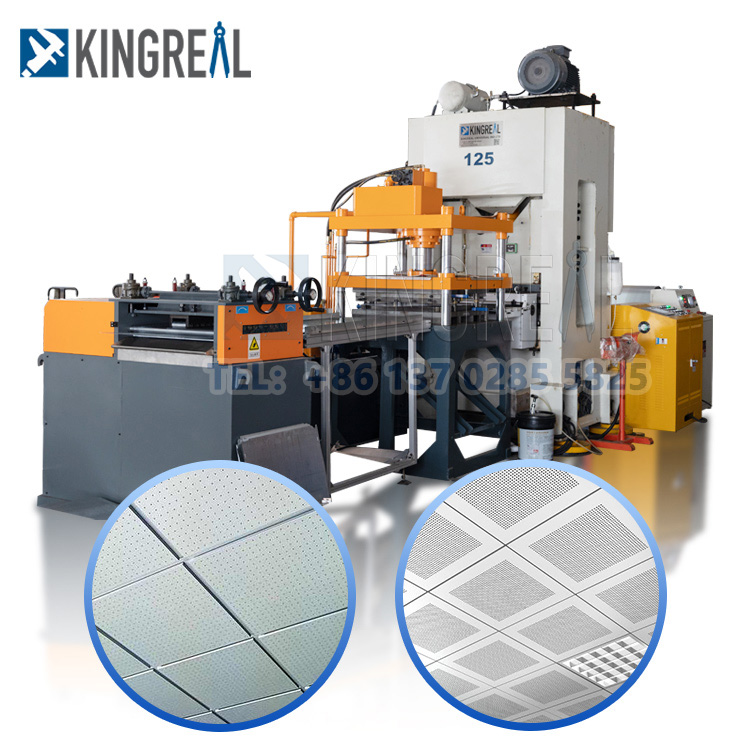

Full Automatic Metal Ceiling Perforation Production Line Description

KINGREAL Metal Ceiling Tile Perforation Line is one of the most distinctive lines designed to produce high-precision metal perforated ceilings with common hole diameters of 1.0MM/1.8MM and 2.5MM. KINGREAL‘s high-speed gantry punching machines have been widely praised by our customers for increasing the speed of ceiling punching production. At present, KINGREAL has been used to independently design punching mold professional ability, according to the customer actual production needs of customized punching drawings for the design and production of punching molds.

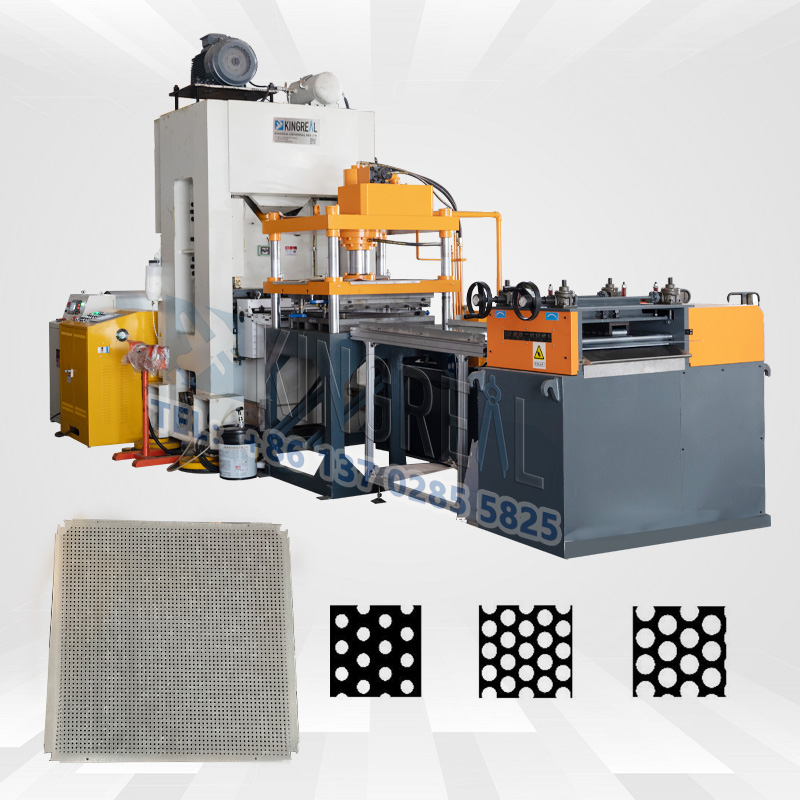

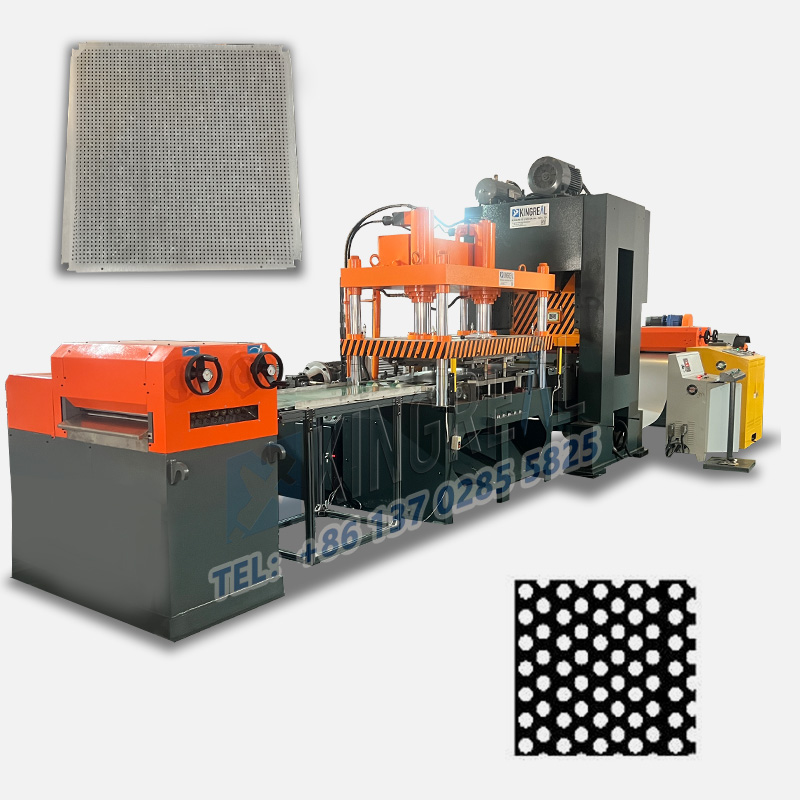

aluminium ceiling tiles machine

KINGREAL Metal Ceiling Perforated Making Machine adopts automatic material input, first flattening, holes punching, corner cutting, servo feeding, cutting to length, conveyor, second flatting, sheet washing, automatic turning and positioning, final bending forming. Customers can match the production equipment according to their own production needs, to provide fully automatic and semi-automatic two mature solutions.

Technical Specification Of Ceiling Perforated Machine

Sizes of material	600*600mm
Thickness of material	0.3-0.4 mm (GI Steel) \| 0.5-0.6 mm (Aluminum)
Inner Diameter	Φ 500
Outer diameter	Φ 1200
Maximum load	5 tons
Width of material	＜700 mm

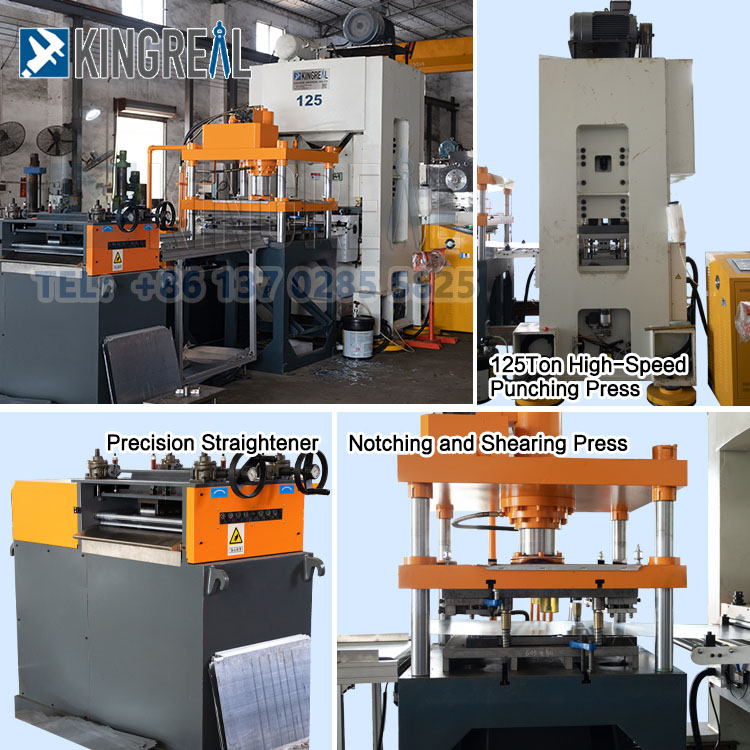

Detail Of High Speed Metal Ceiling Tile Production Line

According to the perforation speed, it would be about 16-18PCS for the half perforation line. After this production line, we need two bending forming oil press machine to catch speed of perforation line.

The ceiling tile production line will be distributed on two different conveyers and turn the ceiling tiles automatically, the feed to the bending machine machine by manipulator, at the same time, the finsihed products will be taken out from the bending forming machine.

KINGREAL can provide the high quality oil press machine for produce the perforation ceiling tiles. Hydraulic oil press is used for cutting the corner and bending forming the ceiling plates.

Full automatic high speed ceiling tile making machine is for producing and manufacture the metal false ceiling tiles. Right now most metal false ceiling manufacturers use semi-auto or manual production lines to produce all kinds of ceiling sheet.

This is auto turn device for the ceiling sheet. Usually after perforation, there will be some spurs on the surface, to make the final productts higher quality we need to turn the panels automatically.

High Precision Perforated Ceiling Tile

KINGREAL metal ceiling perforation line can ensure that every hole meets strict specifications. In addition, the ceiling tile perforation machine maintains a high degree of consistency between holes, ensuring that under the same punching parameters, perfect hole spacing and hole diameter can always be achieved, ensuring that each batch of products can meet the high standards of customers.

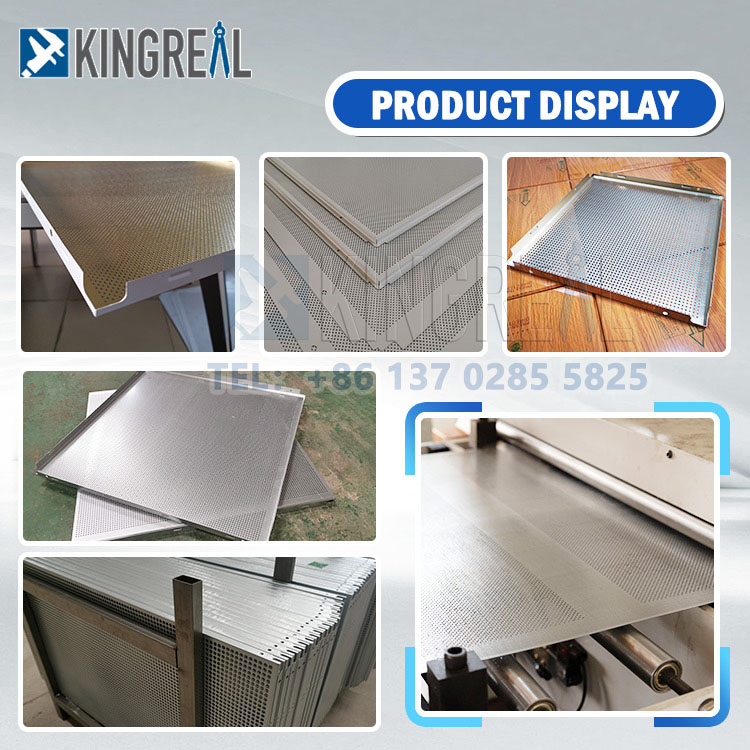

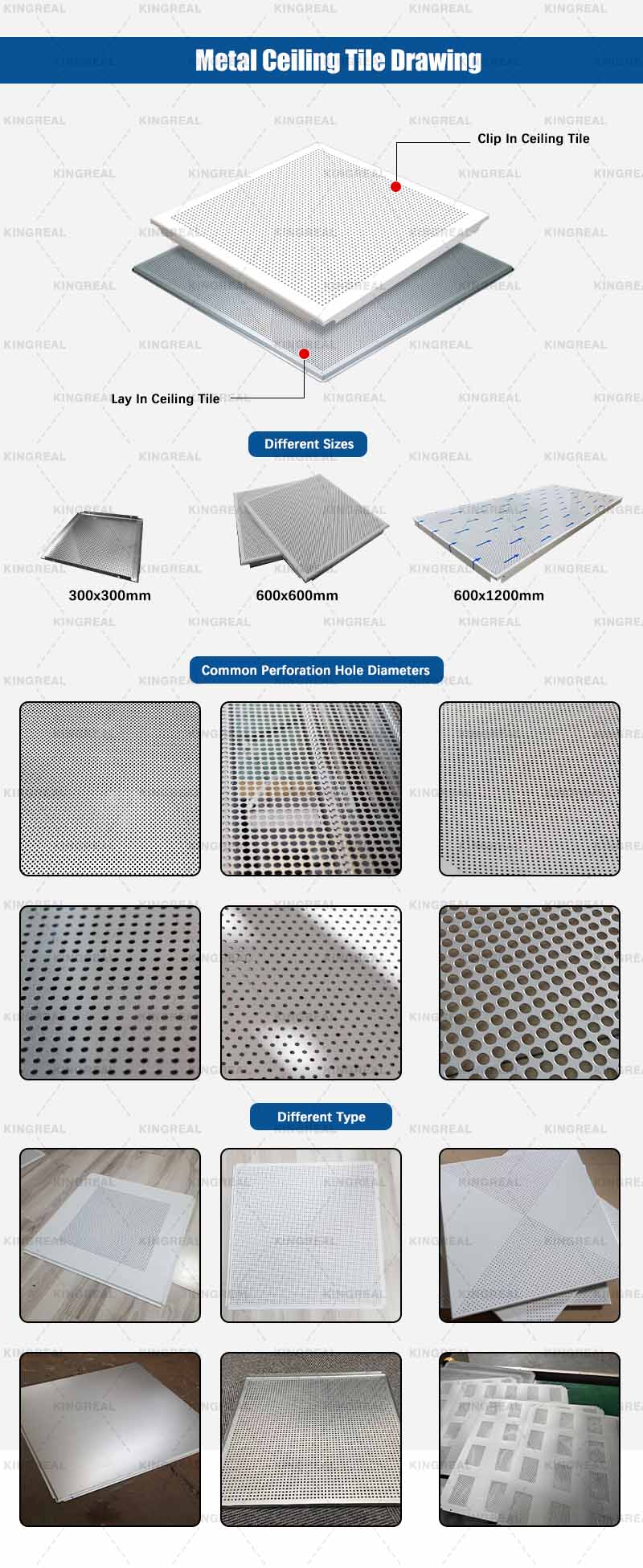

Final Product Of Metal Ceiling Tile

perforated ceiling tile machine

KINGREAL perforated metal ceiling tile machine has the following features:

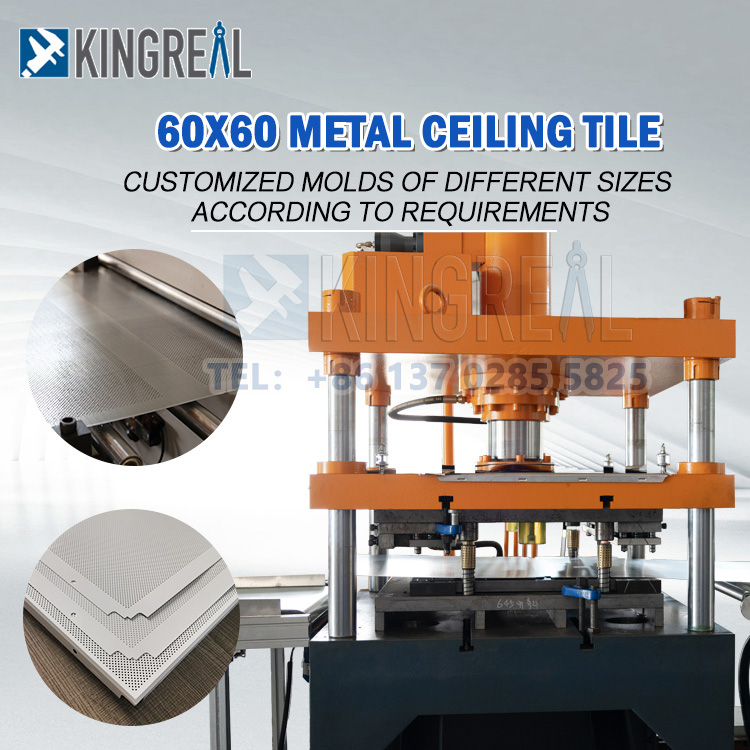

● can produce perforated metal ceiling tiles of different sizes, including 30x30cm, 60x60cm, 60x120cm, etc.

● can produce different types of ceiling panels, such as clip in, lay in, tegular, etc.

● can punch out perforated metal ceilings with different hole types or hole diameters.

Different Perforated Ceiling Tile Production Line


160 ton punch press	125 ton punch press

KINGREAL is committed to providing customers with two different tonnage ceiling tile perforation machines to meet their different production needs.

At the project start-up stage, KINGREAL's engineers will communicate closely with customers to gain an in-depth understanding of their drawings and actual production requirements. This includes asking about key parameters such as production scale, required punching speed, daily production time, and required punching area. Based on this information, the KINGREAL team will tailor a set of efficient perforated metal ceiling tile machine manufacturing solutions for customers to ensure that each project can achieve the best production efficiency and product quality.

Applications of Metal Ceiling Tile Perforation Line

The perforated ceiling panels produced by KINGREAL metal ceiling tile perforation lines utilize aluminum alloy as the base material, offering a combination of aesthetic appeal, sound absorption, fire resistance, durability, and ease of installation through their perforation designs.

A wide range of perforation patterns—including round, square, elongated, and mixed configurations—enhances both visual aesthetics and acoustic performance.

These perforated ceiling panels feature sound absorption and noise reduction capabilities, fire and moisture resistance, and ease of cleaning and maintenance; they are widely used in commercial spaces and public buildings, effectively combining decorative and functional roles.

Complete Metal Ceiling System Solution

Besides metal ceiling tile perforation lines, KINGREAL can also equip A-Type carrier roll forming machine,triangular light keel machine, ceiling t bar machine, metal bracket production lines and other equipment according to customers’ actual project requirements.

All machines work in coordination. The perforated ceiling panels and profiles manufactured by these equipment can be spliced and assembled to build a complete metal ceiling system.

Successful Projects: Metal Ceiling Tile Perforation Line

To date, KINGREAL metal ceiling tile perforation line has been sold to numerous countries, including Saudi Arabia, Russia, Turkmenistan, the UAE, Greece, India, Italy, the Dominican Republic, Ukraine, and Sri Lanka.

KINGREAL provides these clients not only with high-quality metal ceiling tile perforation line but also with comprehensive support covering the pre-sales, in-sales, and post-sales stages.

Upon the metal ceiling tile perforation line's arrival at the client's factory, KINGREAL engineers travel to the site to handle installation and provide operational training. If any issues arise during the client's day-to-day production, the KINGREAL team responds promptly to provide maintenance and troubleshooting services.

KINGREAL Professional Team

KINGREAL has a professional team to deliver comprehensive support for customers. During the metal ceiling tile perforation line design phase, we are capable of 3D drawing design and can provide 3D animation of the equipment to verify the design scheme intuitively.

In accordance with laws and regulations of the customer’s region, we can apply for international authoritative certifications including CE, CSA and CUL to meet local access standards. Our sound certification system helps avoid risks during customs clearance and commissioning, ensuring safe, compliant and stable production after installation.

Furthermore, KINGREAL offers global services. No matter where customers are located, we provide combined online and offline support solutions.
