Triangle Tee Roll Forming Machine

  • KINGREAL
  • China
KINGREAL can provide the triangle tee roll forming machine ( also called spring tee roll forming machine), which is design for carrier the suspended clip-in metal ceiling tile and other construction of frames and support structures for large buildings.

Video Display



Description Of Triangle Tee Roll Forming Machine

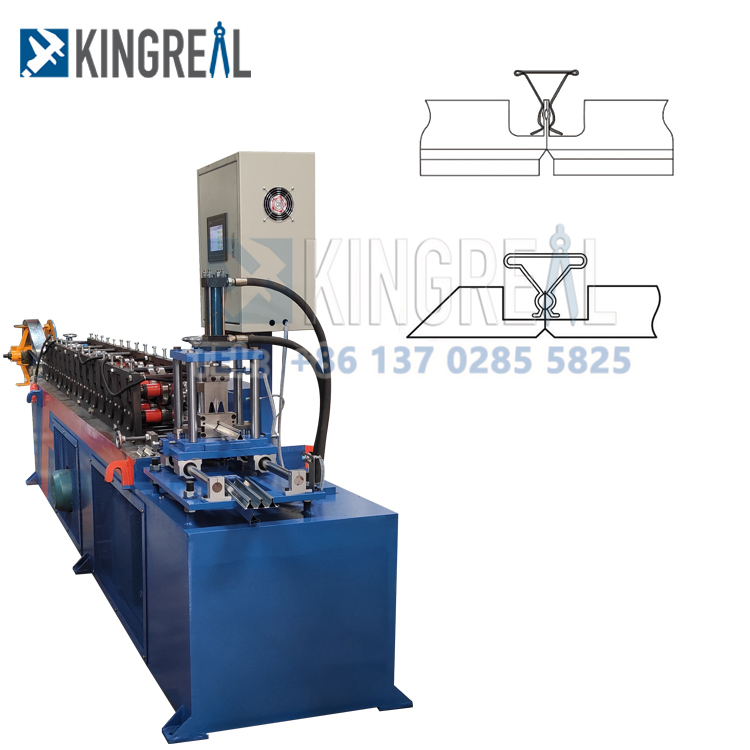

KINGREAL Triangle Tee Roll Forming Machine is one of the most popular type of carriers for Clip-in Metal Ceiling Tiles. This spring tee production line is featured with precision roll forming and high-speed follow shearing.  The Spring Tee Making Machine is compatible with stainless steel or galvanized steel as raw material. It can produce carriers for different sizes of metal ceiling tiles such as 300x300mm, 300x600mm, 450x450mm, 600x600mm etc. With metal ceiling tiles production line, these 2 machines can manufacture a complete metal ceiling tiles system.


KINGREAL use quality servo motor from famous brand YASKAWA to build our hydraulic follow shearing station, which provides an unbelivable of 100m/min production speed maximum. All specifications can be easily set in the touch screen operating system with multilingual support. Instructions from operator will be transformed by quality PLC control system to let rollers act accordingly.

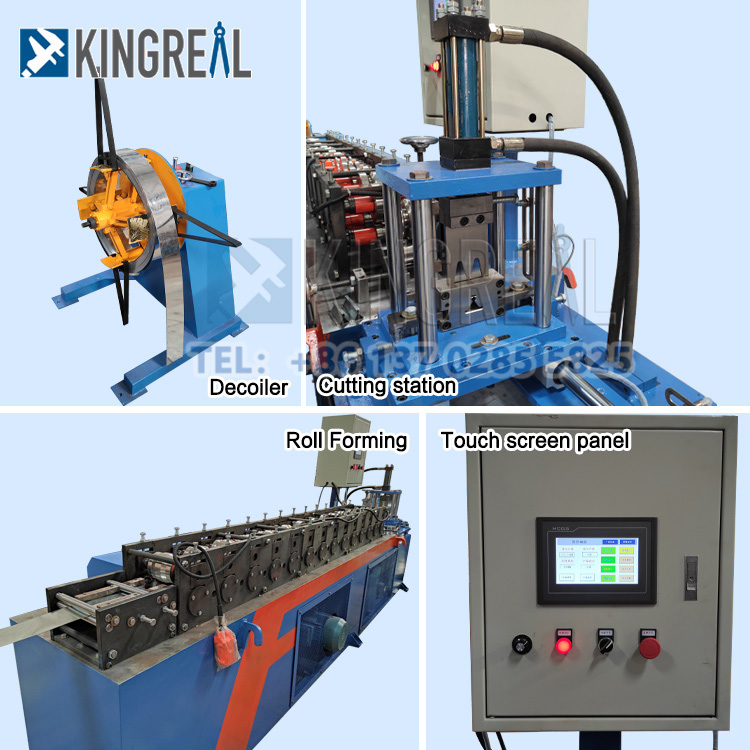

Main Components Of Triangle Tee Production Line






- Decoiler

- Main roll forming machine
- Hydraulic follow shearing station
- Electrical control system


false ceiling carrier machine


Feature Of Spring Tee Roll Forming Machine



High Precision Cr12MoV forming rollers


Cr12mov mold steel, heat treatment hardness up to HRC 580-600. Which is processed by CNC machine.


metal ceiling carrier machine

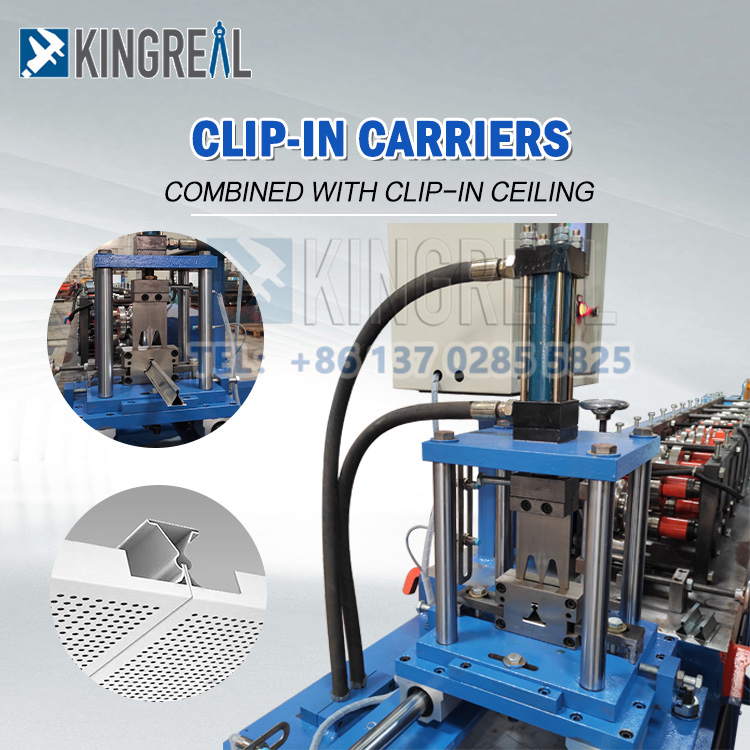

High Speed follow Shearing System


KINGREAL use high speed follow shearing system to guarantee non-stop working of the whole production line. Usually powered by high-precision servo feeder, linked with planetary reducer, our high speed follow shearing system drives cutter via synchronous belt to cut. The hydraulic part of cutter is pressurised to ensure quick action and reset.


The KINGREAL high speed follow shearing system has the characteristics of high speed, high precision and automation. It is the BEST choice of high-speed automation solutions.


ceiling triangular grid machine



High Quality Electrical Appliances


KINGREAL use high-quality imported electrical appliances, such as Japanese Yaskawa NC servo feeder, PLC from FATEK, MCGS touch screens, which can ensure stable and continuous work of our machines.


false ceiling carrier machine


Clip In Ceiling Tile Production Line


metal ceiling carrier machine

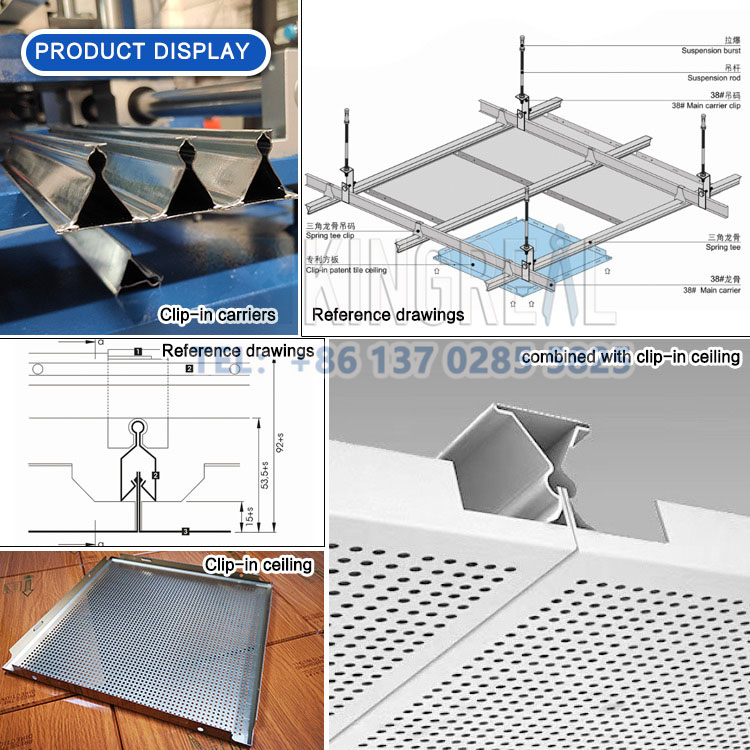

KINGREAL can manufacture Clip In Ceiling Tile Production Line, which usually consists of decoiler, levelers, feeders, punch presses, hydraulic press bending forming machine and other components. The Clip In Ceiling Tile products are usually installed with Triangle Tee ( Spring Tee Carrier) to form a complete False Ceiling System. Metal Ceiling Tile Production Line and Triangle Tee Roll Forming Machine are the most common machines used in the building materials industry, and KINGREAL can customize them to meet the needs of our customers.


Clip In Ceiling System



ceiling triangular grid machine


KINGREAL Technical Team





KINGREAL boasts a professional technical team with extensive experience in the spring tee roll forming machine industry. The team manages the entire process—from translating design drawings into reality and manufacturing components to assembling the complete machine and conducting multi-stage pre-delivery testing.


From raw material selection and the machining of critical components to final assembly, integration, and rigorous no-load and load testing, KINGREAL technical team pursues excellence at every stage of production.


Adhering strictly to international manufacturing standards, the team meticulously inspects operational details and fine-tunes parameters to ensure stable performance and reliable quality for every unit, delivering high-standard automated spring tee roll forming machine to clients worldwide.


KINGREAL can provide the triangle tee roll forming machine ( also called spring tee roll forming machine), which is design for carrier the suspended clip-in metal ceiling tile and other construction of frames and support structures for large buildings.
