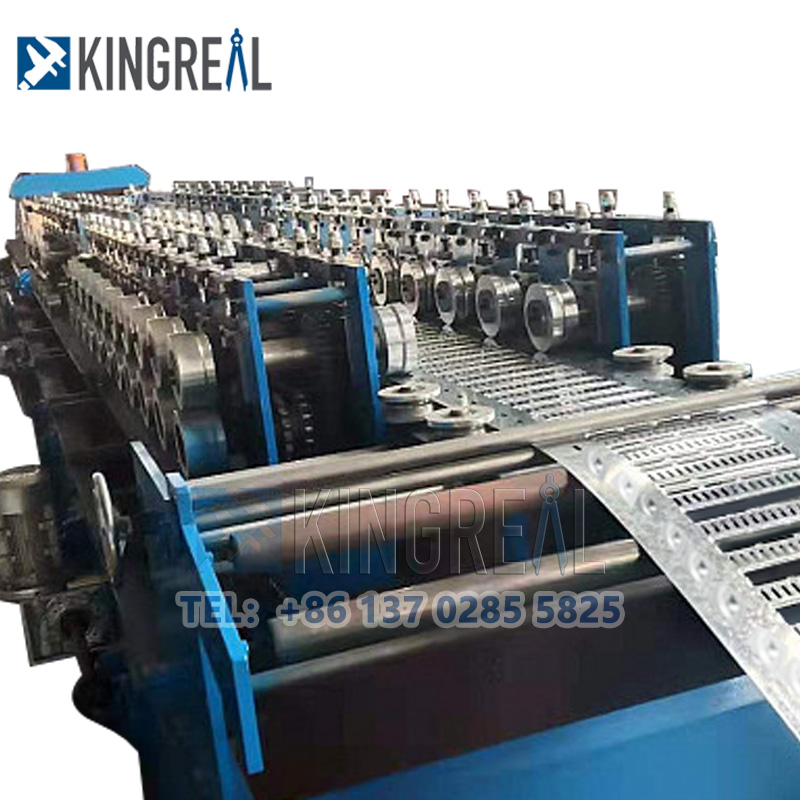

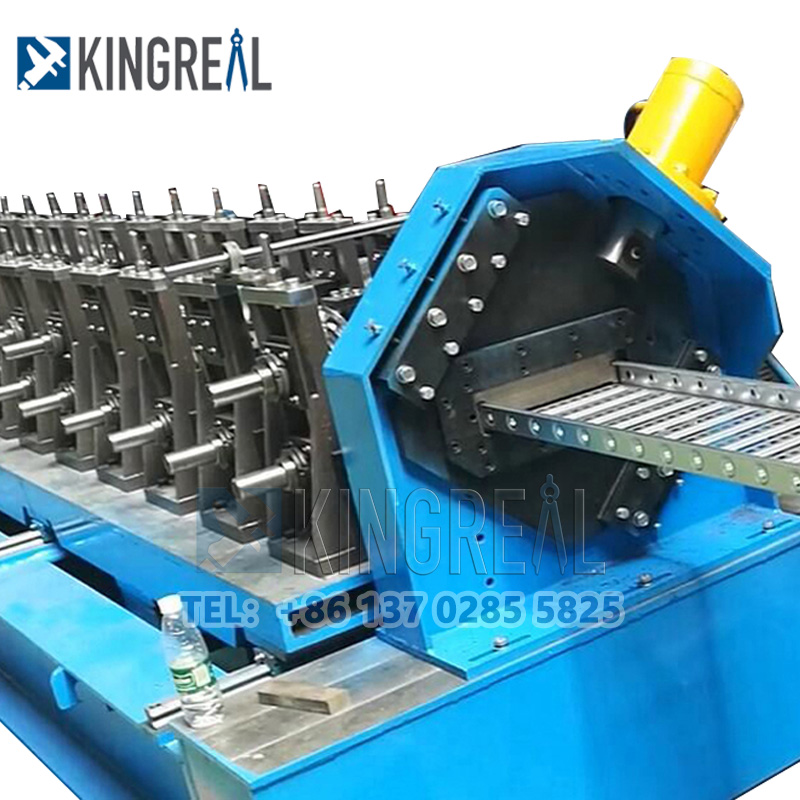

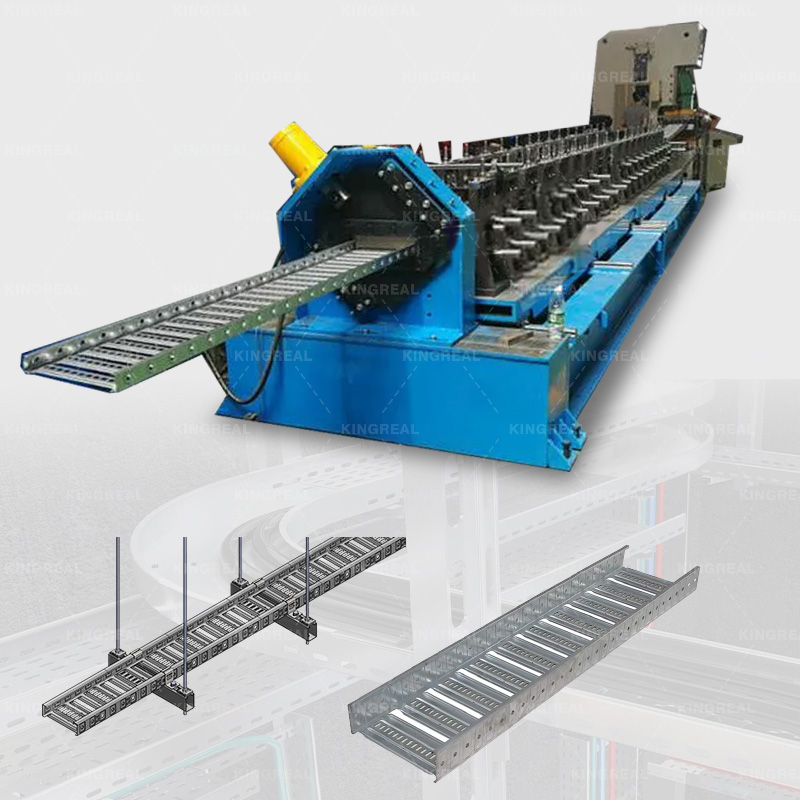

Cable Tray Ladder Roll Forming Machine

Cable Tray Ladder Production Line can produce ladder-side bridges with four specifications of 100, 150, 200, and 250. The specifications of the ladder-side bridges produced can be adjusted freely by replacing the spacer sleeve of the roll.

This production line is a special equipment for the production of one-time forming the cable trays, with servo feeding and online punching; the main machine is a combination and adjustable form, without changing the rolls, one set of rolls can complete the rolling of any specifications of the bridge profiles.

1. High Speed Cable Tray Ladder Making Macine

- Production speed during online punching: 4-6m/min.

- Continuous molding speed of molding equipment: 10-15m/min.

2. Humanized Design
- According to production needs, a variety of cable trays with a strip width of 200-1050mm can be rolled.

- Board material thickness: 0.8-2.0mm.

- Material requirements: Q235, galvanized steel strip, etc.

- The production line is divided into automatic and manual operation modes, which can realize linkage and segmented operation.

Feeding → Feeding calibration import → Leveling → Punching → Roll forming → Computer cut to length → Finished product support

1. 10T hydraulic discharge rack, 1 towing trolley, 1 pair of flat scissors (front shear), 8 sets of beading sticks, 4 sets of punching dies, 1 set of forming host, 1 gear box, 1 electrical control system Sets, 2 1.5m finished product discharge stations

2. 1 set of PLC control box

3. 1 set of hydraulic pump station

4. Discharge table two

Perforated Cable Tray Machine,

Cable Ladder Roll Forming Machine,

Cable Tray Cover Forming Machine,

Trough Cable Tray Roll Forming Machine,

Solid Bottom Cable Tray Machine,

DIN Rail Channel Machine,

KINGREAL has passed ISO9000 certification and has the ability of ISO9000 quality system management. It has also passed the international CE certificate certification.

KINGREAL provides complete end‑to‑end one‑stop services that span pre‑sales, in‑sales and after‑sales phases.

Our service scope includes arranging factory tours for customers to evaluate machine performance, analyzing unique project demands to build custom manufacturing solutions, and completing production and commissioning within our in‑house workshop.

Once manufacturing is finalized, KINGREAL arranges customer inspection for the Cable Tray Ladder Machine, confirming that the equipment matches project requirements and consistently outputs qualified finished workpieces. Shipment will proceed upon customer’s formal approval.

After shipment is completed, KINGREAL delivers continuous project follow‑up and fast‑response technical assistance. The service portfolio covers on‑site installation, operator operation training, spare parts provision and routine equipment maintenance.

When full assembly of the Cable Tray Ladder Machine comes to an end, KINGREAL carries out strict internal pre‑commissioning work.

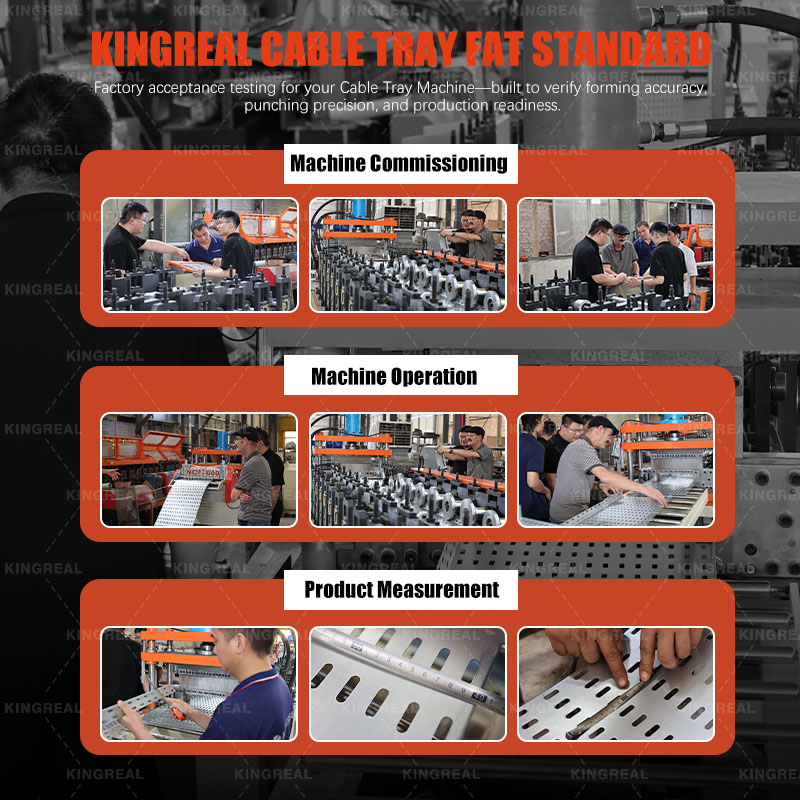

After passing all in‑plant test runs, customers are welcomed to our factory site for the official Factory Acceptance Test. KINGREAL’s proficient technical experts will stay on‑site for the entire process, executing every verification point in accordance with standardized acceptance protocols.

Key assessment items for the Cable Tray Ladder Machine are covered in this acceptance workflow, including surface finish and structural assemblies, equipment operational performance, seamless transition across different product specifications, plus dimensional accuracy checks for finished components. Real‑world manufacturing scenarios are fully simulated during testing, enabling customers to clearly observe equipment running conditions and the quality of finished products.

If any non‑conformities appear throughout acceptance activities, our technical experts will complete on‑site parameter fine‑tuning and component adjustments to ensure all performance indicators satisfy customer expectations. If issues cannot be resolved at the inspection location, the Cable Tray Ladder Machine will be returned to the factory for re‑optimization, reassembly and re‑commissioning until every performance standard is met.
