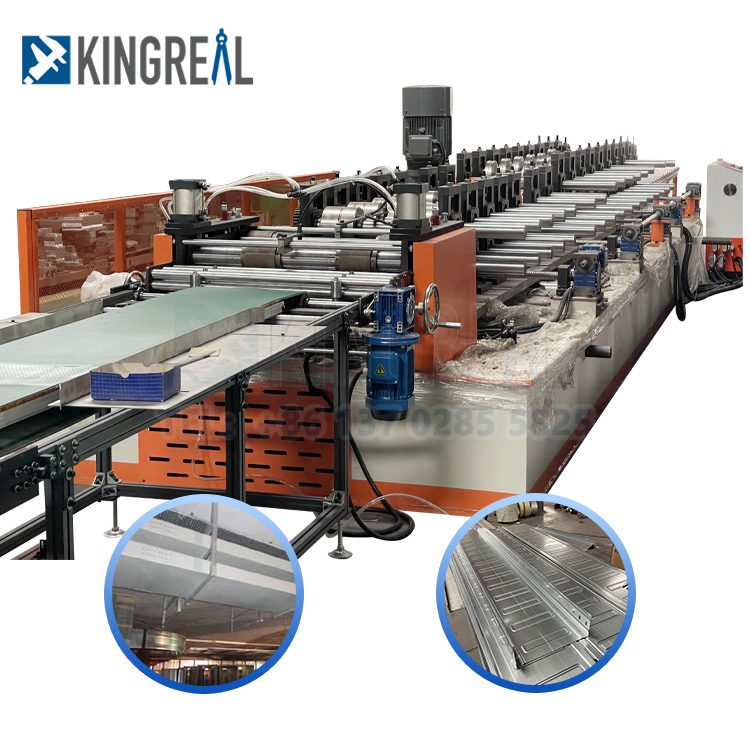

Cable Tray Roll Forming Machine Description

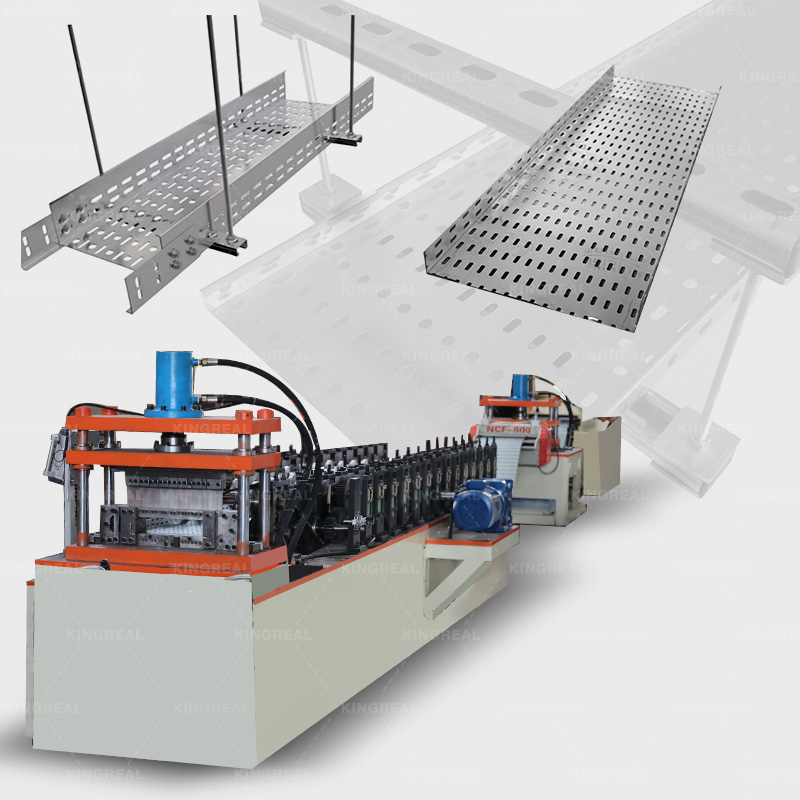

Cable Tray Roll Forming Machine is a kind of industrial equipment specially designed for manufacturing cable trays, through which raw materials (usually steel or aluminum plates) are processed into various shapes and sizes of cable trays by automated process. In the electrical wiring of buildings, a cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. |  |

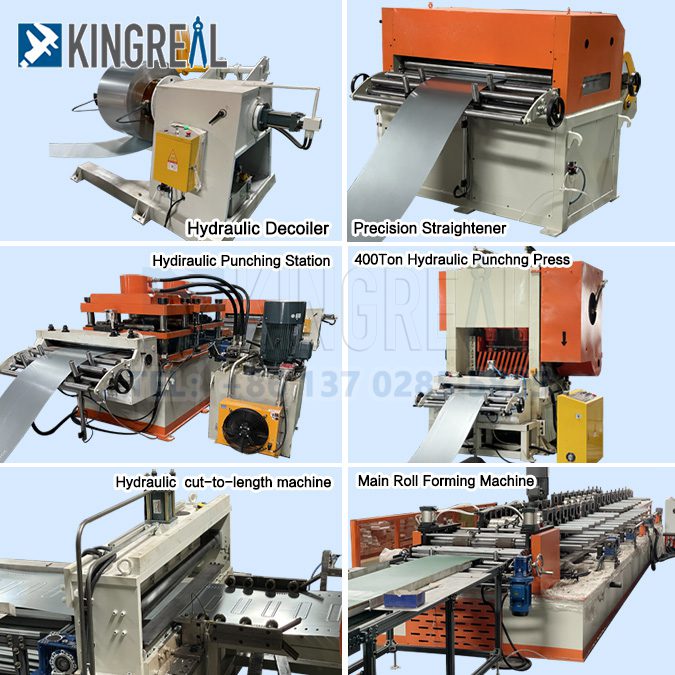

Main Components of Cable Tray Roll Forming Machine

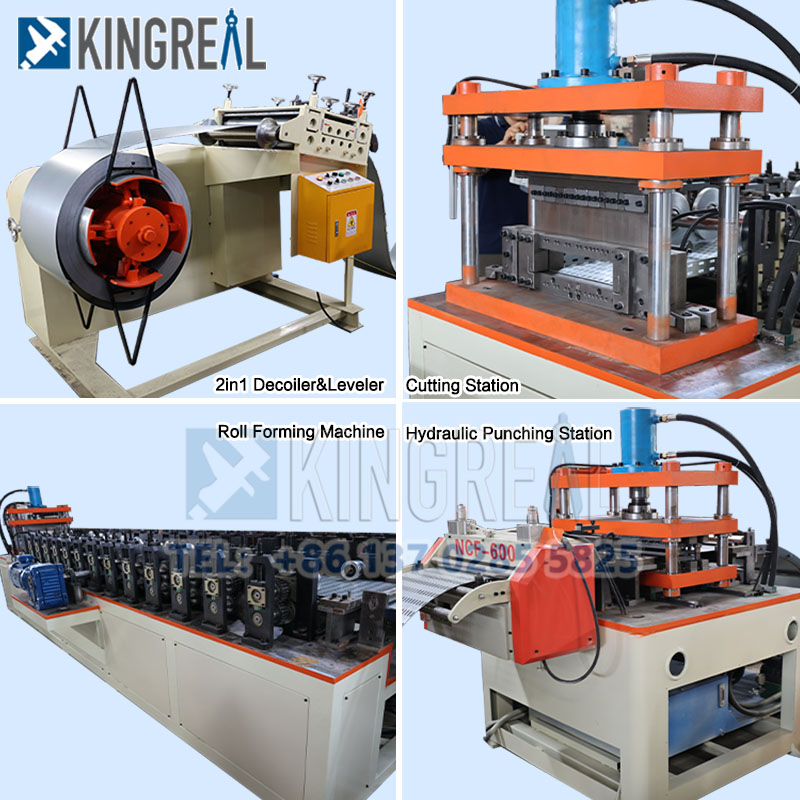

Hydraulic Decoiler, Precision Straightening Machine, Hydraulic Notching Station, High-Speed Punching Station, Servo Feeders, Main Roll Forming Machine and Products Output Table.
Common Size About Cable Tray System

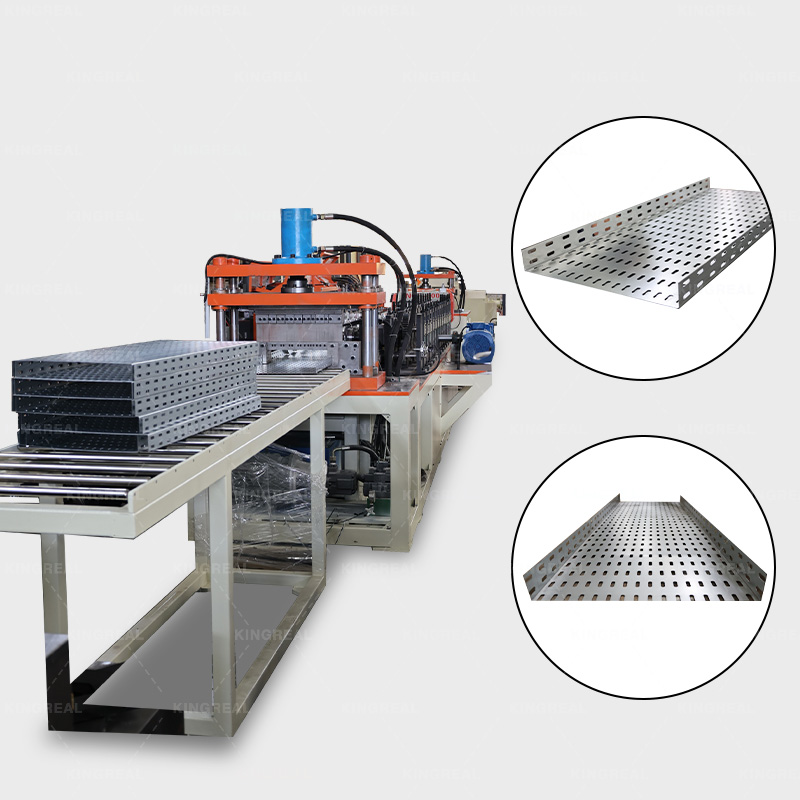

Gi Steel-made Cable Trays. Product width is adjustable from 200-600mm, can be set by computer control system, all machines will adjust as per requirement. Following pictures are 300mm width and 600mm width products
Features About Cable Tray Production Line

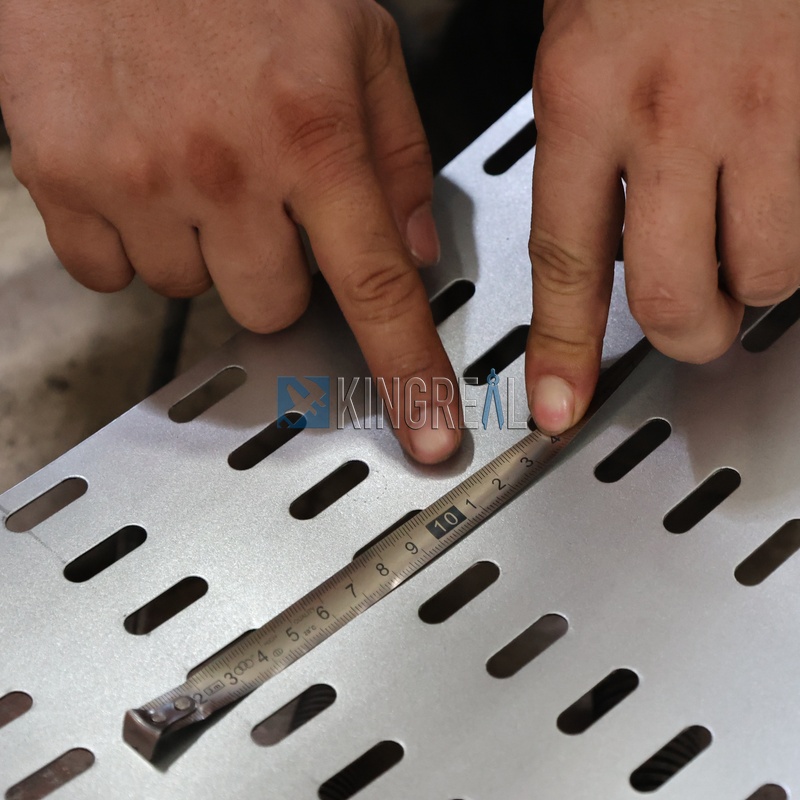

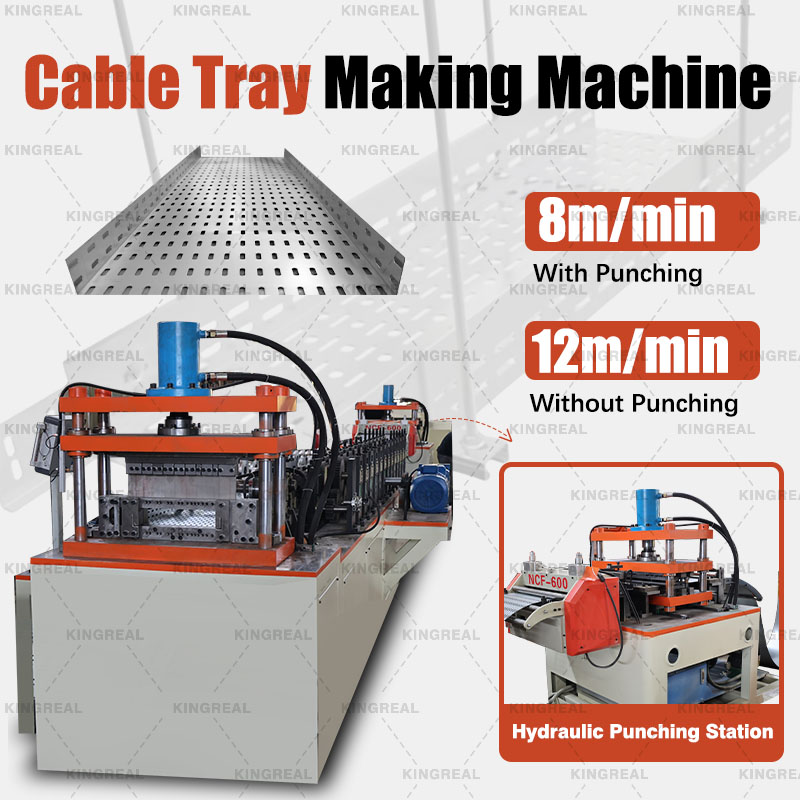

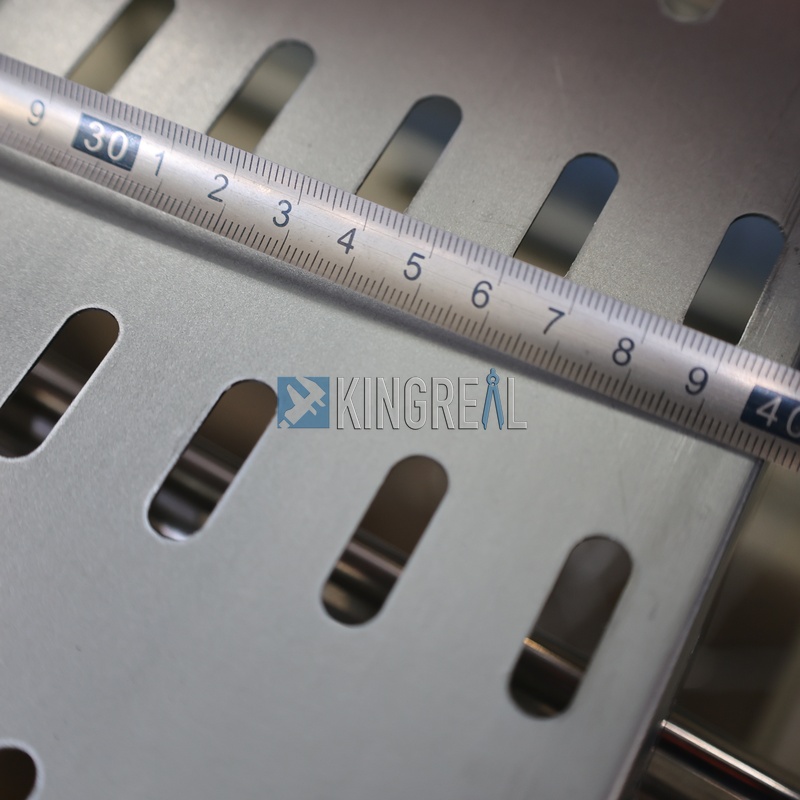

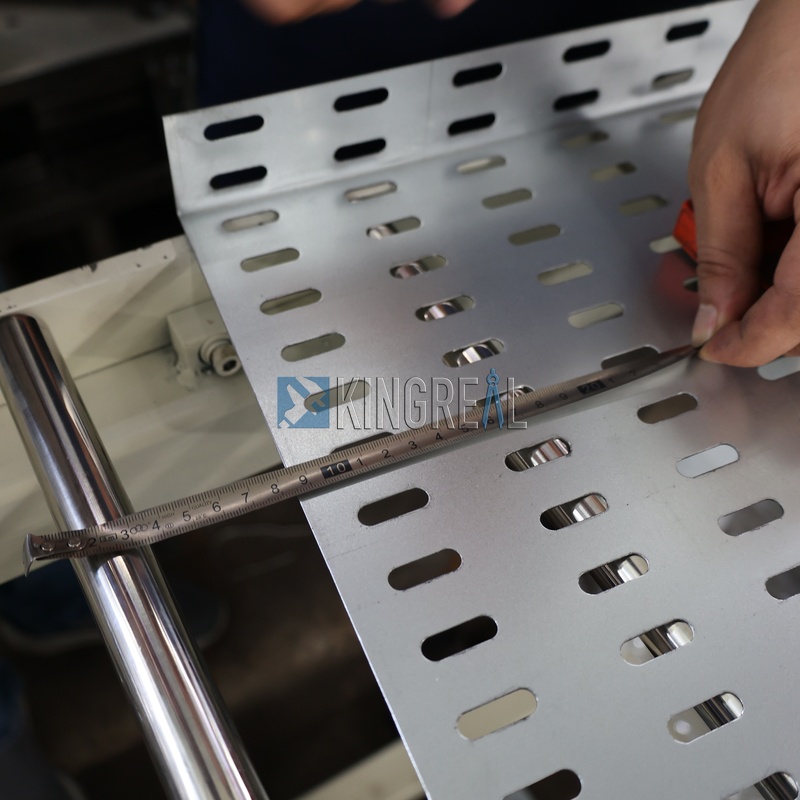

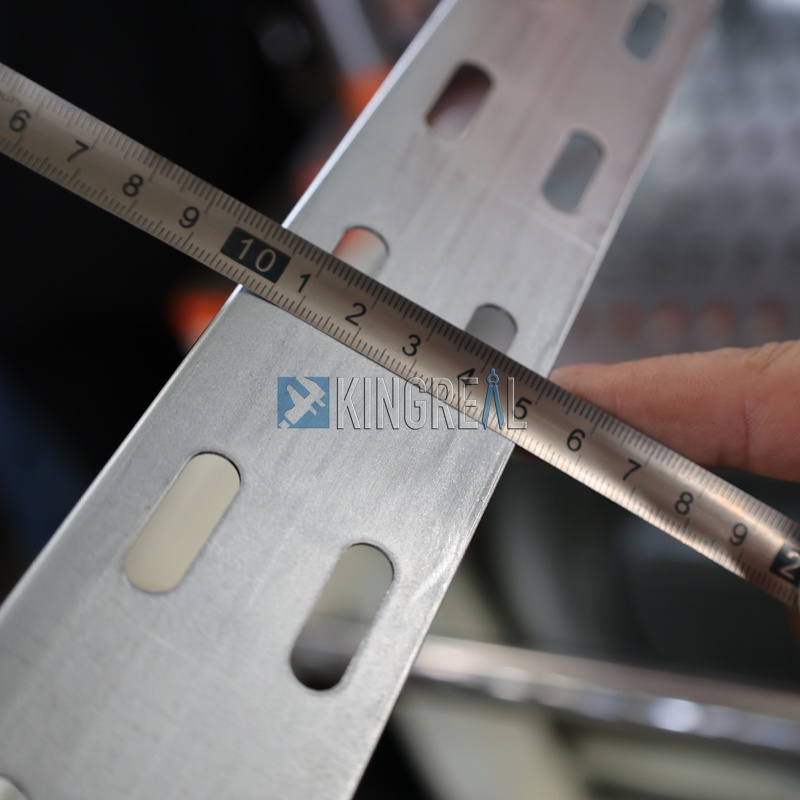

1. Yaskawa Servo Motors, High-Speed Punching Station, Worm Speed Reducers, High-Quality Hydraulic Stations, Computer Controlled Systems... We featured this production line with very powerful systems. 2. ±2.5mm Tolerance for Product Length, ±2mm Tolerance for Product Height, ±0.3mm Tolerance for Servo Feeding, Strict Quality Control System for Final Products, Samples Delivery for Clients’ Approvement, We do our best to make finished products the same as drawings. 3. CR12 Steel-Made Rollers, 40MM Thick Machine Panel, 80MM Diameter Main Axis, COPRA Software Designed and Verified by Experienced Engineers... 4. The cable tray roll forming machine is equipped with a high-quality punching station and custom punching dies, enabling the efficient production of standard, uniform holes. The key components are made for the sole purpose – to let this production line serve our clients for a very, very long time. |  |

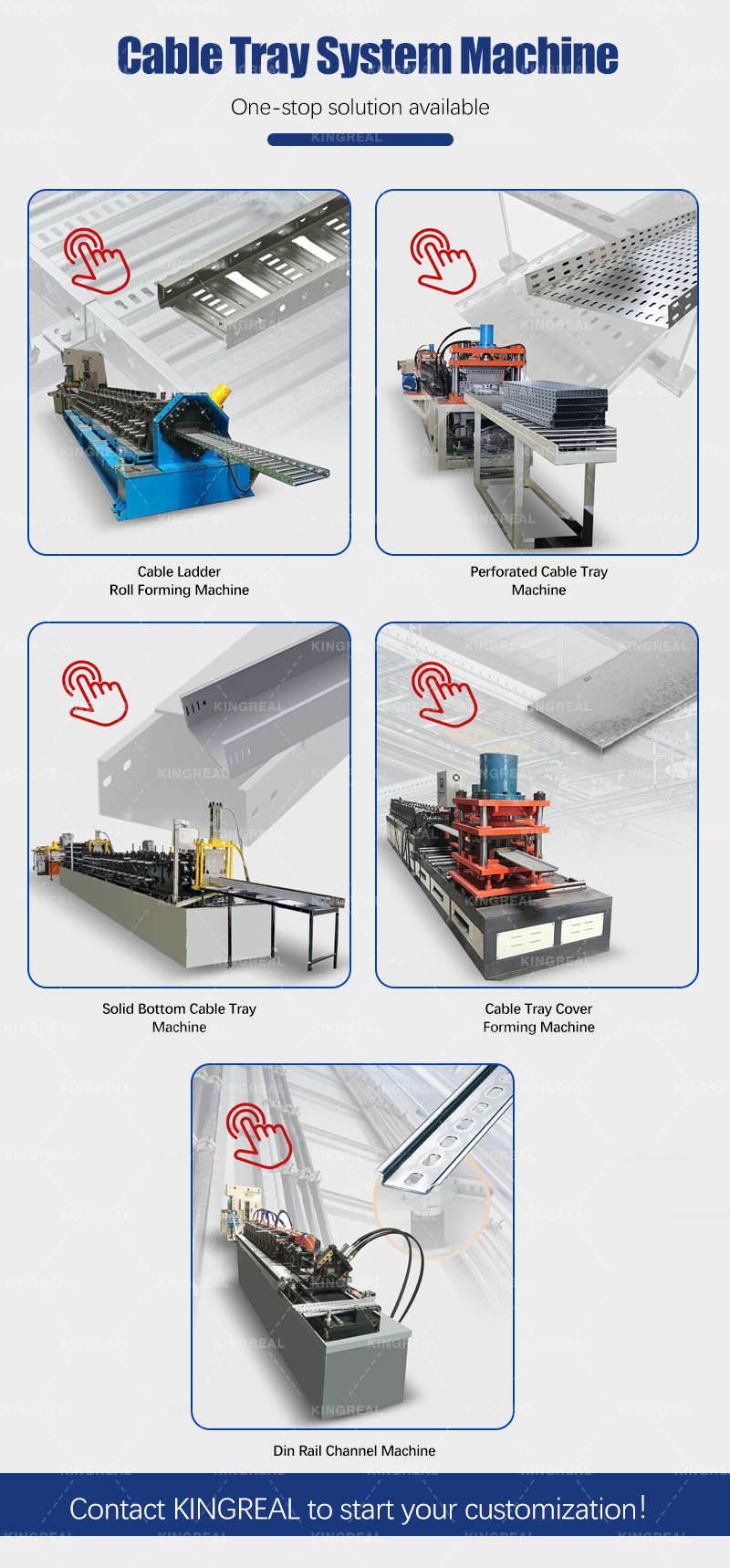

Complete Cable System
-Perforated Cable Tray Machine
-Cable Ladder Roll Forming Machine
-Cable Tray Cover Forming Machine
-Trough Cable Tray Roll Forming Machine
-Solid Bottom Cable Tray Machine
-Din Rail Channel Machine
Cable Tray Product Application

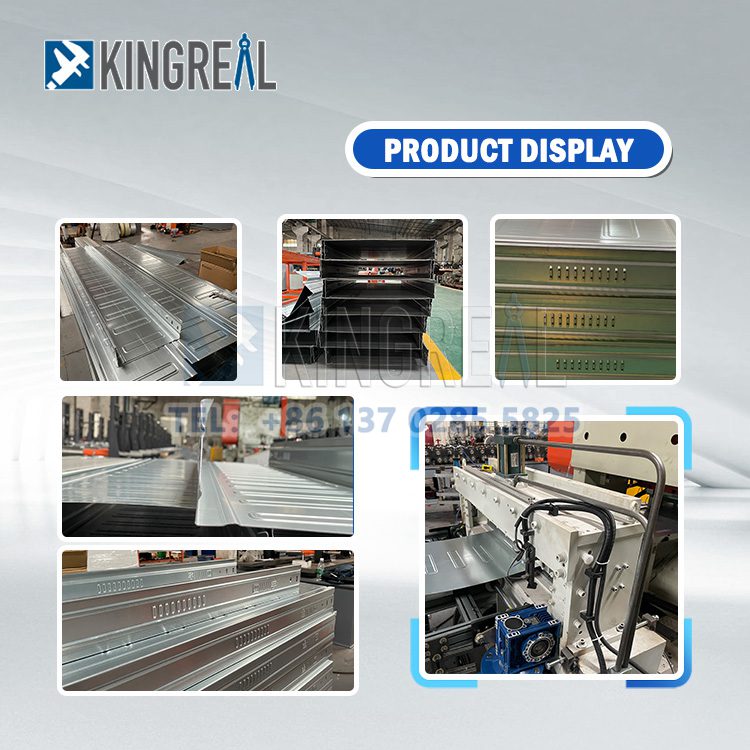

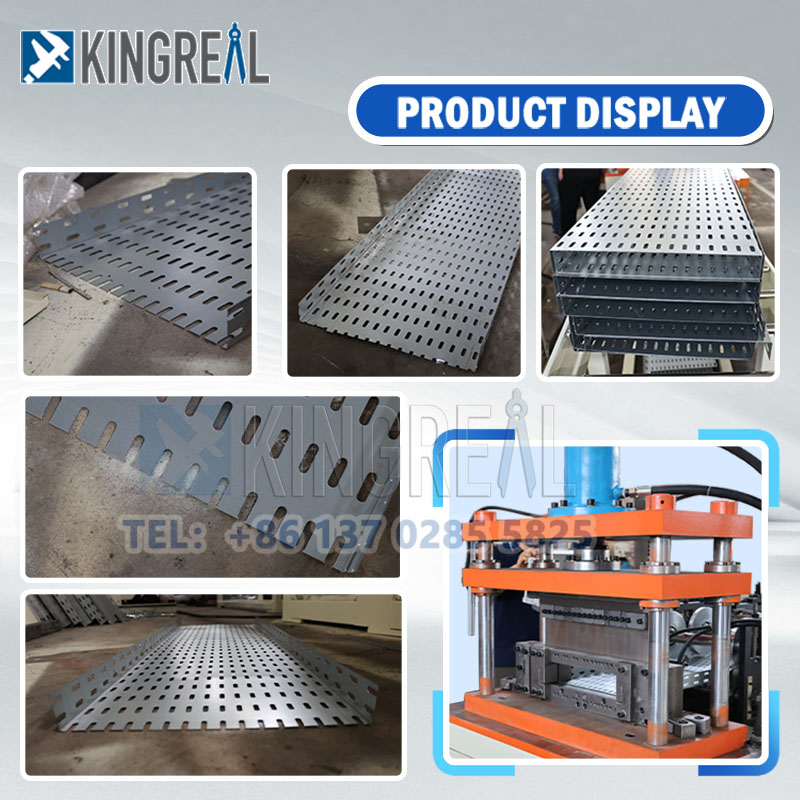

Product Display About Cable Tray System
Latest Project: Cable Tray Roll Forming Machine
KINGREAL has delivered a custom-built cable tray making machine to a client in Algeria; the equipment has successfully completed production, assembly, commissioning, and factory acceptance testing. For the acceptance phase, KINGREAL invited the Algerian client to visit the factory. Accompanied by KINGREAL technical team, both parties conducted a comprehensive inspection covering the cable tray making machine's physical condition, operational stability, and the dimensional accuracy of the finished products. The client expressed satisfaction with the cable tray making machine's overall performance and authorized its shipment. The cable tray making machine is currently being prepared for dispatch. Moving forward, KINGREAL will provide a full suite of support services—including on-site installation and commissioning, operation training, spare parts supply, and maintenance—to ensure the client can commence production with confidence. |  |
Quality Insurance
KINGREAL has passed ISO9000 certification and has the ability of ISO9000 quality system management. It has also passed the international CE certificate certification.
Technology Support
As a professional manufacturer of roll forming machine in China, KINGREAL has been in design - production - installation - after-sales for more than 20 years. KINGREAL is able to customize production solutions according to customer‘s drawings and specific parameter requirements.
After you ordered, our technical team will test the machine in an effort to insure every mechanical and electrical parts are in perfect condition.
