U Channel Roll Forming Machine

  • KINGREAL
  • China
KINGREAL offers comprehensive solutions for ceiling channel roll forming machines, which including u channel roll forming machine. This u channel roll forming machine achieves production speeds of up to 50 m/min and is capable of high-volume production of u channels in multiple sizes.


Metal Ceiling System Channel Roll Forming Machine

The metal ceiling channel roll forming machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles, feature roll forming machine incuding:


u channel machine


1. U Channel Roll Forming Machine
2. Wall Angle Forming Machine
3. Furring Channel Roll Forming Machine
4. F-shaped Profile Forming Machine
5. Ceiling T Bar Roll Forming Machine
6. Linear Strip Ceiling/Baffle Ceiling Carrier Machine and different specifications of cold bending and baking unit equipment, using PLC control.

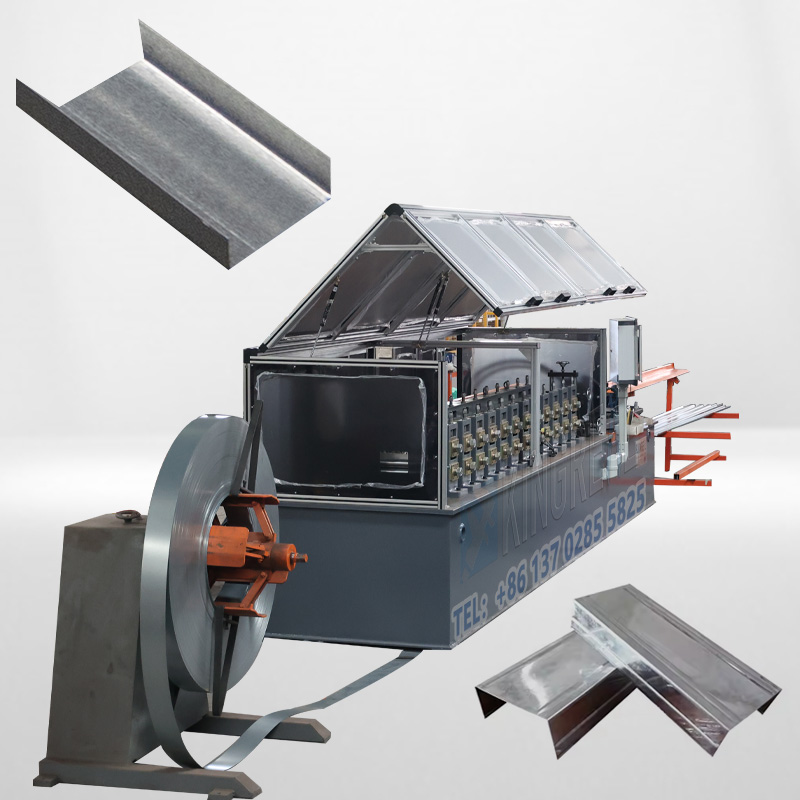

U Channel Roll Forming Machine Description


KINGREAL U Channel Roll Forming Machine is used to produce U-shaped ceiling channel. It adopts cold-forming technology to produce U channel by a series of processing procedures, including uncoiling, length setting, cutting, forming and cutting, etc. Finally, it produces U-shaped ceiling channel product.


galvanized u channel machine


This U Channel equipment has the advantages of high production efficiency, good quality of finished products and simple operation, and is widely used in the fields of construction, decoration and furniture.


Working Process Of U-Shape Profile Roll Forming Machine








Hydraulic Decoiler -- Main Roll Forming Machine -- PLC Control System -- Cutting Device -- Output Table

metal u channel machine

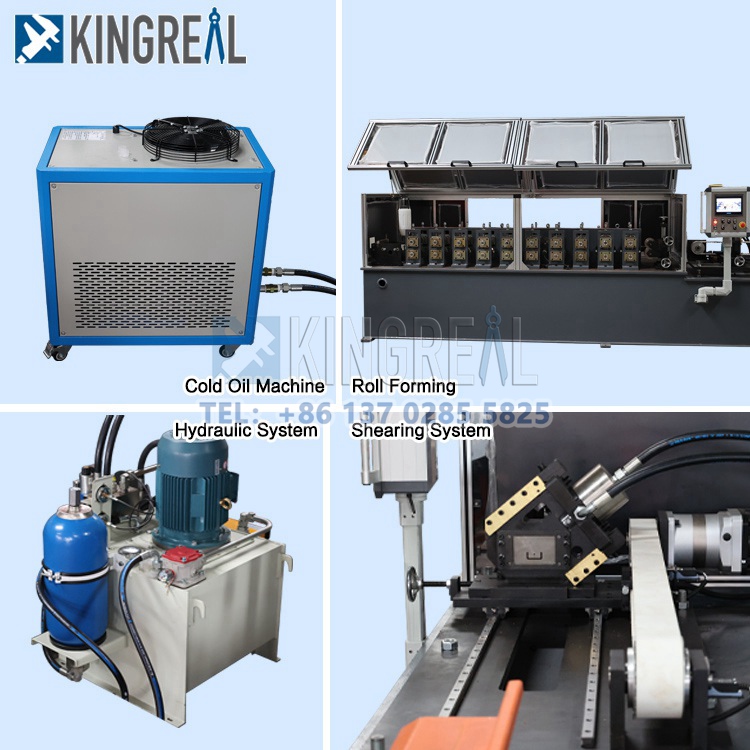

Main Components




KINGREAL U Channel Roll Forming Machine are combined by these independent machines:

- Decoiler
- main roll forming machine
- follow shearing system
- product output table and electrical system.

KINGREAL use PLC from Fatek, servo motor from Yaskawa, CR12 steel for making shearing blades etc to ensure our machine can serve clients for a very long time.
u channel machine



Multi-Specification U Channel Roll Forming Machine


This multi-specification u channel roll forming machine enables the efficient, continuous production of u channels in various sizes. By coordinating the forming unit with matching shearing dies, it ensures both high forming precision and production efficiency.


Based on customer-provided product drawings, KINGREAL delivers a fully customized machine designed to meet multi-specification production requirements. We also develop a range of shearing dies compatible with different cross-sectional parameters, allowing for flexible adjustments to production settings.


The entire process—from material feeding and forming to shearing—is seamlessly integrated. With the dies precisely matched to the main unit, the u channel roll forming machine effectively covers the full range of the customer's u channel specifications, fully leveraging its multi-type processing capabilities to consistently produce high-precision u channels across various sizes.

galvanized u channel machine


Auto Package Machine For U Channel


metal u channel machine


KINGREAL design automatic package machine for package the U Channel Metal Ceiling Product, which can reduce labor and improve production efficiency.


Reference Drawing Of U Shape Ceiling Channel

u channel machine
galvanized u channel machine
metal u channel machine
u channel machine

U Channel Roll Forming Machine Detail


galvanized u channel machine
metal u channel machine
u channel machine
galvanized u channel machine



One-Stop Service Process


In addition to providing high-performance u channel roll forming machine, KINGREAL offers a comprehensive, one-stop service covering key stages such as solution design, manufacturing, on-site machine inspection, installation and commissioning, and long-term spare parts supply.


KINGREAL has established a standardized service system spanning the entire project lifecycle. From the pre-sales technical consultation phase through the in-sales stages of production monitoring and equipment verification, to the post-sales phase of operation and maintenance support, KINGREAL ensures a seamless, closed-loop service process.


This approach comprehensively safeguards the successful implementation of customer projects and effectively addresses all needs regarding equipment commissioning and ongoing operations.

metal u channel machine


KINGREAL offers comprehensive solutions for ceiling channel roll forming machines, which including u channel roll forming machine. This u channel roll forming machine achieves production speeds of up to 50 m/min and is capable of high-volume production of u channels in multiple sizes.
