"In modern construction engineering, production efficiency and precision are key factors for project success. Ceiling channel making machines, as highly efficient production equipment, are widely used in the construction industry. However, a single machine cannot independently meet complex construction needs. Only by using ceiling channel making machines in conjunction with metal stamping machines can a complete steel structure be formed, improving the production efficiency and installation quality of partition wall and suspended ceiling projects. This article will detail how ceiling channel making machines and metal stamping machines can be effectively combined to form a complete steel structure solution."

Introduction to Complete Steel Structure Solutions

In a complete steel structure solution, ceiling channel making machines and metal stamping machines are indispensable. Without suitable connectors, ceiling channel profiles alone cannot provide sufficient support and connection, potentially affecting the safety of the entire structure. Many building codes and standards require the use of connectors to ensure installation quality and building safety. Therefore, these connectors are absolutely essential in modern construction.

(1) Classification of ceiling channel making machine

In steel structure construction, ceiling channel making machines can be divided into two categories based on specific applications: stud and track machines and false ceiling channel machines.

●Stud and track machine

Primarily used to produce studs and tracks for partition walls, efficiently and accurately meeting building requirements.

●False ceiling channel machine

Responsible for producing false ceiling channels in suspended ceiling systems, ensuring stability and material consistency during construction.

(2)Functions of metal stamping machine

The metal stamping machine is a key piece of equipment for producing connectors. It not only flexibly adjusts production parameters according to project needs but also manufactures high-quality connectors of various specifications and shapes. These connectors play a crucial role in the entire steel structure system.

●Functions of Connectors:

-Enhanced Safety: Connectors provide necessary support and connection between ceiling channels, ensuring that the structure will not deform or collapse under load.

-Improved Installation Efficiency: Prefabricated connectors simplify the installation process, allowing engineers and construction workers to assemble ceiling channels more quickly and accurately, saving time and labor costs.

-Adjustment Space: Connector designs typically allow for a certain amount of adjustment space, facilitating on-site fine-tuning to adapt to actual conditions (such as irregular walls or ceilings).

Furthermore, the connectors are designed for the seismic resistance of the structure, ensuring the building remains stable under extreme conditions such as earthquakes. Appropriate connector design also enhances the building's aesthetics, reducing exposed weld points and improving the overall appearance.

Case of the Use of Ceiling Channel Making Machine & Metal Stamping Machine

(1) Stud and track machine & metal stamping machine

In the installation of partition wall systems, the studs and tracks produced by the stud and track machine form the foundation of the overall structure. The installation process first requires determining the location of the studs and installing the tracks on the ground and roof. This is a crucial step in ensuring the stability and verticality of the partition wall. Calibration using a plumb bob ensures that the tracks are perfectly aligned, which is essential for subsequent stud installation.

Throughout the installation process, several connecting fittings produced by the metal stamping machine play an important role:

-Nogging Brackets: These are high-strength brackets, typically fixed to the flanges of the studs. This design effectively increases the overall stability of the partition wall, especially under external pressure or impact, ensuring the wall is not easily deformed.

-Sill Connector: This connector is responsible for tightly connecting the vertical studs to the horizontal tracks, providing the necessary structural support. Its importance lies in the fact that even the slightest improper connection can lead to wall tilting or loosening, making high-quality sill connectors crucial.

-Strongarm Wall Brace: This accessory is specifically designed for stand-alone stud walls in commercial applications, providing additional reinforcement. For walls with heavy loads, Strongarm Wall Brace significantly improves the overall load-bearing capacity, making the partition wall safer during use.

Using these accessories, construction workers can achieve higher installation precision and shorten construction cycles. The efficient connection method makes wall splicing simple and precise, eliminating the need for complex welding or other connection methods. Many construction companies have found that the corresponding connector combinations produced using stud and track machines and metal stamping machines can reduce partition wall installation time to half that of traditional methods. This not only reduces labor costs but also reduces potential errors during construction, ensuring higher material utilization.

(2) False ceiling channel machine & metal stamping machine

The construction of the ceiling system is also a crucial part of building construction. These false ceiling channels are mainly produced by various types of false ceiling channel machines, including ◀Omega Channel Machine,U Channel Making Machine,Drywall Wall Angle Profile Machine▶. These false ceiling channel machines work together to produce ceiling channels with different functions, ensuring the stability and aesthetics of the ceiling. Among them, the hat channels produced by the omega channel machine provide a fixing surface for the suspended ceiling system. It is fixed to the bottom of the u channel produced by the u channel making machine, providing a foundation for fixing the gypsum board lining, thus creating a smooth ceiling effect. The corner edges produced by the drywall wall angle profile machine are used to fix to the edges of the gypsum board, acting as the ceiling frame.

During the ceiling construction process, the connectors produced by the metal stamping machine are also indispensable. Main products include:

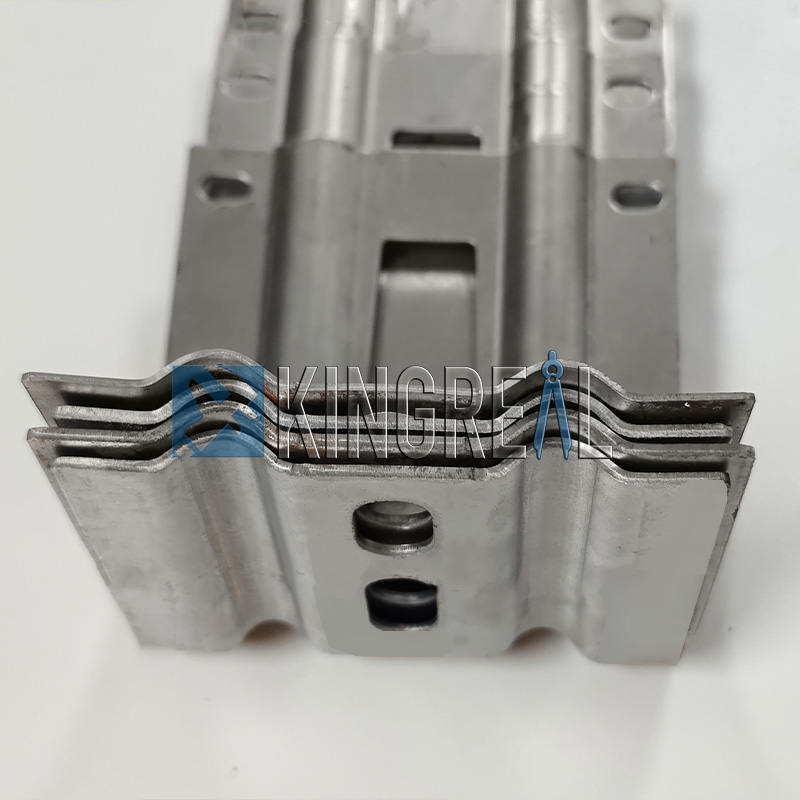

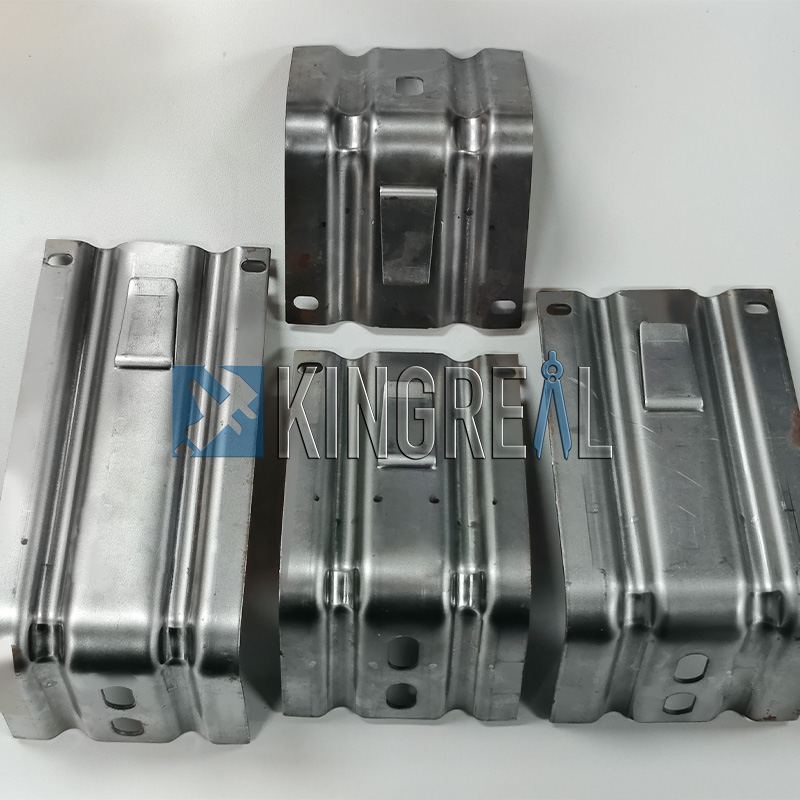

-Standard Insert: As an installation material made of high-strength galvanized steel sheet, Special Insert is used to connect ceiling C-profiles, effectively improving the structural stability of the ceiling. These special connectors ensure a more secure connection between C-profiles, preventing loosening due to material aging or external loads.

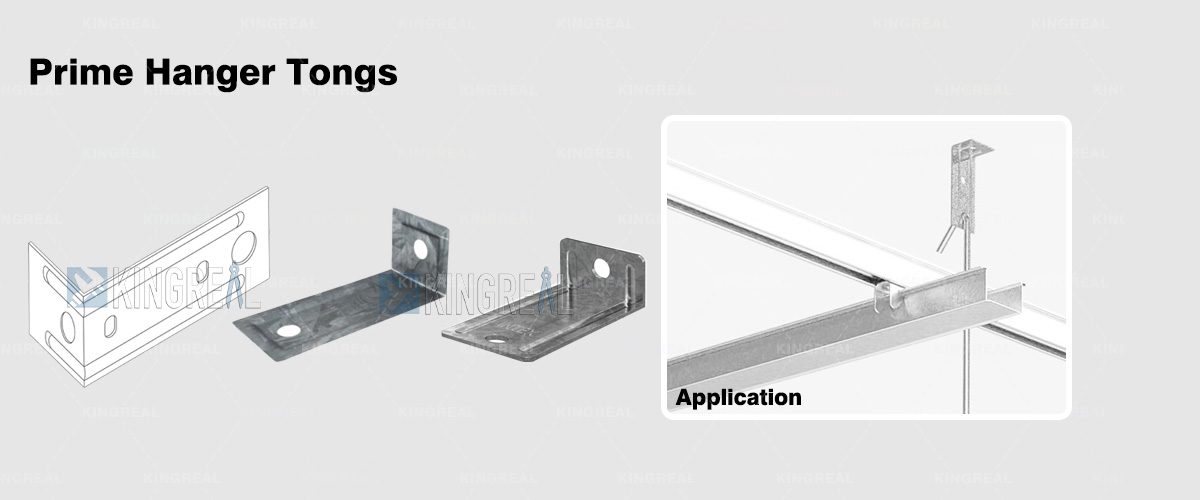

-Prime Hanger Tongs: This high-strength hook design effectively secures the plasterboard, preventing it from shifting or falling off under load. This design ensures safe and reliable construction and allows for flexible position adjustments depending on the construction plan.

-Prime Combination Clips: These connectors are designed with future maintainability in mind, making ceiling system assembly and disassembly easier. Construction workers can easily disassemble the system for future maintenance or replacement without affecting the overall structural stability.

By combining different ceiling channels and connectors, suspended ceiling system installation can cover various design needs and meet the flexibility requirements of different projects. Whether it's a complex design in a commercial space or a simple installation in a residential project, these accessories provide a reasonable and effective solution.

The effective combination of the ceiling channel making machine and the metal stamping machine creates a highly efficient and stable building system that meets the high requirements of modern architecture for steel structures. Whether for partition walls or ceiling projects, the ceiling channel making machines and metal stamping machines provided offer complete solutions, ensuring the safety, stability, and aesthetics of your project. If you are looking for efficient and convenient steel structure solutions, KINGREAL offers advanced ceiling channel making machines and metal stamping machines designed to help you achieve your goals.

  Contact KINGREAL today to learn more about our ceiling channel making machines and metal stamping machines.
