|Distinguished by high-speed, stable operation, capacity for large-batch continuous production, and high-precision forming capabilities, the solar channel machine efficiently produces a wide variety of high-quality solar channels. It comprehensively reduces manufacturing costs, boosts production efficiency, and enhances product added value—thereby consistently expanding profit margins and steadily increasing overall corporate profitability for major photovoltaic mounting system manufacturers.

What is a Solar Channel Machine?

This solar channel roll forming machine executes a complete, sequential workflow—including uncoiling, leveling, feeding, forming, and precision cutting—on large-format metal coils to produce standardized solar channels that meet customers' exact dimensional specifications.

Furthermore, to address the widespread demand within the PV industry for perforated solar channels, the solar channel machine can be flexibly integrated with an automated punching unit. This allows for continuous, automated inline punching operations prior to the coil forming stage, ensuring precise hole positioning and uniform arrangement. The entire solar channel roll forming machine is equipped with an intelligent PLC control panel; operators simply need to pre-configure various production parameters—such as output volume, finished product specifications, operating speed, punching parameters, and cutting lengths—within the system. The solar channel machine then operates continuously and fully automatically according to the programmed sequence, completing the entire process from raw material loading to finished product discharge within a fully automated closed-loop system.

For more information about this solar channel roll forming machine, please visit the product link.

What Does Solar Channel Machine Produce?

The solar channel roll forming machine is specifically designed for the professional production of standard strut channels used throughout the photovoltaic industry; these serve as indispensable load-bearing mounting components within PV power plant installation systems. These solar channels feature a standard U-shaped cross-section design with inwardly folded, reinforced flanges on both sides. Characterized by high structural rigidity, superior load-bearing capacity, and ease of connection during installation, they are widely utilized as dedicated mounting rails for securing solar panels in various applications—including ground-mounted PV power plants, rooftop distributed PV systems, and commercial solar projects.

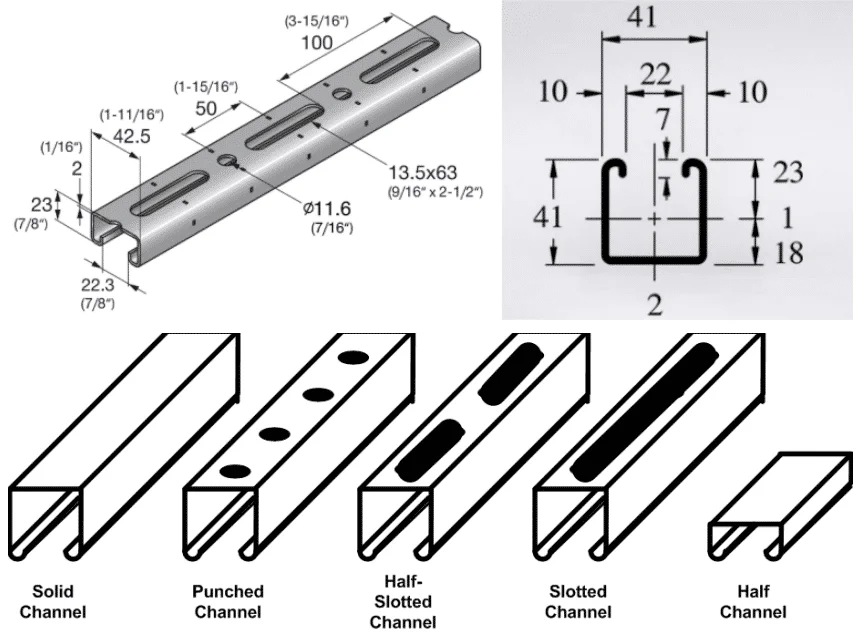

The industry's mainstream standard specifications for solar channels include models such as 41×21mm, 41×41mm, 41×62mm, and 41×82mm; the KINGREAL solar channel roll forming machine is fully capable of meeting production requirements across this entire range of specifications. Tailored to accommodate the varying installation designs, construction blueprints, and operational environments of diverse photovoltaic projects, KINGREAL solar channel machine is capable of producing five distinct channel types: solid channels, punched channels, half-slotted channels, slotted channels, and half-channels.

KINGREAL solar channel machine specializes in the cold-forming of galvanized steel coils ranging in thickness from 1.5mm to 3mm. Given its robust corrosion and rust resistance, galvanized steel is perfectly suited for the long-term, harsh outdoor environments typical of photovoltaic power stations. Furthermore, this solar channel roll forming machine offers flexible and convenient changeover capabilities; by simply making manual adjustments to the roller structure or swapping out a few sets of specialized forming rollers, manufacturers can rapidly switch production between different specifications of solar channels. This significantly boosts equipment utilization rates and reduces the need for manufacturers to invest in multiple specialized machines. View more.

Why Choose KINGREAL Solar Channel Machine?

KINGREAL possesses extensive experience in the design, R&D, manufacturing, and export of solar channel machines. Through stable partnerships with clients in Italy and Mexico, we have gained a profound understanding of international photovoltaic market standards, project requirements, and the technical specifications for solar channels; consequently, our equipment designs are fully aligned with global operational standards. KINGREAL excels at providing bespoke solar channel roll forming machine solutions, custom-tailored to meet the unique and individualized needs of each client.

KINGREAL offers comprehensive, end-to-end customization solutions for solar channel machines. Every parameter—including roll-forming precision levels, maximum high-speed operating speeds, compatible material thickness ranges, punching configurations, and automation levels—can be fully customized according to specific requirements. Additionally, to support clients looking to scale up their production capacity, KINGREAL can integrate optional automated stacking devices with the solar channel roll forming machine. This enables the automatic discharge and palletized stacking of finished solar channels, thereby further elevating the level of automation across the entire production workflow and reducing labor costs.

Beyond supplying high-quality solar channel roll forming machine, KINGREAL provides a comprehensive, one-stop service system for clients worldwide. This includes dispatching professional engineers to handle machine installation and commissioning, providing safety training for equipment operation, offering guidance on routine maintenance and inspections, and ensuring a continuous supply of spare parts. This all-encompassing service package guarantees the long-term, stable, and efficient operation of our clients' solar channel machines, allowing them to operate with complete peace of mind.

Main Component of Solar Channel Machine

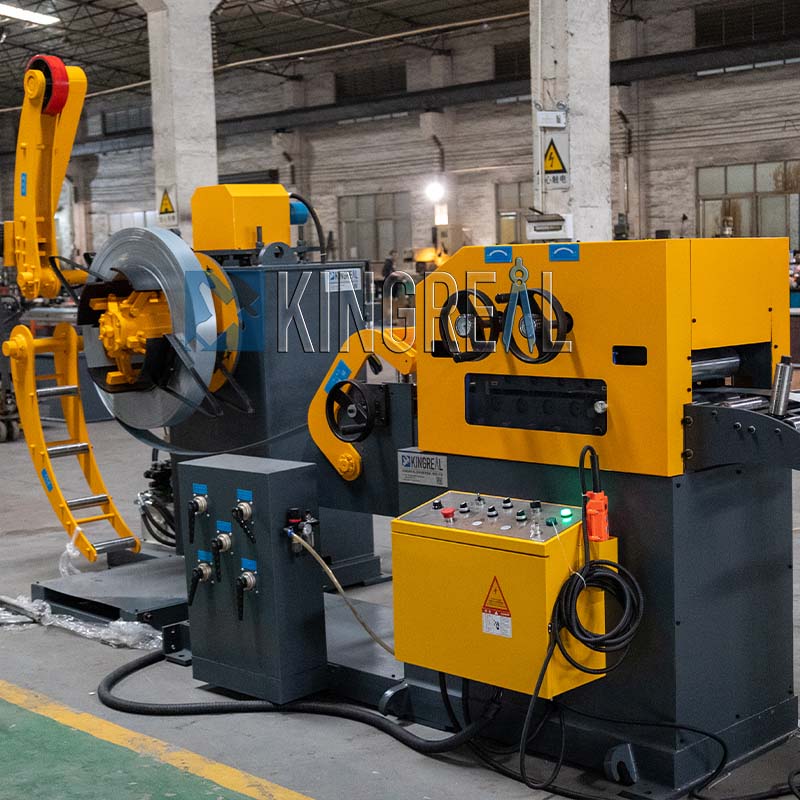

2-in-1 Decoiler & Leveling Machine

This unit automatically feeds galvanized steel coils and performs hydraulic tensioned uncoiling. Simultaneously, it utilizes a precision leveling roller group to flatten and stress-relieve the metal sheet, ensuring that the material entering subsequent processes is perfectly flat, straight, free of curvature, and devoid of internal stress. This provides a solid, high-quality foundation for the subsequent solar channel roll forming process. This 2-in-1 decoiler and leveling machine features a maximum load capacity of up to 2 tons and accommodates coil inner diameters ranging from φ450 to 550 mm, with a maximum outer diameter capacity of φ1300 mm.

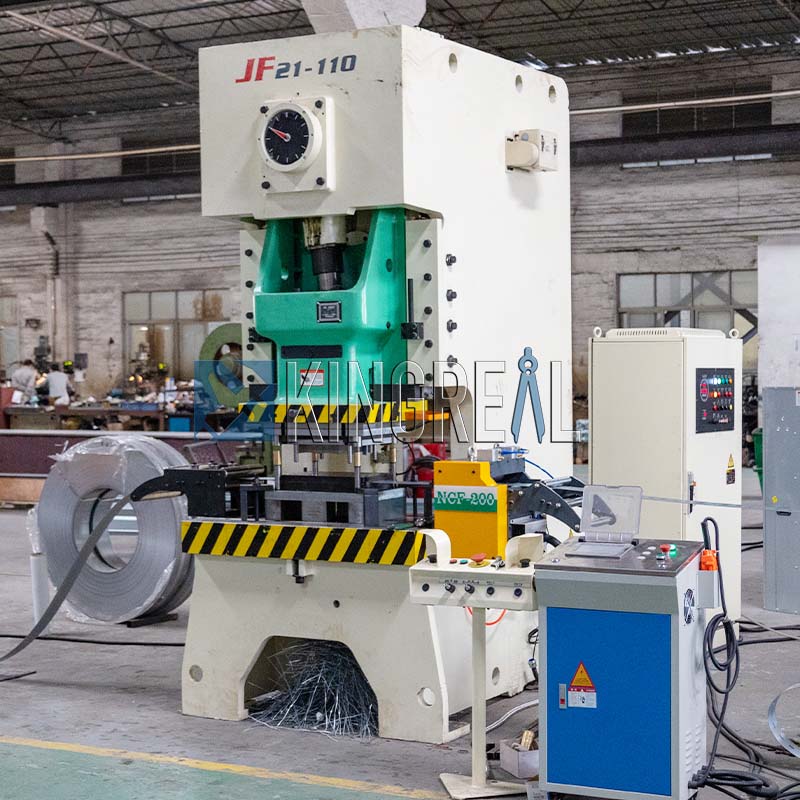

Punching Machine

Equipped with specialized punching dies precisely customized according to client blueprints, the punching machine performs continuous, high-precision punching on the raw material. It produces holes—in terms of diameter, shape, and spacing—that strictly adhere to the drawing specifications. The punching process delivers high accuracy with flat, burr-free edges, directly producing punched channels without the need for any subsequent secondary processing.

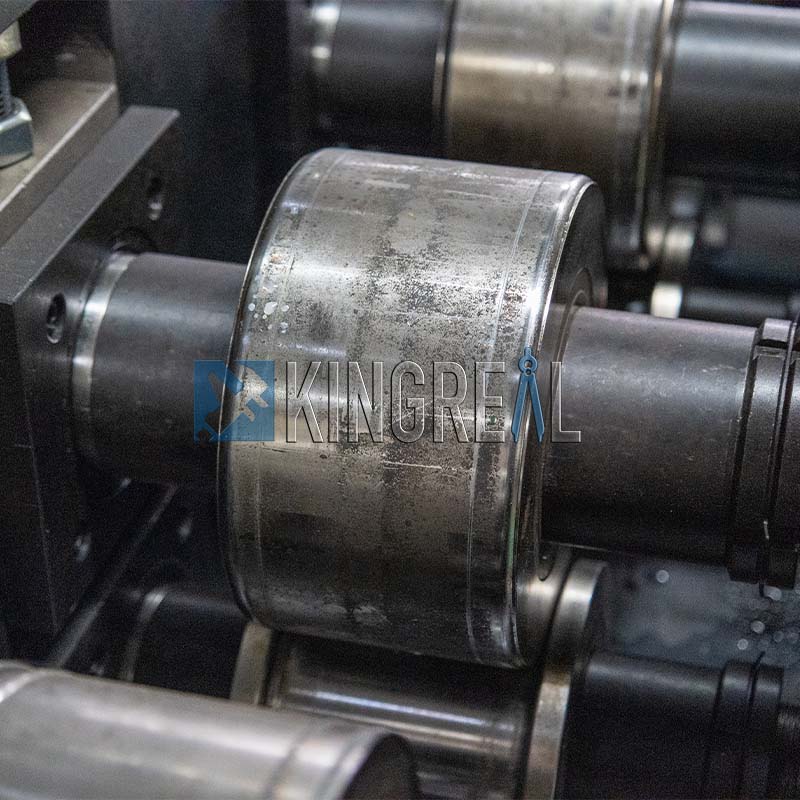

Roll Forming Machine

Utilizing multiple sets of forming rollers, this unit subjects the metal sheet to progressive, continuous roll deformation, gradually shaping the flat coil material into the standard solar channel cross-section profile. KINGREAL offers two roller group configurations for solar channel machines: 22 sets and 26 sets. The greater the number of rollers, the more refined the forming process; this results in higher forming precision, structural stability, and cross-sectional regularity for the finished solar channels. Forming errors are minimized to a negligible range, ensuring exceptional consistency across all finished products.

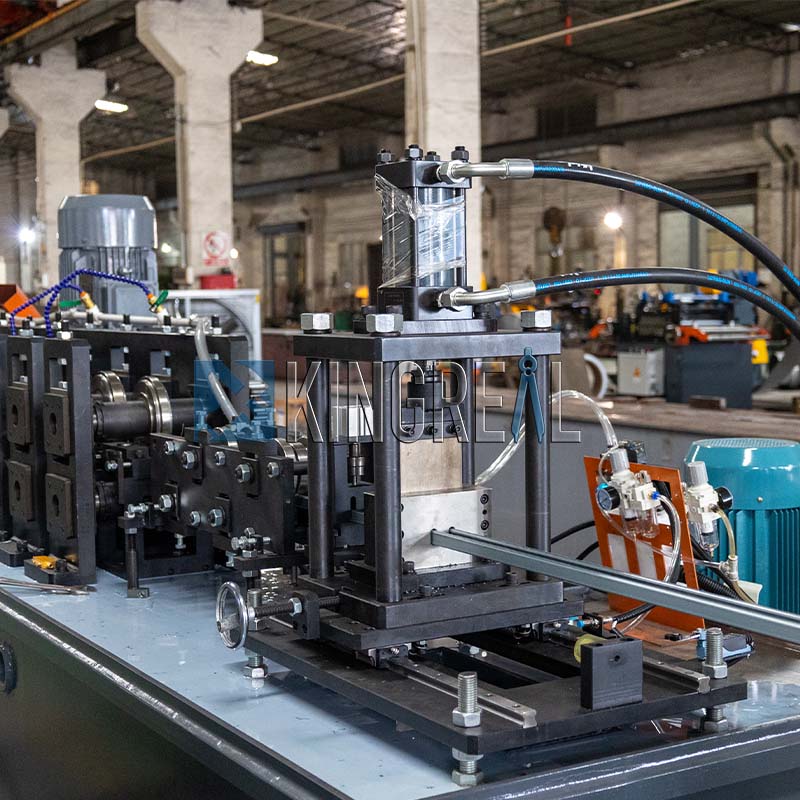

Cutting Station

Based on finished product length parameters pre-set by the client, this station performs precise cutting on the continuously formed solar channels. The cutting produces flat cross-sections with minimal length deviation, ensuring that each piece is accurately cut to the exact standard length required by the client.

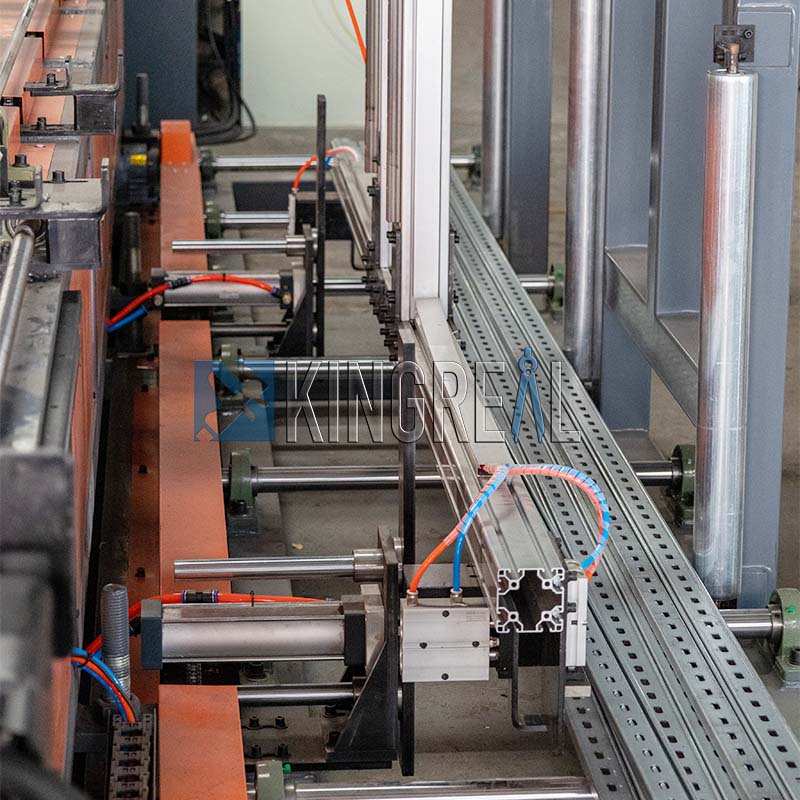

Stacking Machine

This unit automatically receives, organizes, and stacks the finished solar channels once they have been cut. It enables unmanned handling of finished product discharge, thereby significantly enhancing the level of automation and overall production efficiency of the entire production line.

Are you ready to acquire an advanced solar channel machine? Contact KINGREAL today! We will assist you in selecting the ideal solar channel roll forming machine for your factory and provide installation services worldwide!
