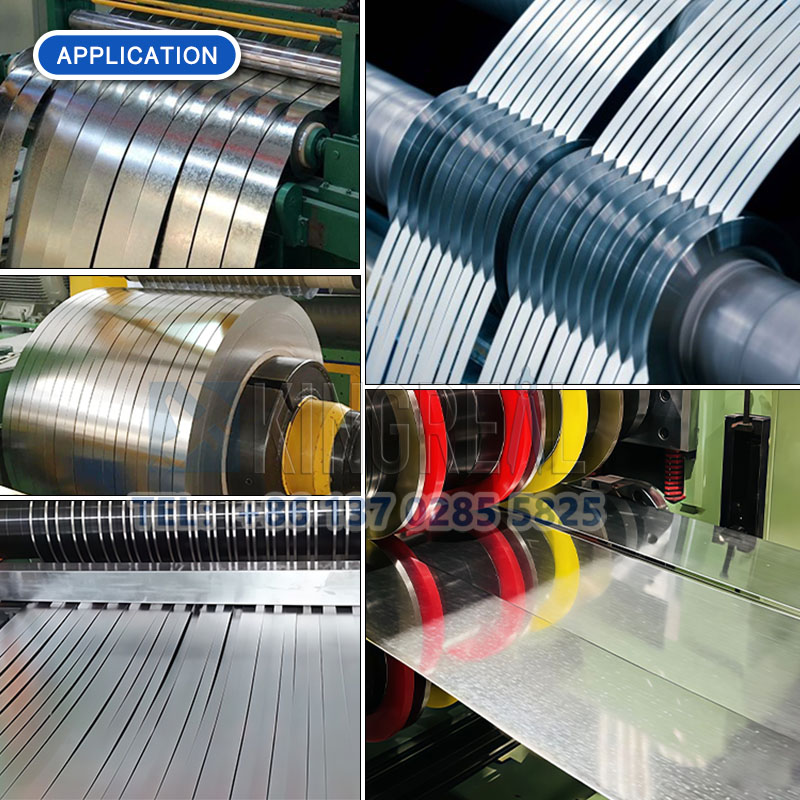

A metal slitting line cuts wide metal coils into multiple narrow strips, each perfectly sized and fed into a solar channel machine. The metal slitting machine not only provides photovoltaic systems with precisely sized, smooth-edged processing materials, but also influences the final performance and durability of the photovoltaic system. In the current context of rapid global photovoltaic industry development, the metal slitting line, as a core pre-processing device in the solar channel production process, directly determines the construction quality, service life, and overall benefits of the photovoltaic system through its performance and stability.

How Metal Slitting Line Works in Solar Structure Production?

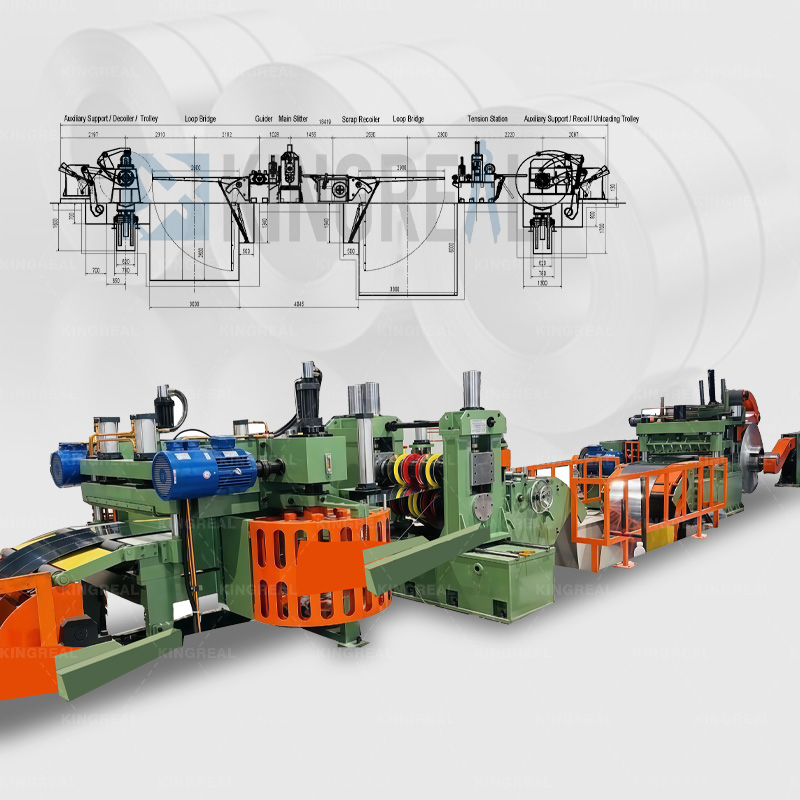

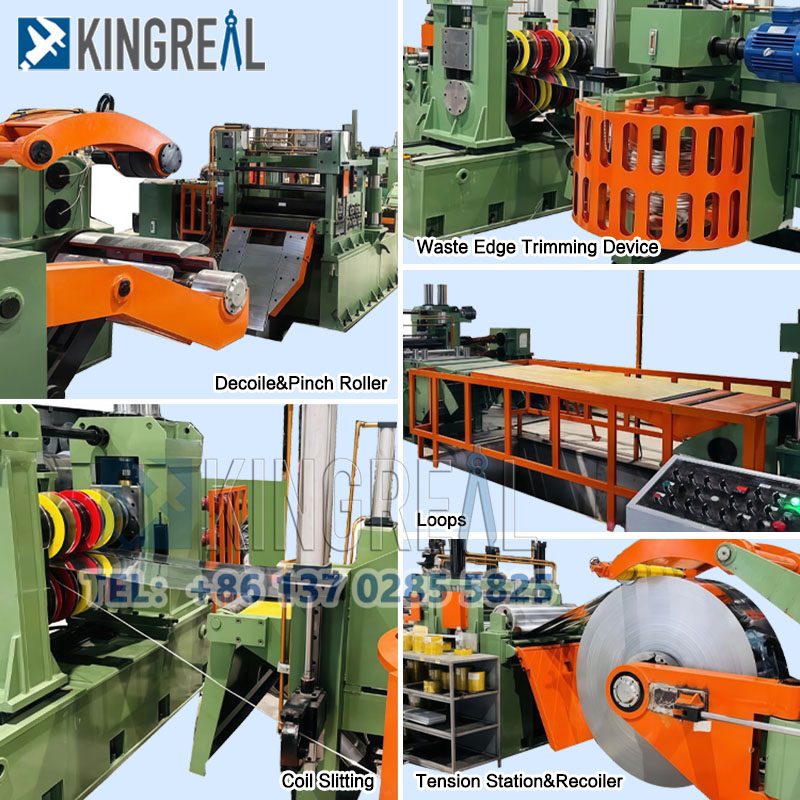

The metal slitting machine processes large metal coils, typically hot-dip galvanized steel, aluminum alloy, or stainless steel, using precision components such as a decoiler, main slitter, and recoiler, ensuring qualified processing materials are provided for subsequent solar channel forming. Specifically:

(1) The metal slitting line conveys the metal coils through a precision-driven straightening and guiding unit. During transportation and storage, the metal coils used in solar channels inevitably experience deformation problems such as bending and wrinkling. The straightening unit of the metal slitting line uses multiple sets of rollers to precisely level the coils, eliminating bending defects. Simultaneously, the guiding unit precisely positions the coils, ensuring stable and uniform transport and preventing deviation, thus laying a good foundation for subsequent slitting. The straightening and guiding accuracy of the metal slitting machine directly affects the accuracy of subsequent slitting dimensions.

(2) The metal slitting line cuts the coils into narrow strips according to the precise width required for the solar channels in the photovoltaic system. Different types of photovoltaic systems have different dimensional requirements for solar channels. The metal slitting machine can preset slitting parameters through a PLC control system to precisely match the needs of different solar channel specifications, and the slitting accuracy fully meets the precision processing standards of solar channels.

(3) The main slitter, as the core slitting component of the metal slitting machine, uses high-quality slitting tools and a precise positioning system to maintain edge quality. The metal slitting line's blades are made of cemented carbide, offering high wear resistance and sharp cutting edge. Combined with a precise positioning system, this effectively prevents burrs, rough edges, and edge warping during the slitting process, ensuring smooth and flat edges on each narrow strip. The quality and positioning accuracy of the metal slitting machine's blades directly determine the edge quality of the slitting strips, thus affecting the subsequent solar channel forming effect and the durability of the photovoltaic system.

(4) The recoiler rewinds the strip for immediate transfer to the solar channel machine or storage for later use. The metal slitting line's recoiler uses servo tension control, automatically adjusting the recoiler according to the thickness and width of the slitting strips. This ensures a flat and uniformly tight end face after winding, avoiding looseness and wrinkles. This facilitates direct feeding into the solar channel machine for subsequent processing and also allows for long-term storage, reducing damage during transportation and storage.

Importance of Metal Slitting Lines in Photovoltaic System

Photovoltaic systems require precisely designed metal profiles to support photovoltaic panels operating outdoors for decades, enduring long-term erosion from wind, sun, rain, snow, and other natural elements. Therefore, the strength, precision, and corrosion resistance of the supporting structure are extremely important. Thus, the narrow strips produced by the metal slitting machine directly affect the integrity of the photovoltaic support structure.

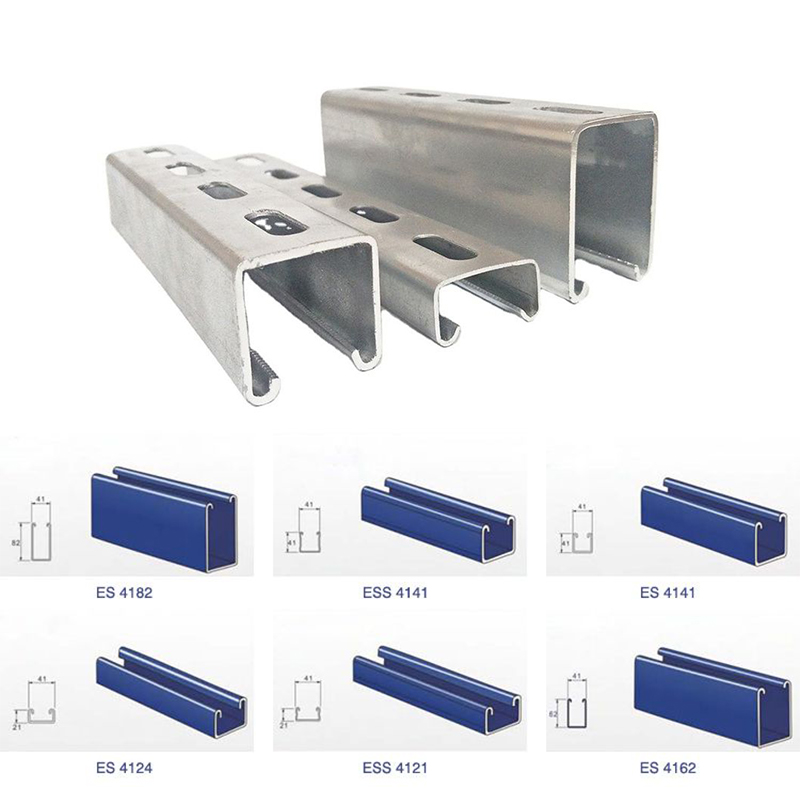

(1) The slitting precision of the metal slitting line directly determines the structural stability of the solar channel. The forming of the solar channel depends on the dimensional precision of the narrow strips provided by the metal slitting line. Even slight deviations in material width can lead to misalignment and jamming during the forming process, affecting the forming quality of the solar channel and reducing its load-bearing capacity. The metal slitting line, with its high-precision slitting capability, can strictly control dimensional deviations within industry standards, ensuring that each narrow strip perfectly matches the processing requirements of the solar channel machine.

(2) The metal slitting machine effectively protects the surface coating of the metal coil, ensuring the corrosion resistance of the solar channel. The smooth, burr-free edges of the narrow strips produced by the metal slitting line effectively protect the zinc coating on the galvanized steel, preventing scratches from edge burrs and preventing moisture and impurities from penetrating through damaged areas, thus preventing rust and corrosion of the metal substrate.

(3) The metal slitting machine enables large-scale, high-efficiency production, meeting the batch production needs of photovoltaic projects. With the rapid development of the global photovoltaic industry, the scale of large-scale photovoltaic projects is constantly expanding, typically requiring solar channels of thousands or even tens of thousands of meters. The metal slitting machine can continuously process materials at a speed of 230m/min, enabling continuous large-scale material preparation. The high-speed processing capability of the metal slitting line not only shortens the production cycle of solar channels, meeting the strict schedule requirements of large-scale photovoltaic projects, but also reduces labor costs and improves production efficiency, providing strong support for the large-scale development of the photovoltaic industry.

Benefits of Using a Metal Slitting Line for Solar Channel Forming

① Precise width control. The metal slitting machine is equipped with an advanced PLC intelligent control system and a precision positioning device, which can accurately set the slitting parameters according to the dimensions of the solar channels required by the customer's photovoltaic system, perfectly matching the processing requirements of the solar channel machine.

② Material optimization. During the slitting process, the metal slitting line can rationally plan the slitting scheme according to the width of the metal coil and the size requirements of the solar channel, maximizing the output of each coil and minimizing waste. Through precise parameter settings and optimized slitting processes, the metal slitting machine can reduce the waste rate to a minimum, effectively saving raw material costs.

③ Burr-free edges. The metal slitting line uses high-quality slitting blades and a precise positioning system, eliminating burrs and rough edges during the slitting process, producing narrow strips with smooth and flat edges. This burr-free edge reduces blade wear on the solar channel machine and improves the surface finish of the final product.

④ Flexibility. By adjusting parameters, the metal slitting line can quickly adapt to the needs of different specifications and types of solar channels, producing narrow strips suitable for various solar structure designs. Whether it's the heavy-duty solar channels required for large-scale ground-mounted photovoltaic power plants or the lightweight solar channels needed for industrial rooftops and residential photovoltaics, the metal slitting line can accurately match the slitting requirements.

⑤ Increased production speed. The narrow strips produced by the metal slitting machine can be directly wound up and fed into the solar channel machine, or stored in advance for later use. This ensures that the solar channel machine has pre-cut rolls available, enabling continuous operation without downtime for raw material replacement, significantly improving overall production speed.

Compatible with Solar Channel Machines

The metal slitting machine and the solar channel machine can be used together, forming an upstream and downstream relationship. Working collaboratively, they constitute the core production line for solar channel manufacturing. In many solar structure factories, the metal slitting line is located upstream of the solar channel machine, responsible for pre-processing the metal rolls and providing qualified processing substrates for the solar channel machine. Their processes are closely integrated, ensuring continuous and efficient production. The specific process flow is as follows:

Load the roll material into the decoiler of the metal slitting machine → Slit into strips conforming to the specifications → Wind up the strip or feed it directly into the solar channel machine → Form the roll material into a solar channel → The solar channel machine can be equipped with a packaging unit for automated stacking of large-scale profiles.

KINGREAL can provide both metal slitting machines and solar channel machines, offering a seamless and efficient production solution for your photovoltaic projects. This avoids integration issues caused by combining equipment from different brands, improving production efficiency and product quality. For more information on metal slitting lines, solar channel machines, and customized solutions for photovoltaic projects, please contact KINGREAL!
