A metal slitting machine precisely cuts large metal coils into narrow strips of a specific width. These strips undergo subsequent secondary cold bending and forming processes to produce profiles such as Ceiling C, Ceiling U, Stud Wall C, Track Wall U, Omega Channel, Main Channel, L Corner Profile, and Corner Bead, which are widely used in the production of various plasterboard profiles.

Many plasterboard profile manufacturers encounter frequent jamming on their roll forming machines, severely impacting production schedules and increasing costs. The root cause of this problem often lies with the metal slitting line itself—if the metal slitting machine is substandard, the slitting process will result in excessively large burrs on the edges of the cut metal strips, or uncontrolled width tolerances. These substandard strips, when entering the subsequent cold bending process, will cause problems such as jamming, misalignment, and uneven surface texture.

This article will provide a detailed introduction to metal slitting lines suitable for the plasterboard profile industry, helping manufacturers select the appropriate metal slitting machine.

Requirements for Metal Slitting Lines in Plasterboard Profile Industry

1) Precision Processing of Thin Materials

The production of plasterboard profiles typically uses ultra-thin galvanized steel strips with a thickness of 0.3mm-0.8mm as the core raw material. These materials are thin yet tough, making them prone to deformation, rough edges, and width deviations during slitting. KINGREAL has accurately grasped the common needs of the plasterboard profile industry and specifically designed a light gauge slitting machine adapted to the industry. This light gauge slitting machine features a specially optimized cutter shaft structure and tension control system, enabling precise processing of ultra-thin metal materials of 0.3mm-0.8mm. This effectively avoids deformation problems during thin material slitting, ensuring accurate narrow strip dimensions and smooth edges, laying the foundation for subsequent plasterboard profile forming.

2) High-Efficiency Production

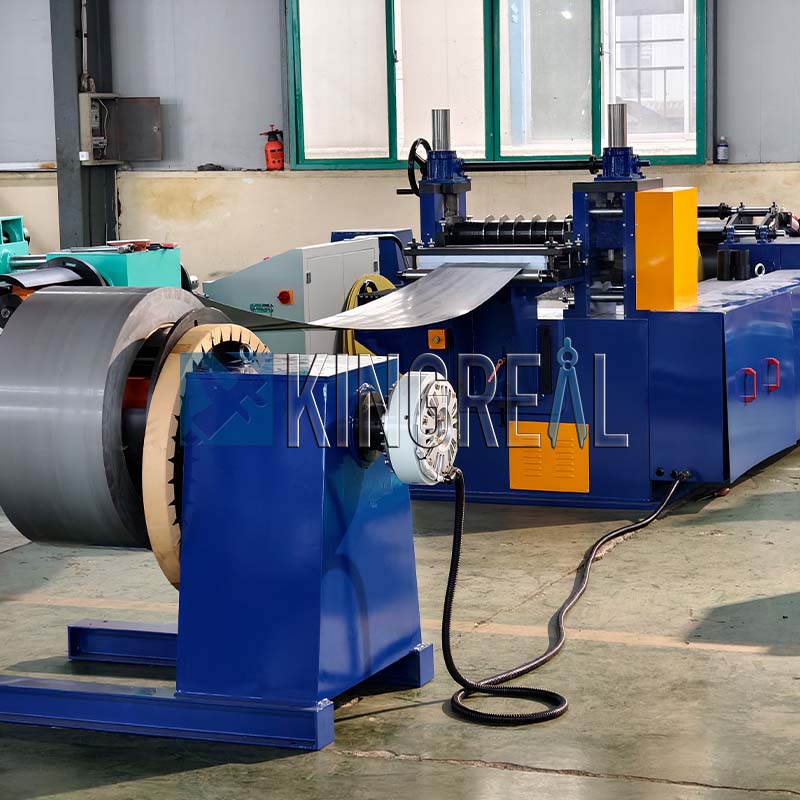

Different configurations of metal slitting lines have significantly different slitting speeds. Currently, the most common metal slitting machine speeds on the market are 120m/min and 230m/min, which can meet the production needs of manufacturers of different sizes. To achieve efficient and automated production, fully automated metal slitting lines on the market are equipped with a series of precision components, including a decoiler, main slitter, recoiler, etc.

For manufacturers with high production demands who require significantly improved high-speed production efficiency, KINGREAL can equip metal slitting machines with dual slitter head. This completely eliminates efficiency losses caused by downtime for blade changes, ensuring the metal slitting line always operates at high efficiency and further improving the overall production efficiency of plasterboard profiles.

3) Precise Cutting

Plasterboard profiles require extremely high precision in cutting narrow metal strips. The width tolerance and edge smoothness of the strips directly affect the subsequent cold bending forming effect. High-quality metal slitting lines, equipped with professional belt tension stations, provide stable and uniform tension during the materials transmission process, effectively preventing the materials from becoming too loose or too tight during slitting, ensuring a smooth and orderly slitting process, and reducing slitting deviations at the source. Meanwhile, the rational design of the belt tension station can effectively avoid frictional scratches between the sheet surface and equipment components, maximizing the surface smoothness of the metal and further improving the quality of the narrow metal strips.

Cost Analysis of Metal Slitting Lines in Plasterboard Profiles

For plasterboard profile manufacturers, controlling production costs directly affects the company's profitability. As a core upstream equipment, the selection and upgrading of metal slitting lines directly impacts material utilization, production efficiency, and overall costs. How to maximize ROI through metal slitting machine upgrades has become a key focus for many manufacturers.

(1) Metal Slitting Machine Speed

For large plasterboard profile manufacturers, with high production capacity and stable production batches, a high-speed metal slitting machine with a speed of 230m/min is suitable. High-speed metal slitting lines can quickly complete the slitting of metal coils, significantly improving production efficiency and reducing equipment downtime. Simultaneously, precise slitting accuracy reduces material loss, further controlling costs and achieving cost optimization for large-scale production. For small and medium-sized plasterboard profile manufacturers, with relatively moderate production capacity, there is no need to pursue excessively high slitting speeds. Medium-speed metal slitting machines with an economical slitting speed of 80-120m/min are more advantageous, meeting daily production needs while avoiding the high energy consumption and high investment associated with high-speed metal slitting lines. Furthermore, the maintenance cost of medium-speed metal slitting machines is relatively low, effectively reducing the overall production costs of small and medium-sized manufacturers and achieving a balance between input and output.

(2) Waste Collection from Metal Slitting Machine

During the slitting process, a certain amount of waste material is generated. If it is not collected and processed in a timely manner, it will not only cause material waste but also affect the production environment and increase cleaning costs. A high-quality metal slitting line equipped with a waste collection device can simultaneously collect the waste material generated during the slitting process, achieving centralized collection of waste material for subsequent recycling and reuse. This improves the utilization rate of metal materials, reduces material waste, and lowers waste disposal costs.

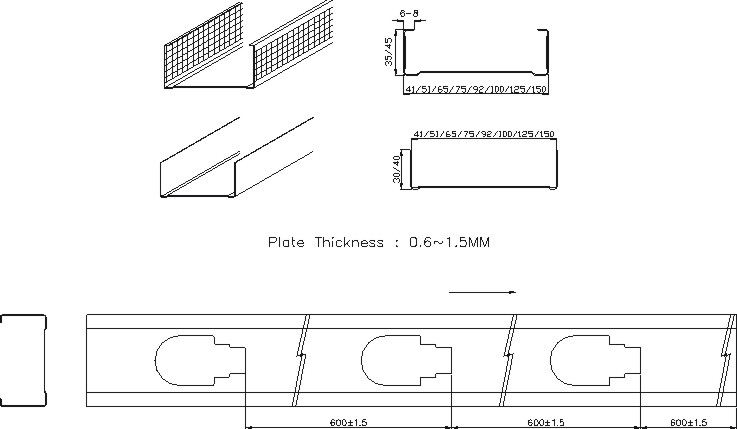

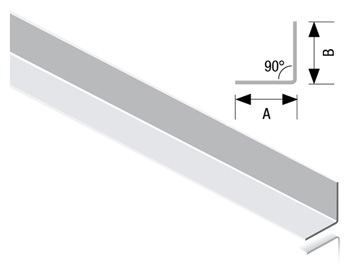

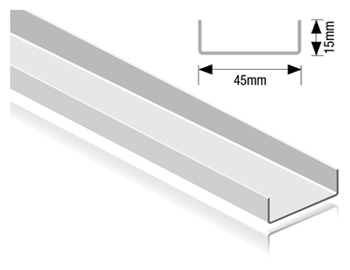

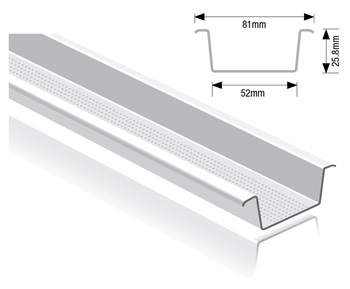

Drawings About Plasterboard Profiles

Metal Slitting Line Selection Guide

The following are some suggestions for plasterboard profile manufacturers when purchasing metal slitting machines.

In the plasterboard profile industry, metal slitting machines are no longer simply for cutting metal materials; they are core components ensuring plasterboard profile precision, improving production efficiency, and controlling production costs. To quickly obtain a metal slitting machine quote suitable for the plasterboard profile industry and learn more about metal slitting line configuration and selection tips, please contact KINGREAL!
