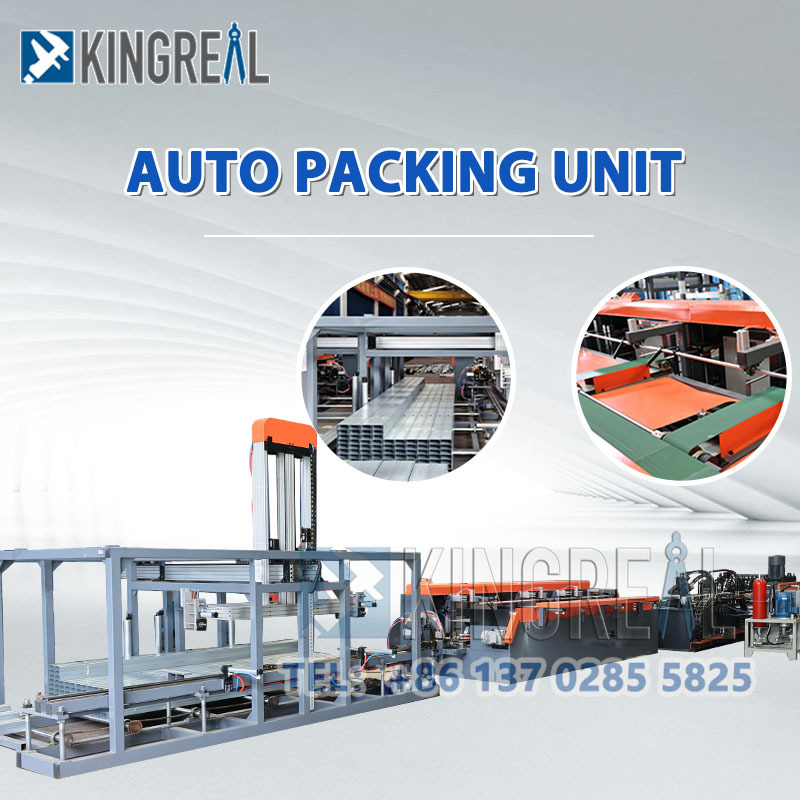

Coil To Pack System For Drywall Profiles

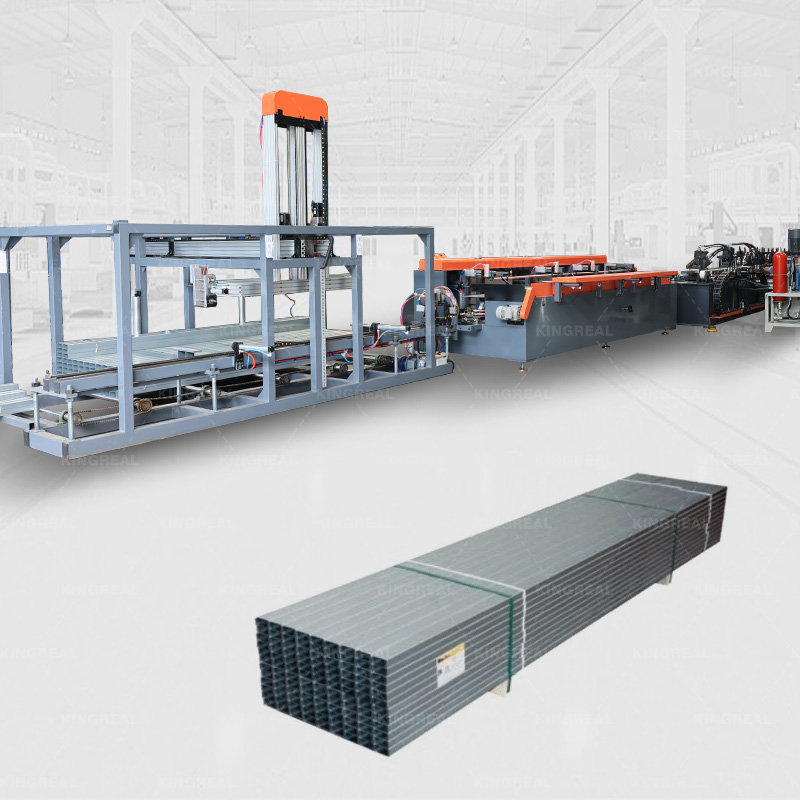

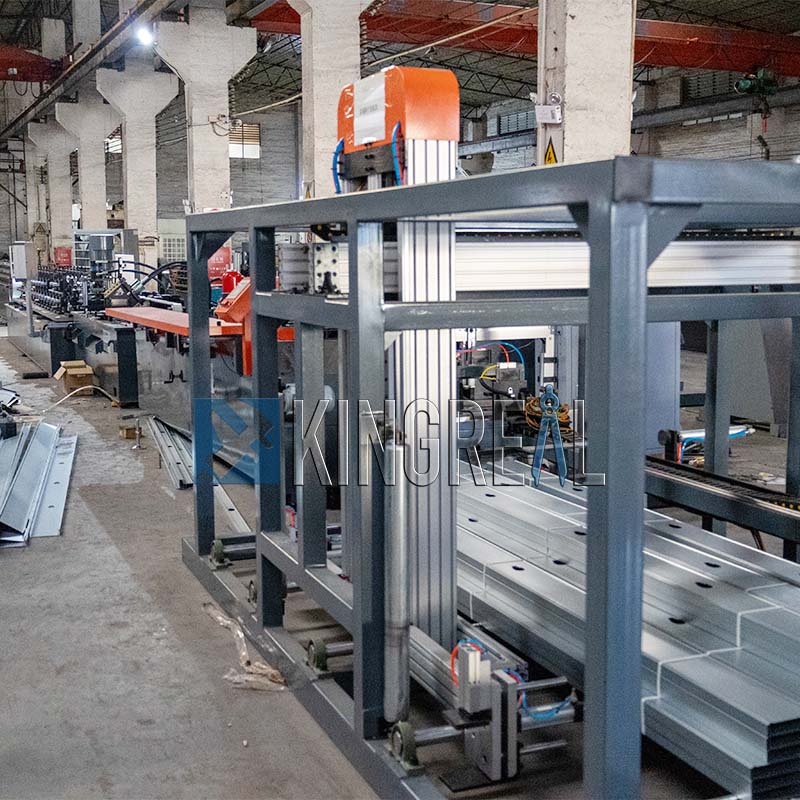

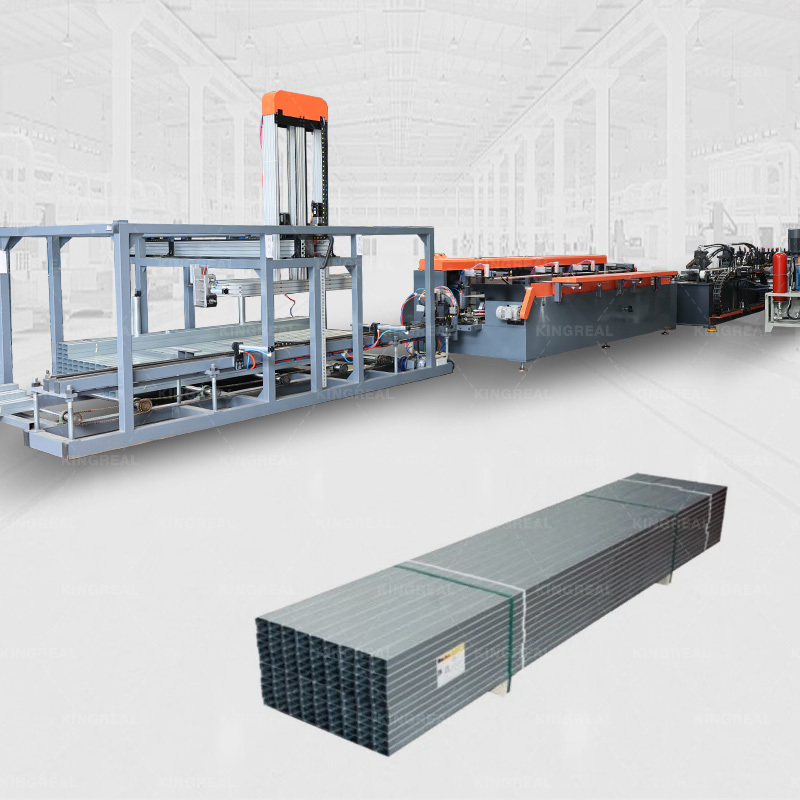

KINGREAL has specifically designed a coil to pack system for drywall profiles, seamlessly integrating a dedicated packaging unit with the drywall profile machine. This creates a fully automated production line that spans the entire process—from the input of steel coil raw materials to the final packaging and shipment of finished products. This specialized coil to pack system for drywall profiles operates without the need for manual intervention; it directly receives the studs and tracks after they have undergone roll forming and punching processes, automatically performing neat stacking and precise bundling. It packages the profiles into bundles according to the specific quantity requirements of each project, allowing for immediate loading and shipment upon completion. This truly realizes an efficient, integrated workflow encompassing production, packaging, and delivery. The introduction of the coil to pack system for drywall profiles not only thoroughly optimizes the traditional production workflow for c stud and u track roll forming machines but also fundamentally boosts production efficiency while significantly reducing labor costs.

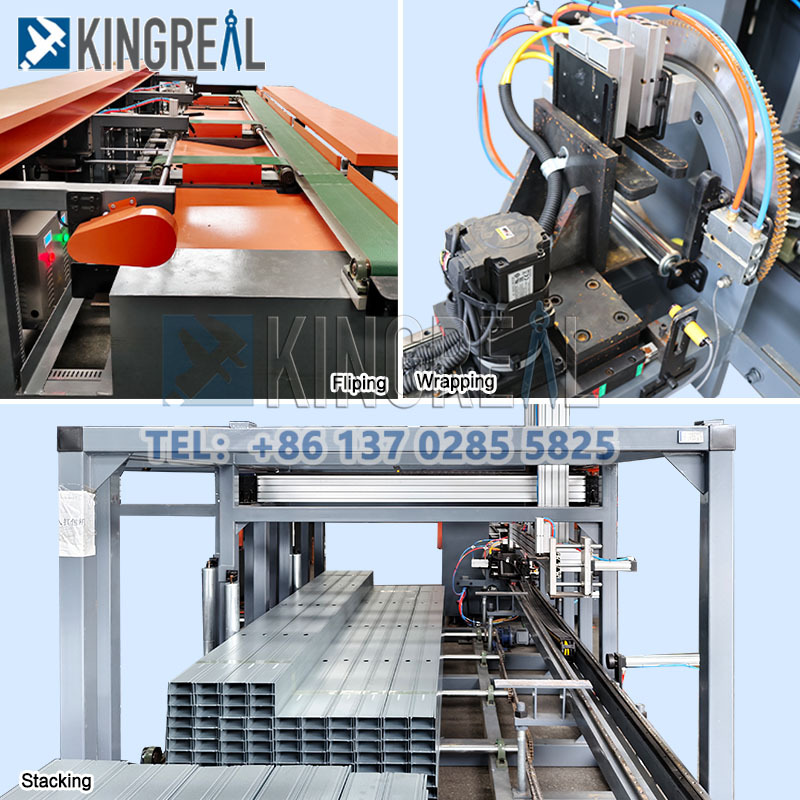

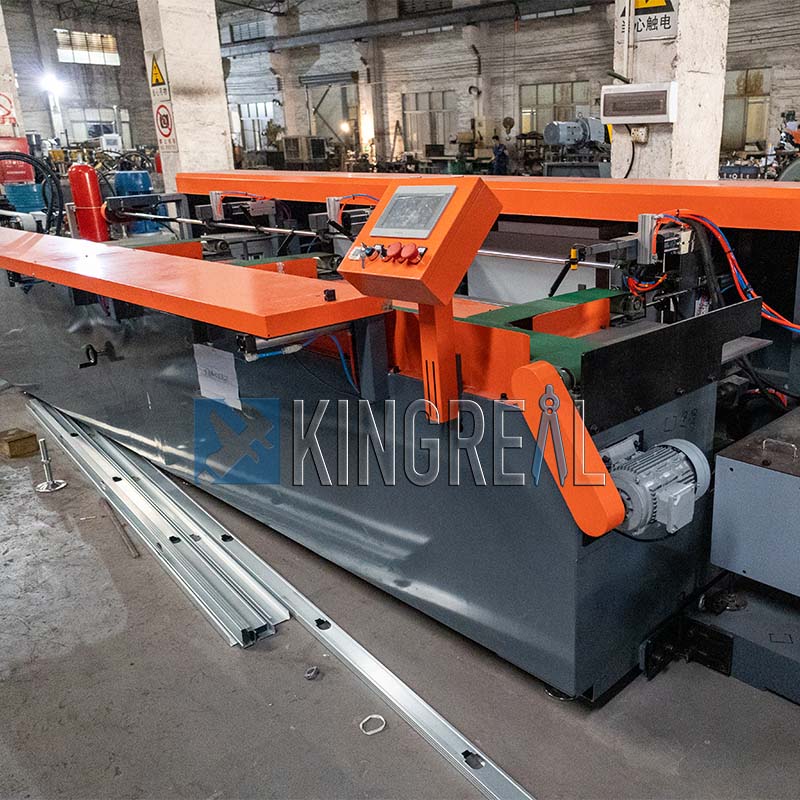

Feeding Section--Fastening Section--Strapping Section--Pulling Section--Stacking Section

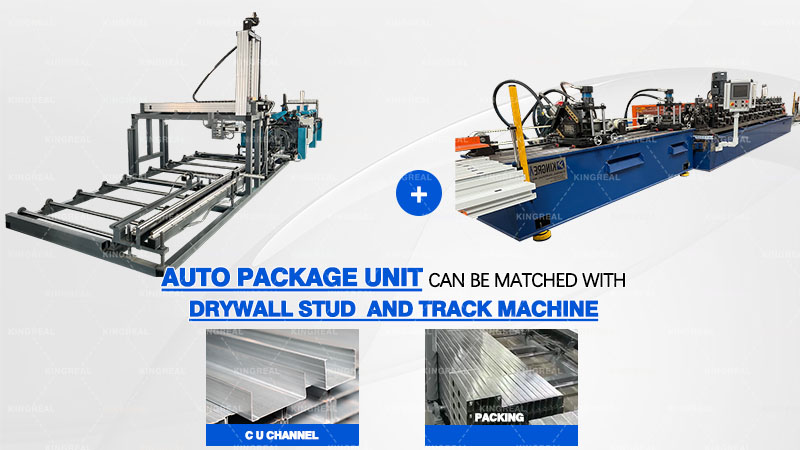

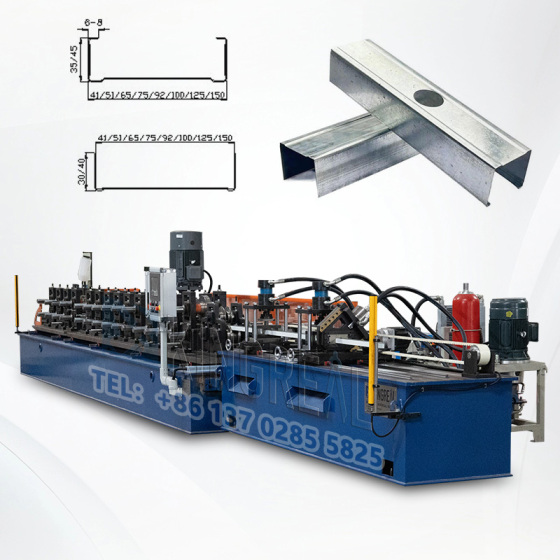

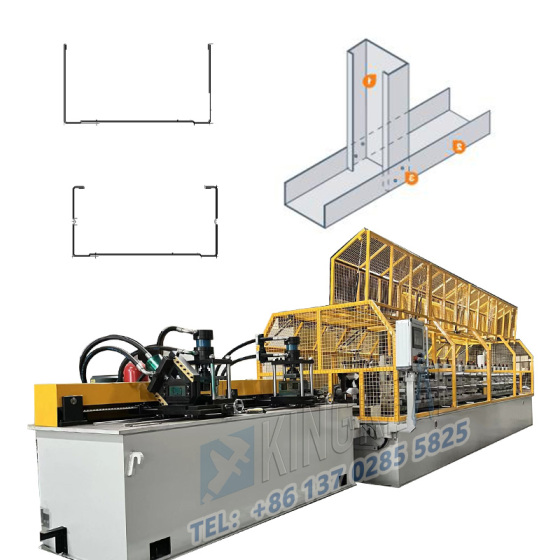

KINGREAL typically provides clients with a complete production solution that pairs its coil to pack system for drywall profiles with drywall profile machines. This comprehensive solution encompasses a decoiler, a roll forming machine, and a flying punching and cutting station, all integrated with a specialized packaging system. Together, these components form a fully automated production line—spanning from raw material handling to finished product packaging—that achieves completely unmanned and highly efficient operations for drywall profile manufacturing. Within this integrated solution, the decoiler is responsible for smoothly unwinding the steel coil raw material and feeding it into the roll forming machine. The roll forming machine then processes the steel coil into stud and track according to preset specifications. The flying punching and cutting station subsequently performs precise punching and length-specific cutting on the formed profiles, tailored to client requirements. Finally, the coil to pack system for drywall profiles receives the cut profiles, automatically stacks and bundles them into compact packages, and arranges them into orderly pallets. This entire workflow features seamless transitions and highly efficient coordination, resulting in a substantial boost to overall production efficiency. To accommodate the diverse production requirements of various clients, the KINGREAL team—drawing upon extensive industry expertise—has developed a range of coil to pack system solutions. These systems feature flexible configurations that can be tailored to meet core client specifications, including desired bundle lengths, profile dimensions, bundle volumes, and required levels of automation.

1)High-Speed

The coil to pack system for drywall profiles operates in perfect synchronization with the drywall profile machine, achieving speeds of up to 60m/min. Finished studs and tracks produced by the c stud and u track roll forming machine require no waiting time; they immediately enter the packaging unit to undergo stacking and strapping processes. This high-speed, automated coil to pack system significantly reduces the need for manual labor, eliminating the need to assign dedicated workers to handle tedious tasks such as stacking, sorting, and strapping. This not only results in substantial savings on labor costs but also eliminates the efficiency fluctuations and errors often associated with manual operations, ensuring that every batch of finished studs and tracks is packaged rapidly and thereby shortening the overall production cycle.

2)Integrated Multi-functionality

The coil to pack system for drywall profiles offers a comprehensive, one-stop solution for processing drywall profiles—handling a complete sequence of operations including feeding, interlocking, stacking, wrapping, pulling, and palletizing. It requires no additional auxiliary equipment, thereby significantly simplifying the production workflow and reducing capital investment costs. To meet the unique and personalized requirements of diverse clients, KINGREAL has designed this coil to pack system for drywall profiles with ample flexibility and adaptability. For clients requiring product labeling, a dedicated labeling module can be seamlessly integrated into the coil to pack system. This labeling function utilizes advanced fiber-optic detection technology, allowing for manual adjustment of the label placement position based on the specific stud and track specifications; this ensures flexible operation as well as precise and error-free positioning. Furthermore, the coil to pack system employs a vacuum suction mechanism for label pickup, ensuring stable retrieval and convenient operation. This effectively prevents common issues such as crooked or missed labels, guaranteeing that every packaged batch of finished studs is clearly marked with relevant information, thereby facilitating subsequent warehousing, transportation, and inventory management.

3)Quality Assurance

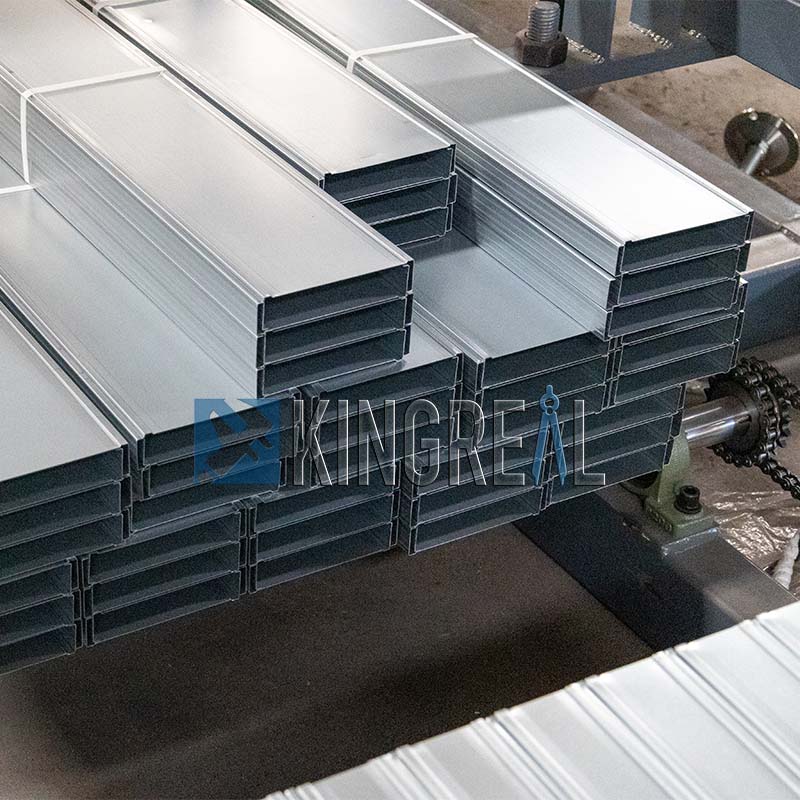

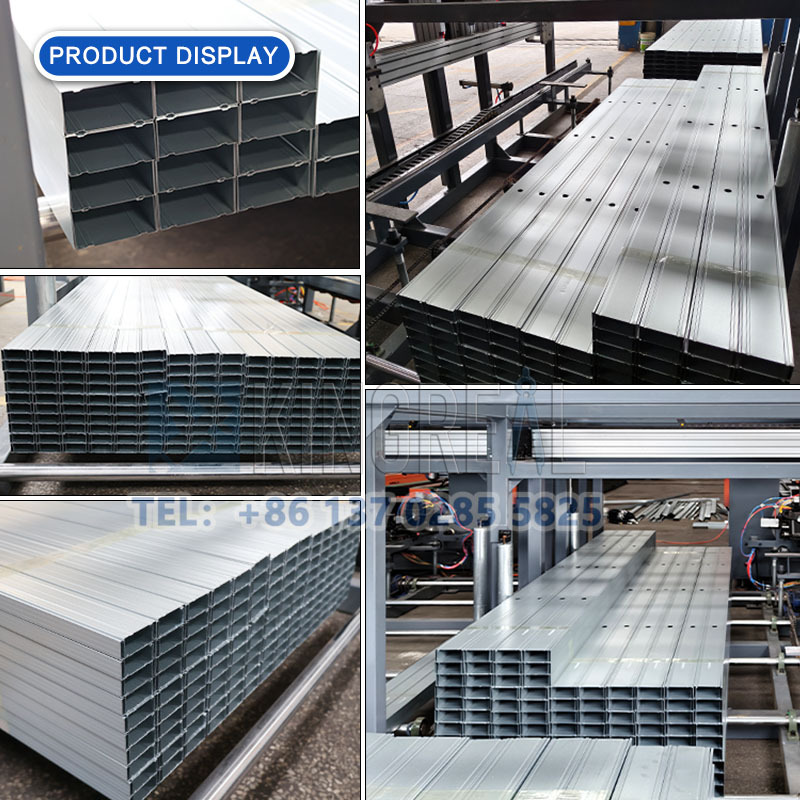

Through a multi-stage, precision-engineered protection design, the coil to pack system for drywall profiles ensures that the packaged stud profiles remain free of scratches and deformation, while being securely strapped. This effectively resolves the issues—such as drywall profile damage and loose strapping—that are frequently associated with traditional packaging methods. During the feeding stage, the strapping system employs a design featuring SC pneumatic cylinders fitted with soft rubber heads. The soft texture of these rubber heads effectively cushions the impact between the cylinders and the drywall profiles, preventing scratches and dents on the stud and track surfaces and thereby maximizing the preservation of the profiles' aesthetic integrity. In the core strapping phase, a dual-rod cylinder design is utilized to effectively prevent the profiles from rotating during the bundling process, ensuring that every finished bundle is square in shape and neatly aligned—facilitating easy storage, stacking, and transportation. During the material extraction phase, dual-rod cylinders are again employed; the air pressure can be individually adjusted based on the thickness of the profile material, allowing for flexible pressure regulation to suit profiles of varying gauges. This approach ensures smooth material extraction while effectively preventing the drywall profiles from deforming due to excessive mechanical stress. This comprehensive strapping system guarantees that every finished bundle of studs and tracks meets transportation standards, remaining secure and intact—without loosening or shedding materials—even when subjected to the bumps and impacts inherent in the shipping process.

Addressing the specific production contexts of different clients, KINGREAL offers a variety of flexible partnership models. We can provide the automatic packaging unit as a standalone solution, enabling clients to upgrade specific components of their existing c stud and u track roll forming machine without the need to replace their entire production lines. This approach facilitates the automation of the packaging stage—thereby significantly boosting overall production efficiency—while simultaneously minimizing the capital investment required for the upgrade. Alternatively, we offer fully integrated solutions that combine drywall profile machines with the coil to pack system for drywall profiles. This comprehensive package provides end-to-end, one-stop service—spanning equipment selection, installation, and commissioning through to post-sales operation and maintenance—empowering clients to rapidly establish automated production lines and successfully transition to advanced manufacturing models.

KINGREAL coil to pack systems are currently operating stably in client facilities across numerous countries and regions worldwide, allowing us to accumulate a wealth of practical application experience. To date, this coil to pack system for drywall profiles has been successfully implemented by customers in nations such as Saudi Arabia, Kazakhstan, and Mexico, where it continues to demonstrate consistent and reliable performance within the daily production operations of local factories.
