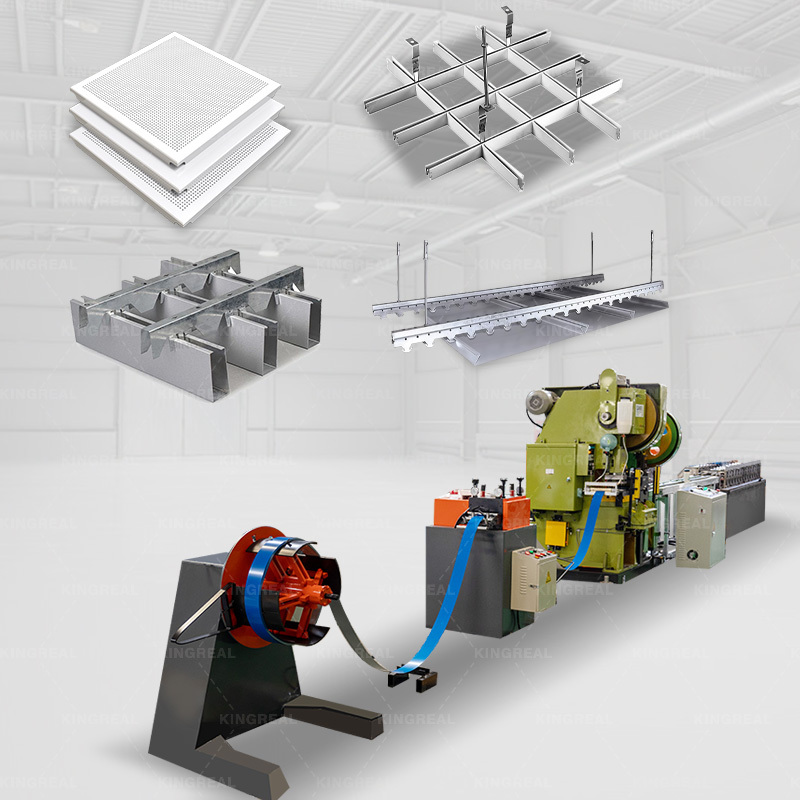

Machines for Suspended Ceiling Panels
KINGREAL is dedicated to manufacturing a diverse range of suspended ceiling making machines for clients, enabling the production of various types of suspended ceiling panels.
- KINGREAL
- Information
- Download
KINGREAL is dedicated to manufacturing a diverse range of suspended ceiling making machines for clients, enabling the production of various types of ceiling products. By utilizing profiles produced by other KINGREAL-supplied roll forming machines, these components can be assembled to form a complete suspended ceiling system that is both durable and aesthetically pleasing. Suspeded ceilings produced by this suspended ceiling making machines are widely utilized in venues such as hotels, offices, classrooms, and airports. They serve to artfully conceal ventilation and lighting systems situated above them; provide a mounting platform for fire safety systems; and offer significant sound absorption and noise reduction capabilities.
To address the diverse ceiling requirements of different settings, KINGREAL has developed a comprehensive system of suspended ceiling panels. This system primarily encompasses four major categories: metal ceiling tiles, open cell ceilings, baffle ceilings, and linear strip ceilings. Each profile type is supported by dedicated production machinery, balancing specialized functionality with operational flexibility to meet clients' unique production demands.

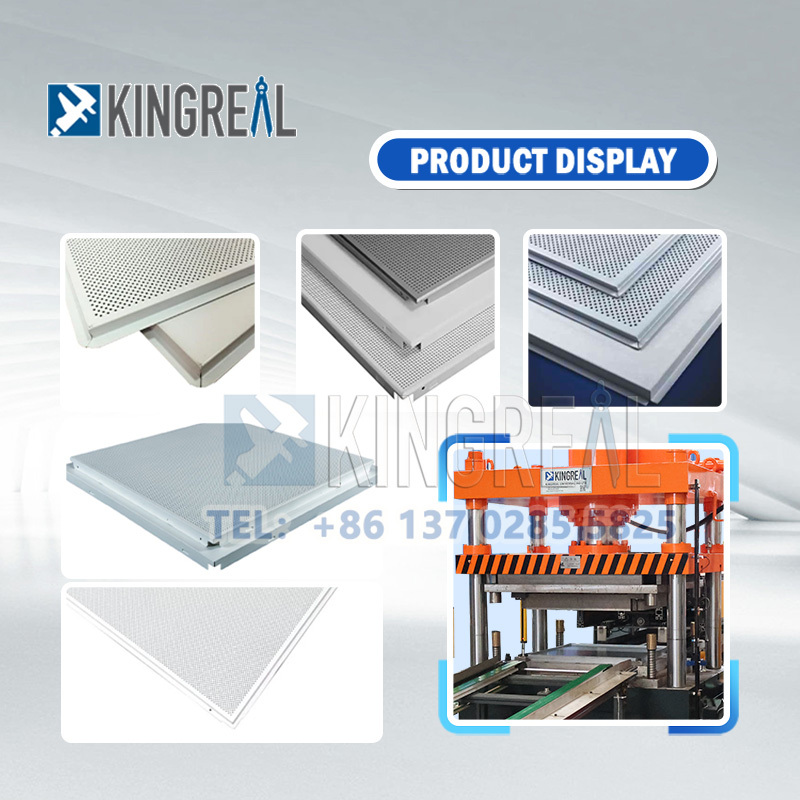

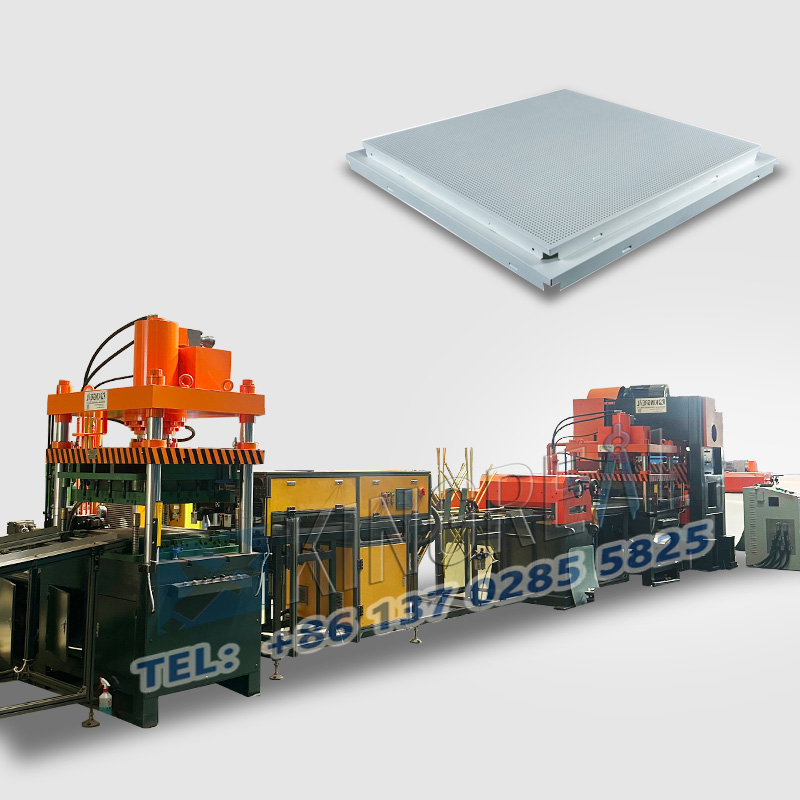

Metal Ceiling Tile Making Machine
This metal ceiling tile making machine offers flexible configuration options regarding the integration of a punching machine, based on client requirements. When equipped with a punching unit, the metal ceiling tile making machine can produce perforated ceiling tiles; conversely, without the punching unit, it produces plain ceiling tiles, thereby catering to varying sound absorption and decorative needs. For environments with particularly stringent requirements for acoustic performance, KINGREAL offers the option to additionally equip the metal ceiling tile making machine with a metal ceiling tiles fleece gluing machine. By applying specialized sound-absorbing fabric to the ceiling surface, this feature further enhances noise reduction capabilities, making it ideal for venues with high acoustic standards—such as hotels and conference rooms.
Furthermore, the metal ceiling tile making machine supports the production of various ceiling tile installation types, including clip-in, lay-in, and tegular. Through the precise adjustment of production parameters, the metal ceiling tile making machine offers flexible control over production speed, output volume, and finished product specifications, ensuring an optimal balance between production efficiency and product consistency.
➡️ Watch the video:
Common Sizes About Metal Ceiling Tiles
24” x 24” Ceiling Tile (2’ x 2’ Ceiling Tile)
24” x 48” Ceiling Tile (2’ x 4’ Ceiling Tile)
12” x 12” Ceiling Tile (1’ x 1’ Ceiling Tile)

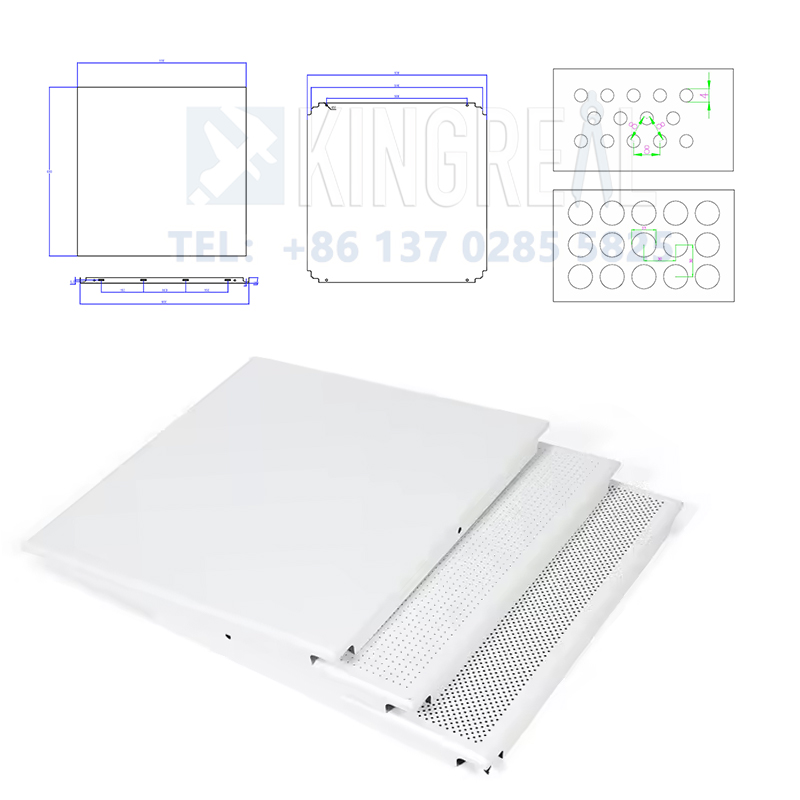

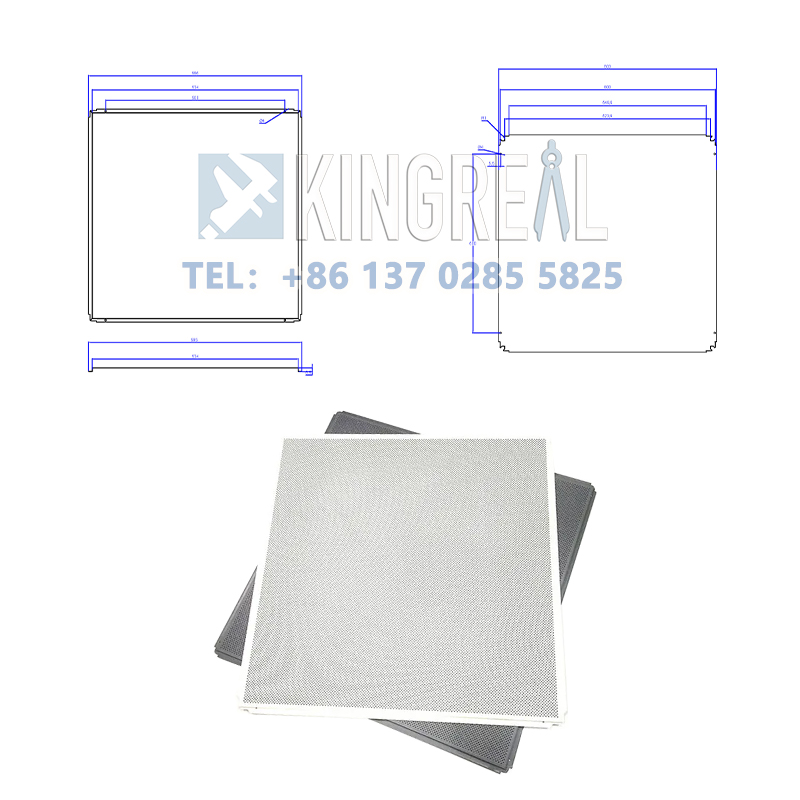

Drawing About Metal Ceiling Tiles

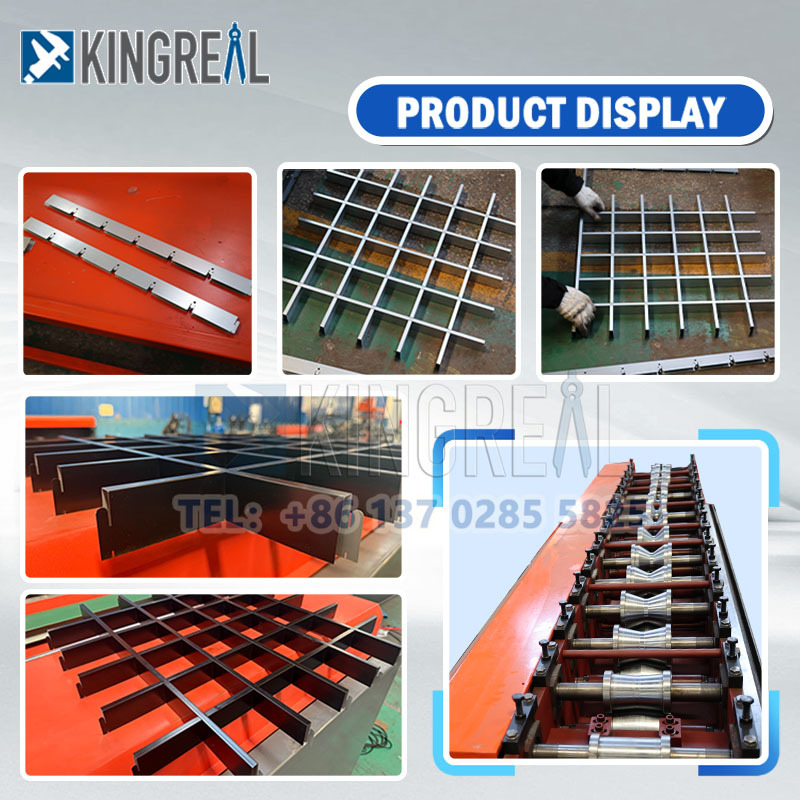

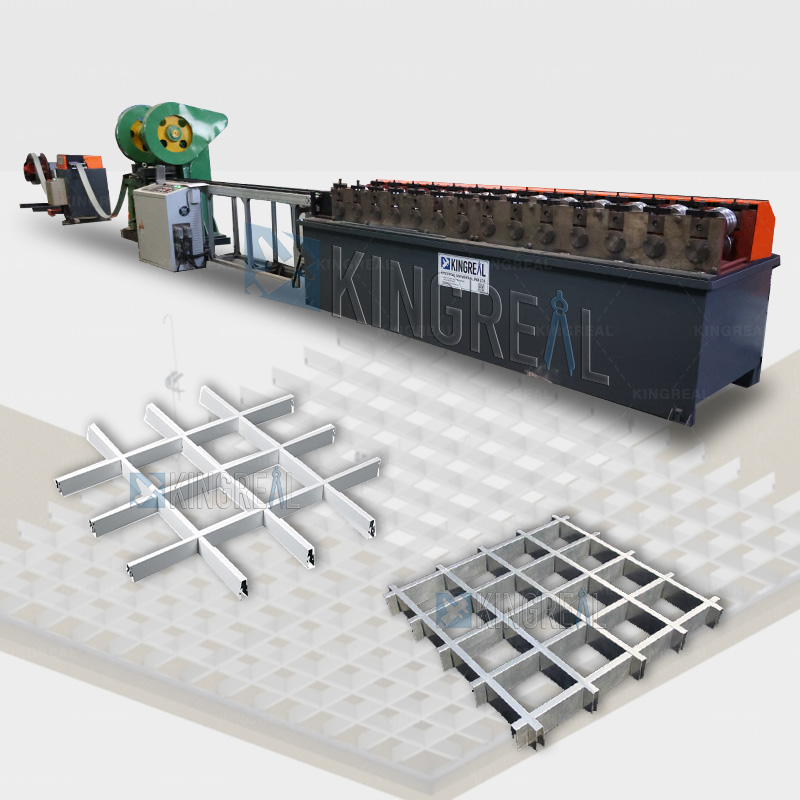

Open Cell Ceiling Grid Machine
This open cell ceiling grid machine is specifically designed for the production of various open cell ceiling types, including C-type, U-type, and pyramid-type grids. The open cell ceiling machine offers flexible configuration options, allowing it to be equipped with either a 16-ton or a 63-ton punching unit. This enables the execution of either single-hole sequential punching or multi-hole simultaneous punching, thereby ensuring high punching precision while allowing production efficiency to be flexibly adjusted according to the scale of operations. The open cell ceiling machine boasts a maximum production speed of up to 30m/min—a speed that is fully adjustable—striking an optimal balance between high-efficiency production and product quality. With production safety in mind, KINGREAL offers the option to equip the open cell ceiling machine with specialized protective shields, effectively mitigating potential hazards during the manufacturing process and ensuring the personal safety of the operators.
➡️ Watch the video:
Common Sizes About Grilyato Ceilings
| Open Cell Ceiling Grid Cell Size | 75mm x 75mm, 100mm x 100mm, 150mm x 150mm, 200mm x 200mm, 300mm x 300mm |
| Web Height | 50 mm |
| Width | 15 mm |
| Thickness | 0.35 mm (G.I.), 0.45 mm (Aluminum) |

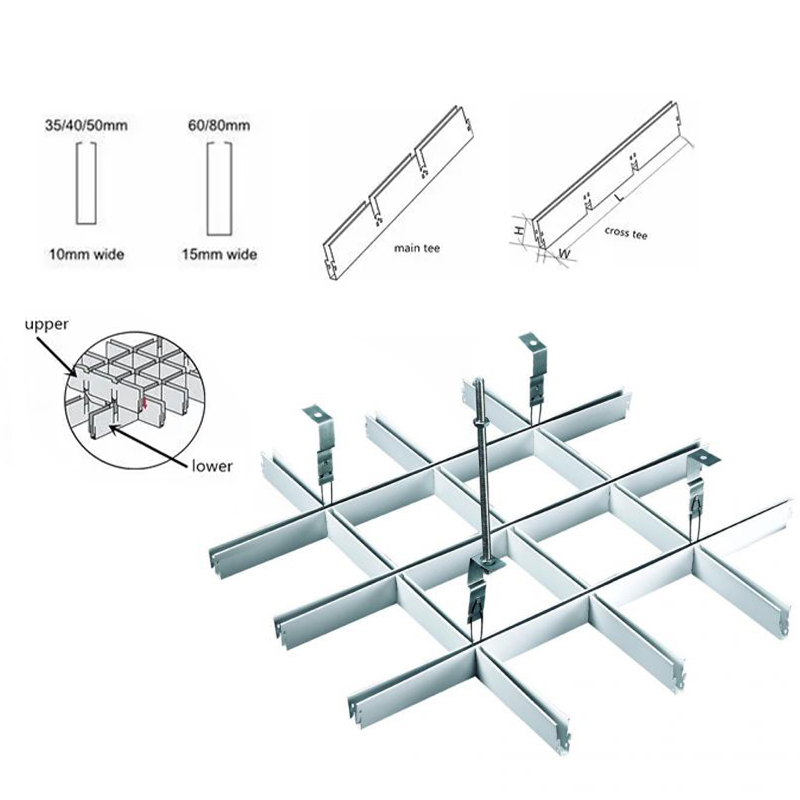

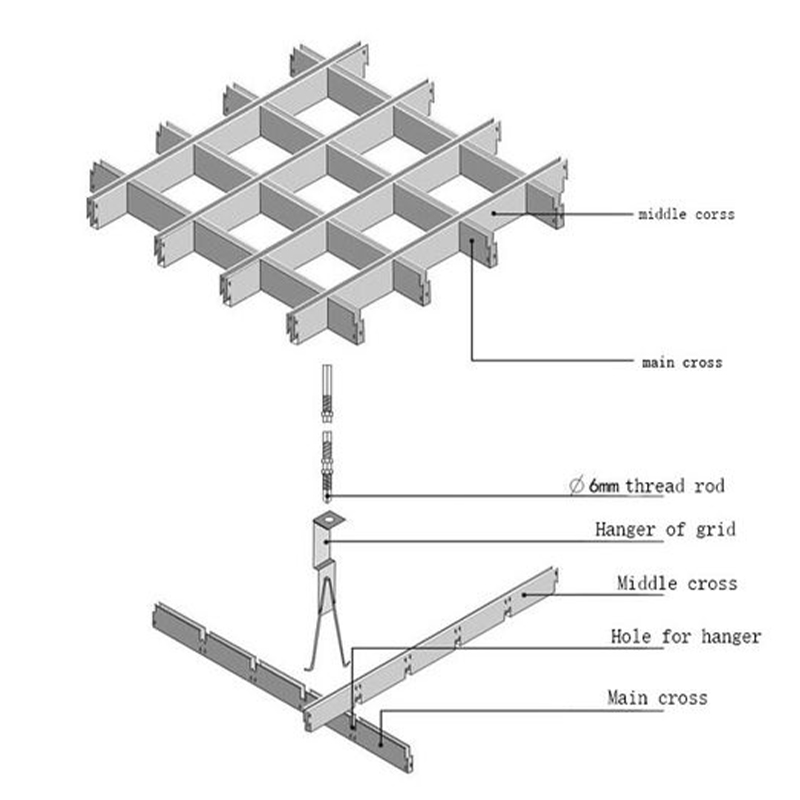

Drawing About Grilyato Ceilings

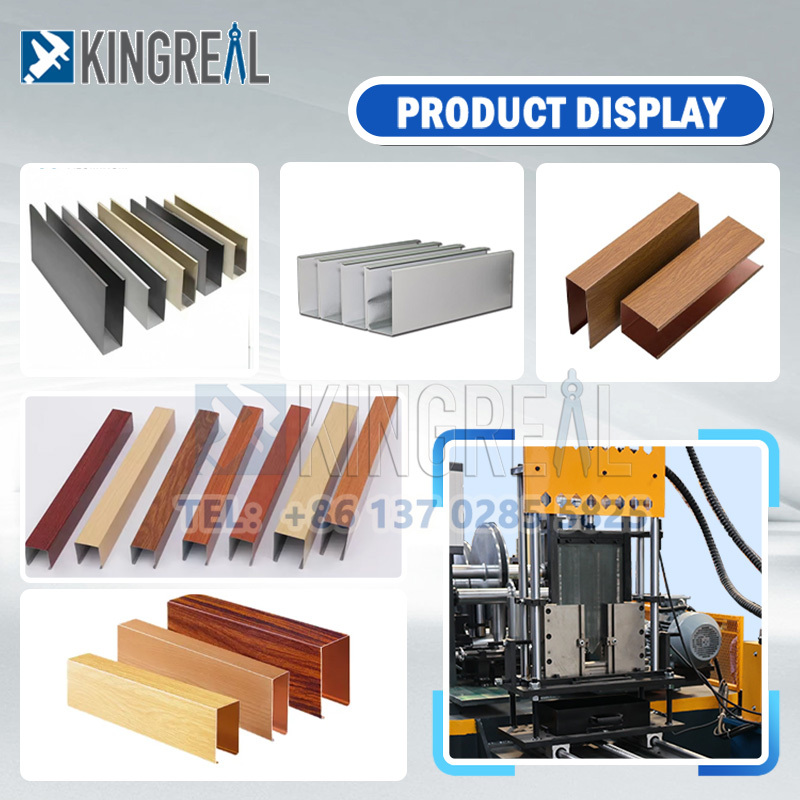

The baffle ceiling machine specializes in the production of baffle ceilings. It integrates seamlessly with the corresponding baffle ceiling carrier machine to create a complete, end-to-end solution for baffle ceiling systems. To accommodate the diverse budgets and production requirements of different clients, KINGREAL offers two distinct baffle ceiling machine options: an economical model and a high-configuration model. The economical model is designed to meet basic production needs, offering exceptional cost-effectiveness; conversely, the high-configuration model delivers superior performance and guaranteed precision, making it ideally suited for meeting the bespoke decorative requirements of high-end venues.
➡️ Watch the video:
Common Dimensions About Baffle Ceilings
| Material | Steel — BGL (Bare Aluminum-Zinc Coated Steel — a composite steel material featuring an aluminum-zinc alloy coating with a composition of 55% aluminum, 43.4% zinc, and 1.6% silicon). |
| Sheet Thickness | 0.50 mm and 0.6 mm |
| Standard Cross-Sectional Dimensions | e.g., 25x100, 25x150, 50x50, 50x100, and 50x150 Non-standard cross-sectional dimensions are also available (Width: Min. 20 mm, Max. 100 mm; Height: Min. 50 mm, Max. 200 mm). |
| Length | Determined according to design requirements — Maximum length is 4 meters. |

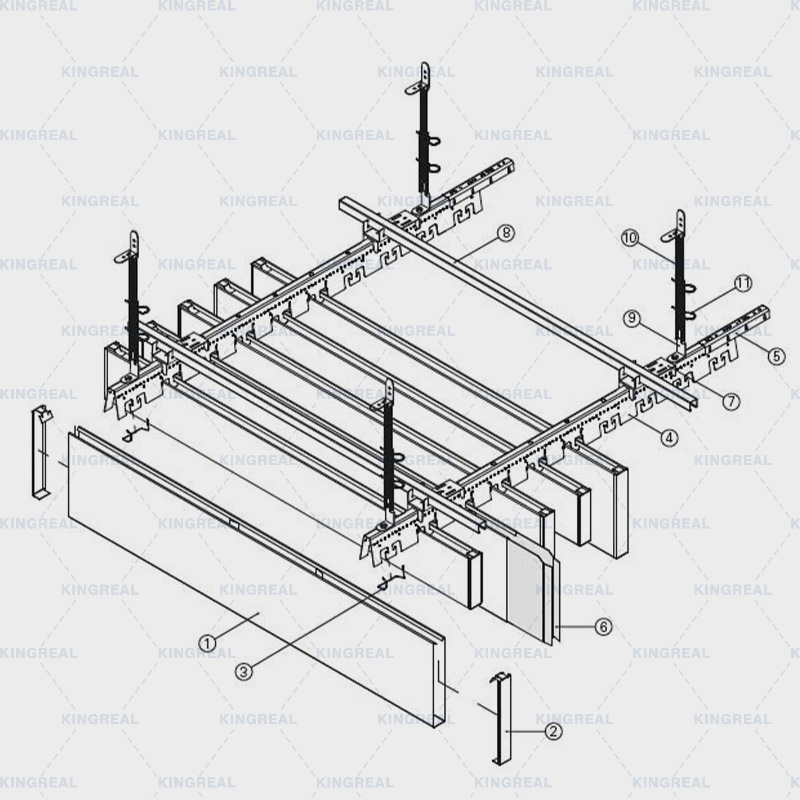

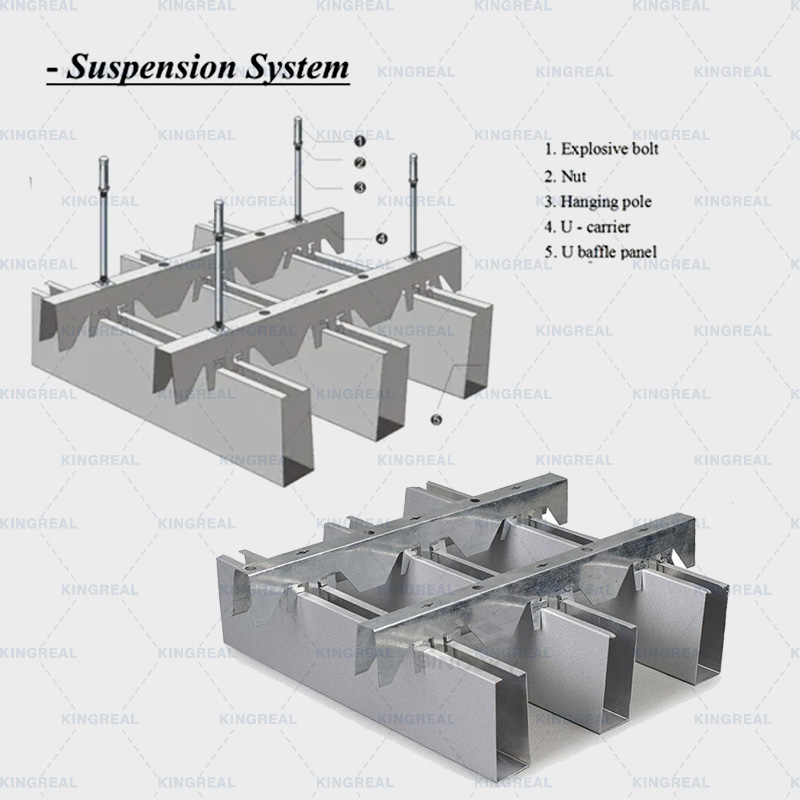

Drawing About Baffle Ceilings

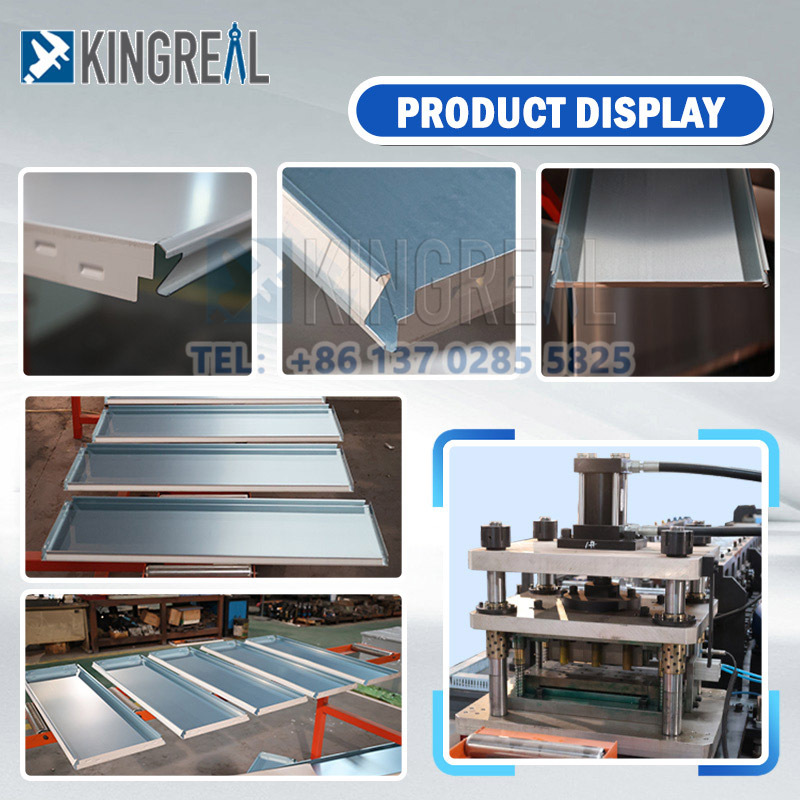

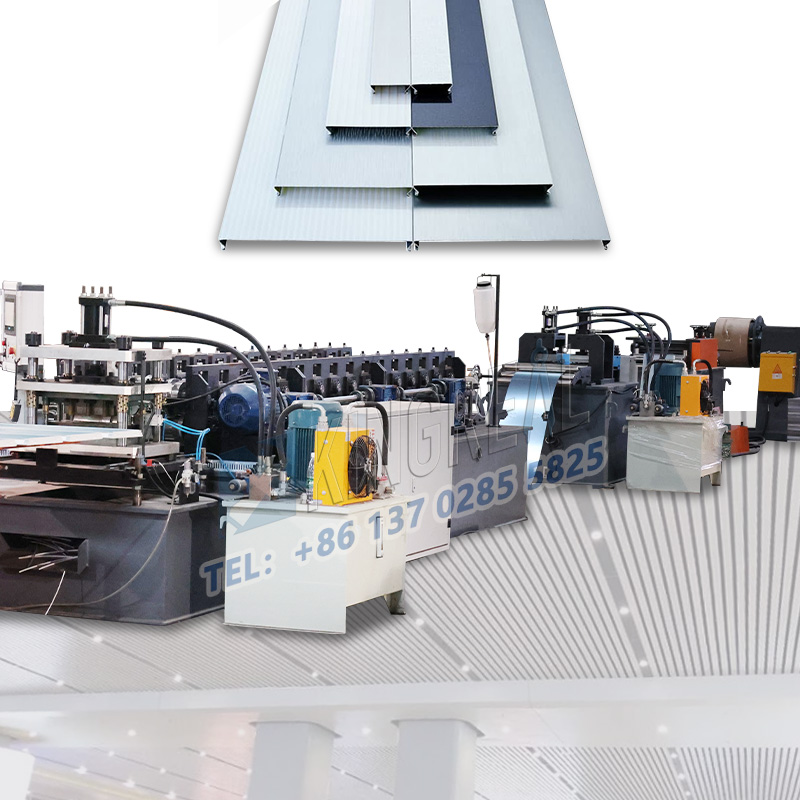

The linear strip ceiling machine is specifically designed for the manufacture of various types of linear strip ceilings. When paired with the corresponding linerar strip ceiling carrier machine, it enables the rapid assembly of a complete strip ceiling system—offering both ease of installation and an aesthetically impressive appearance. To accommodate the diverse project requirements of different clients, KINGREAL offers two linear strip ceiling machine machine configurations: single-specification and multi-specification. The single-specification linear strip ceiling machine focuses on producing strip ceilings of a single specific size, making it ideal for large-volume batch orders; conversely, the multi-specification linear strip ceiling machine is capable of producing strip ceilings in multiple sizes on a single unit, offering exceptional flexibility and the ability to quickly adapt to the distinct requirements of different projects.
➡️ Watch the video:
Common Dimensions About Linear Strip Ceilings
| Types | R84, C, G, F, B, S |
| Width | 100 mm / 150 mm / 200 mm / 300 mm / Customized Width |
| Length | Customized |
| Depth | 16 mm |
| Thickness | 0.5 mm / 0.7 mm |

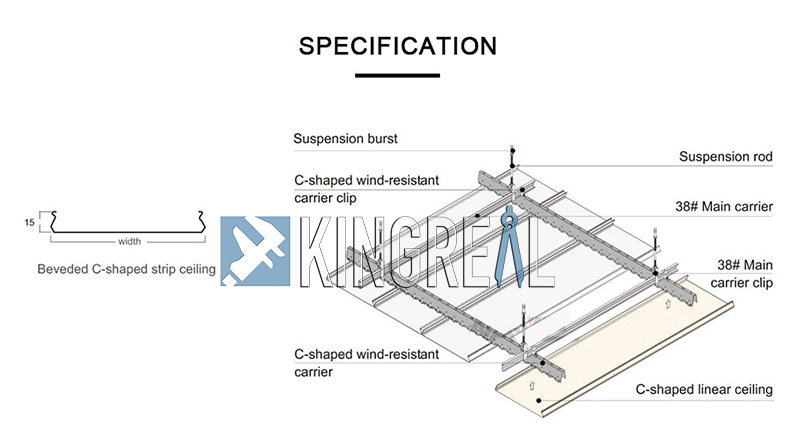

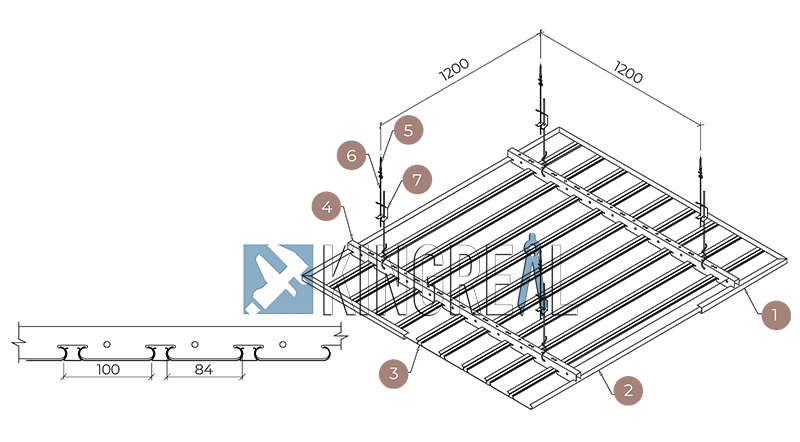

Drawing About Linear Strip Ceilings
Key Features of KINGREAL Suspended Ceiling Making Machine
High Production Speed and Efficiency: KINGREAL suspended ceiling making machine boasts extremely high output rates, significantly shortening production cycles.
Production Flexibility: The suspended ceiling making machines allow for easy switching of production parameters to meet a wide variety of manufacturing requirements.
Integration of Auxiliary Components: Based on practical requirements, the KINGREAL team can equip suspended ceiling making machines with various auxiliary components—such as feeding trolleys, metal sheet cleaning machines, metal ceiling tiles fleece gluing machines, and protective shields—to significantly enhance production efficiency.
Maximized Material Utilization: KINGREAL suspended ceiling making machines process materials directly from coils, ensuring the most efficient use of raw materials and thereby minimizing waste to the greatest extent possible.
KINGREAL — A Comprehensive Provider of Suspended Ceiling System Solutions
As a comprehensive provider of suspended ceiling system solutions, KINGREAL focuses not only on the R&D and manufacturing of various suspended ceiling making machines but also supplies the full range of auxiliary equipment required for complete suspended ceiling systems, thereby covering the entire process from profile production to final system assembly. By integrating profiles produced by various roll forming machines, we create robust, aesthetically pleasing, and functional suspended ceiling systems that comprehensively address the unique and personalized needs of diverse venues and clients. We provide customers with one-stop services for both roll forming machine and systems, empowering them to boost production efficiency and reduce operational costs.
Contact Us!
For more information about KINGREAL suspended ceiling making machines, feel free to contact us!
