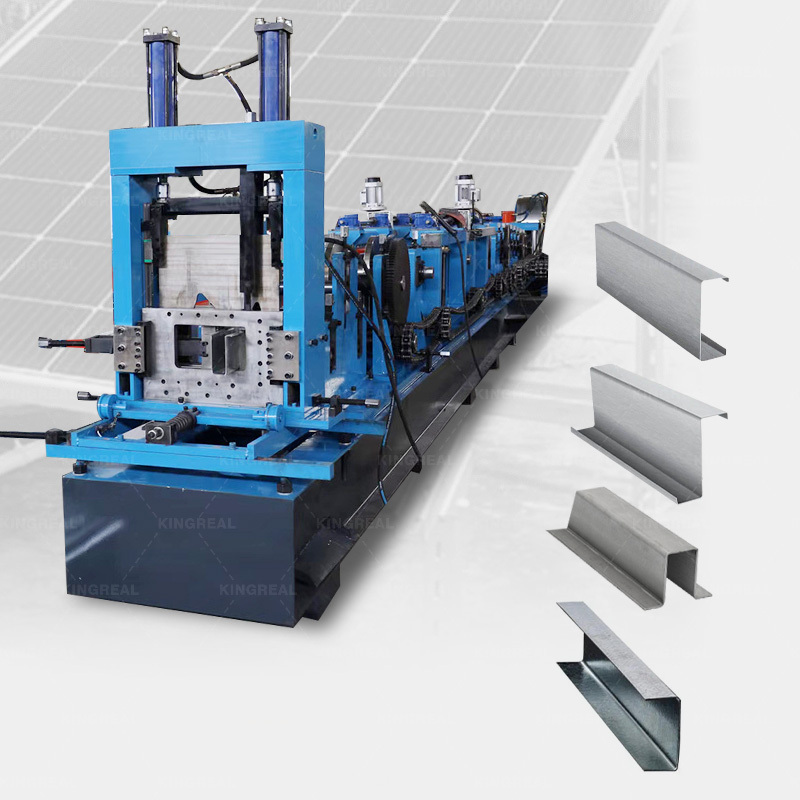

Roll Forming Machine for Photovoltaic System
KINGREAL roll forming machines are specifically designed for photovoltaic (PV) system installation, flexibly producing purlins in various geometries, including C-shaped, U-shaped, Z-shaped, Ω-shaped, and Sigma-type, as well as solar channels in various sizes such as 41x21, 41x41, and 41x61mm.
- KINGREAL
- China
- Information
- Download
Video About Roll Forming Machine for Photovoltaic System
Introduction to Roll Forming Machine for Photovoltaic System

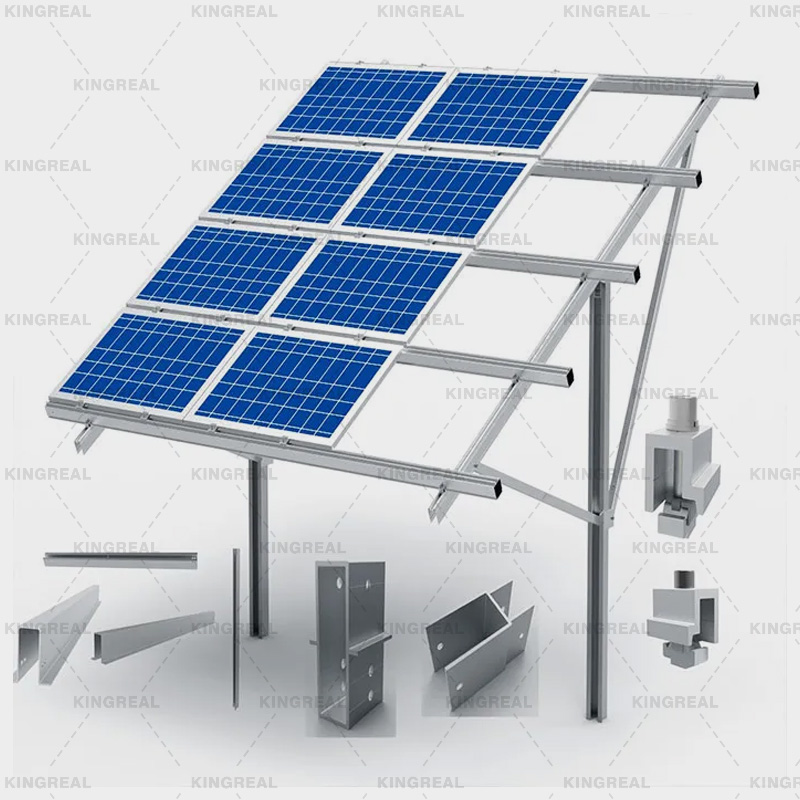

KINGREAL roll forming machines are specifically designed for photovoltaic (PV) system installation, flexibly producing purlins in various geometries, including C purlin, U purlin, Z purlin, Ω purlin, and Sigma purlin, as well as solar channels in various sizes such as 41x21, 41x41, and 41x61mm. The profiles produced by these roll forming machines are a crucial component of photovoltaic systems, characterized by high strength, high load-bearing capacity, and durability, making them the optimal choice for supporting solar panel structures. Whether you need a rooftop PV system or a ground-mounted PV system project, KINGREAL can provide a range of roll forming machines to meet your specific needs. KINGREAL offers a variety of roll forming machines for photovoltaic systems, including: ◀ C purlin machine, U purlin machine, Z purlin machine, Sigma channel roll forming machine, Solar photovoltaic stent machine, Solar channel machine▶. |  |
Ideal Solution for C/Z/U/Ω/M Purlin Structural Profile Production
C/Z/U/Ω/M purlin forming machines provide companies with fast, precise, and high-quality structural profiles for photovoltaic systems. These purlin forming machines are widely used in solar power plants, steel structures, and infrastructure projects. With their fully automated, high-speed production, customization capabilities, and ability to handle materials of various thicknesses, these machines help reduce costs, improve efficiency, and maintain top-notch product quality.
(1) C Purlin Machine
Introduction to C Purlin Machine The C purlin machine produces C50 to C200 type C purlins (base width 50–200 mm) and typically processes 1.5–3.0 mm thick galvanized steel sheets (Q355–G550). The C purlins produced by this C purlin machine provide necessary support for solar panels in photovoltaic systems. The “C” shape enhances its load-bearing capacity while minimizing weight.
Features of C Purlin Machine
|  |
(2) Z Purlin Machine
Introduction to Z Purlin Machine The Z purlin machine is specifically designed for the efficient and high-precision production of Z purlins. This Z purlin machine can produce Z purlins in various sizes, including: web height: 100mm–300mm, flange width: 40mm–80mm, material thickness: 1.5mm–3.0mm. Z purlins serve as a support structure for solar panel installations, ensuring their stability and alignment.
Features of Z Purlin Machine
|  |

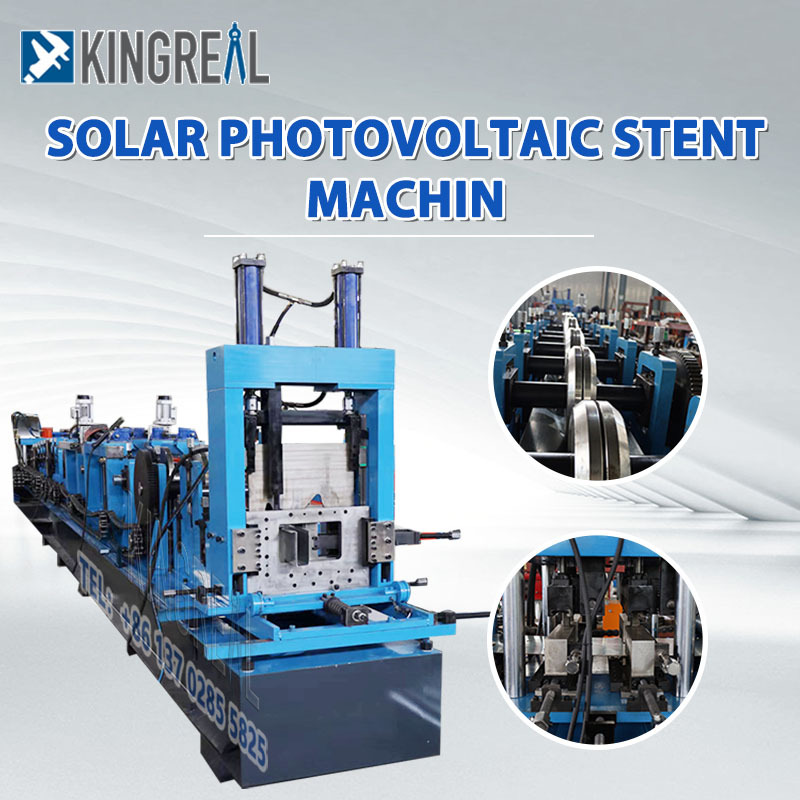

(3) Solar Photovoltaic Stent Machine
Introduction to Sigma Channel Roll Forming Machine The Solar Photovoltaic Stent Machine, also known as the Hat Purlin Machine, produces profiles with adjustable top widths from 30-90mm and heights from 50-150mm, meeting industry standards.
Features of Solar Photovoltaic Stent Machine
|  |
(4) Sigma Channel Roll Forming Machine
Introduction to Sigma Channel Roll Forming Machine The Sigma Channels produced by this Sigma Channel Roll Forming Machine are crucial components of the installation structure in solar power projects due to their durability and stability. The Sigma Channel Roll Forming Machine can mass-produce profiles that meet the precision requirements for solar panel installation.
Features of Sigma Channel Roll Forming Machine:
|  |

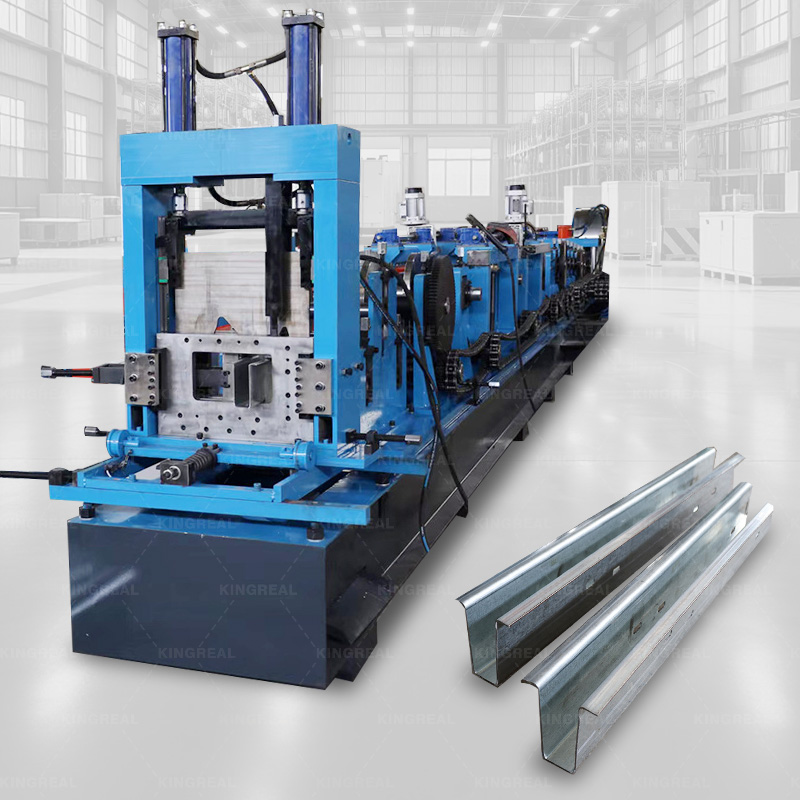

(5) U Purlin Machine
Introduction to U Purlin Machine This U purlin machine can process materials with a thickness of 1.5-3mm, producing profiles with a width of 100-300mm and a height of 50-100mm.
Features of U Purlin Machine
|  |
High-Efficiency Solutions for Solar Channel Production

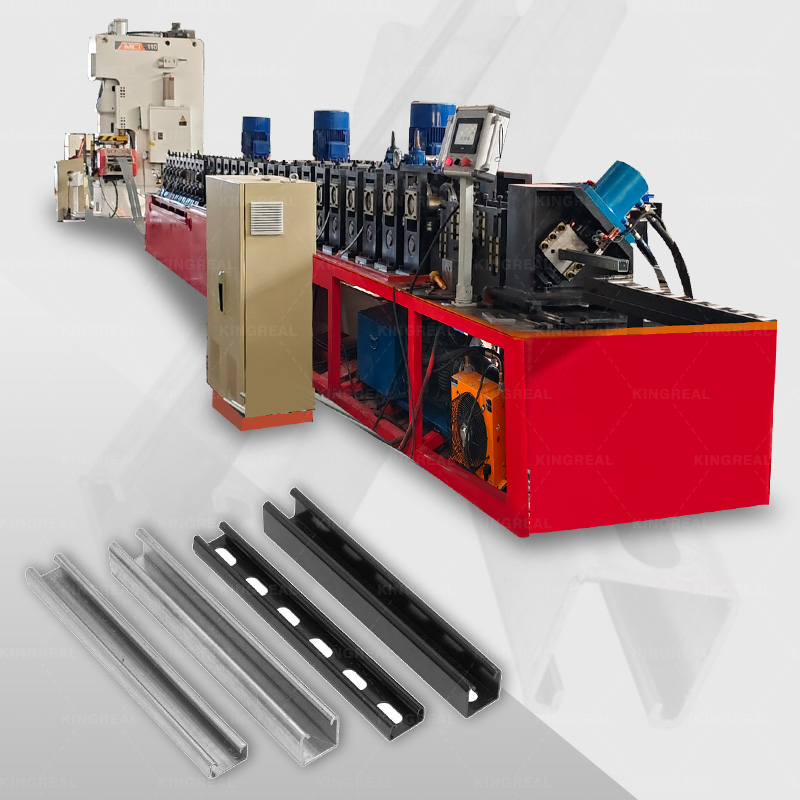

Introduction to Solar Channel Machine
The Solar Channel Machine can produce profiles of various sizes, such as 41x21, 41x41, 41x61, and 41x82. KINGREAL can provide single-specification or multi-specification Solar Channel Machines according to customer needs and design different speed solutions. The Solar Channel Machine can be equipped with a hydraulic punching station, with a maximum speed of 12m/min; it can also be equipped with a pneumatic punch press, with a speed of 18m/min. Notably, KINGREAL customizes punching dies according to customer drawings to ensure precision. |  |
Successful Projects
Solar Channel Machine in Mexico
KINGREAL designed an automatic packaging machine for a Mexican customer to improve production efficiency. This machine automatically snaps and stacks the profiles, reducing manpower. Furthermore, based on customer needs, KINGREAL designed a Solar Channel Machine to produce solar channels with serrated edges, increasing friction. It is worth mentioning that this Solar Channel Machine can produce profiles of different specifications by changing the hangers, meeting the diverse needs of customers. After the Solar Channel Machine was manufactured, KINGREAL specially invited the customer to the factory for inspection. After ensuring that the machine performance and finished product quality met the actual project requirements, the Mexican customer agreed to ship the Solar Channel Machine. Currently, the machine is running stably in the Mexican customer's factory, bringing him efficient production and considerable profits.
Solar Channel Machine in Italy
Because the Italian customer needed to process materials that were thicker than 2mm, KINGREAL specially equipped the Solar Channel Machine designed for the Italian customer with a heavy-duty 2-in-1 decoiler and leveling machine, just to better uncoil and level the material surface and ensure accuracy. In addition, the Italian customer's required punching of the profiles was different from the standard on the market. He also needed side punching. Based on this, the KINGREAL team adjusted the solution according to the Italian customer's needs and designed and manufactured a special punching mold.
The Benefits of Choosing KINGREAL Roll Forming Machine for Photovoltaic System
KINGREAL can provide a series of roll forming machines for photovoltaic systems for customers such as photovoltaic system installation projects and photovoltaic system profile retailers. This saves customers the time and effort of finding multiple suppliers and coordinating with them afterwards. Furthermore, KINGREAL offers the following advantages:
① One-stop service. KINGREAL provides customers with customized roll forming machine design, manufacturing, delivery, and installation services. We also continuously monitor machine usage, respond promptly to customer needs, and supply spare parts.
② ODM design capabilities. KINGREAL can provide customers with molding design and 3D design, including roller pattern diagrams, machine animations, and 3D renderings.
