" Many people know that cz purlins are used in roofing and steel structure, but few know that precision cz purlins produced by cz purlin machines are also an indispensable core structural component in photovoltaic (PV) systems. "

Role of CZ Purlin Machines in Photovoltaic Systems

The structural frame of a PV system mainly consists of main columns, beams, auxiliary components, and PV module rails. Z and C purlins produced by cz purlin roll forming machines serve as core auxiliary frame components, connecting the main columns to the beams and supporting the module rails.

CZ purlin machines can precisely machine steel into C-shaped, Z-shaped, and other specific cross-sectional profiles. These special cross-sectional shapes are scientifically designed and possess excellent mechanical properties, efficiently transferring various loads borne by the PV system—including the weight of the PV modules themselves, wind loads, snow loads, and seismic loads—while evenly distributing these loads to the main columns and foundation structure. This effectively prevents structural bending, deformation, or collapse, laying a solid foundation for the long-term safe operation of the PV system. Furthermore, CZ purlin roll forming machine's profiles allow for flexible adjustment of installation spacing based on the design requirements of photovoltaic (PV) layouts, adapting to PV projects of varying spans and terrains. Whether it's a flatland PV power station, a rooftop PV project, or a mountainous PV power station, CZ purlin machine's customized profiles enable flexible layouts, maximizing the use of land and space resources.

CZ Purlins Used in PV Systems

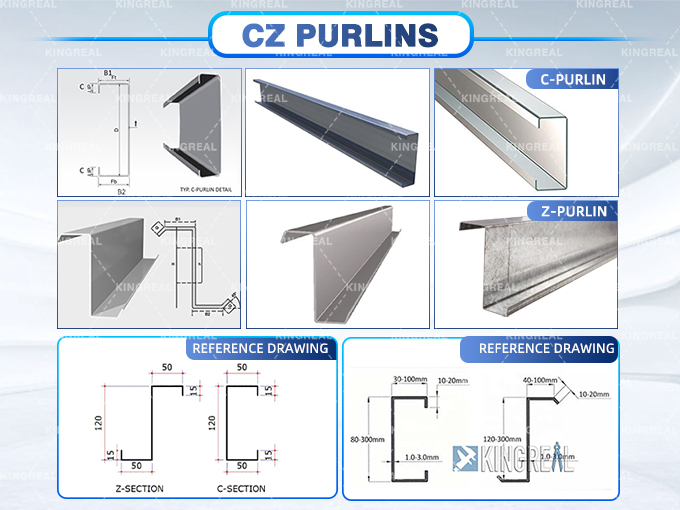

During the installation of PV support systems, C and Z purlins produced by cz purlin roll forming machine are the two most commonly used purlin types, suitable for PV projects of different scales and scenarios.

C purlins produced by cz purlin machine are characterized by high strength, compact structure, and convenient installation. Their cross-sectional shape effectively distributes loads, making them suitable for medium-span PV support structures and widely used in rooftop PV, small flatland PV power stations, and other scenarios. The Z purlins produced by the cz purlin roll forming machine have a Z-shaped cross-section, offering better overlap and load distribution. Adjacent purlins can be overlapped to achieve continuous load-bearing capacity, resulting in superior mechanical properties compared to simply supported beam structures. Therefore, they are more suitable for the installation of large-scale photovoltaic power plants and long-span photovoltaic support systems, effectively improving the overall stability and load-bearing capacity of the support structure.

The cz purlin machine utilizes advanced roll forming technology, paired with high-precision roller sets, and processes raw materials into precisely sized and standardized CZ purlin through multiple forming processes. This ensures that the dimensional error of each purlin is controlled within a reasonable range, guaranteeing installation consistency and adaptability. Simultaneously, the cz purlin roll forming machine's processing is automated, effectively avoiding errors introduced by manual processing. This improves production efficiency while ensuring product quality stability and uniformity, providing a solid guarantee for the installation quality of photovoltaic systems.

Advantages of using CZ Purlin Machine in Photovoltaic Systems

①Strong customization capabilities

KINGREAL can tailor-make cz purlin machine manufacturing solutions according to the actual project needs of customers. It can precision process various steel materials from 1-3mm, producing CZ purlins in various heights such as 75, 100, 125, 150, 175, 200, 250, 300, 350, and 400 mm, perfectly adapting to photovoltaic support systems of different spans and specifications.

②Rapid Changeover

Through an advanced PLC control system, it can quickly interchange C and Z purlins of various specifications in a short time, with a changeover time of only three minutes. No need to change the forming rollers, greatly saving changeover time and labor costs. This rapid changeover capability allows one cz purlin roll forming machine to simultaneously meet the production needs of both C and Z purlins, eliminating the need for customers to purchase two separate dedicated machines. This not only saves significant equipment investment costs but also reduces the space occupied by the equipment, making it particularly suitable for photovoltaic module production workshops with limited space.

③Precise Forming and Cutting

KINGREAL cz purlin machine ensures high precision, dimensional accuracy, and a smooth, burr-free surface on CZ purlins, eliminating the need for secondary processing and allowing direct application in photovoltaic (PV) system installations. This significantly improves construction efficiency and reduces costs. Furthermore, the cz purlin roll forming machine boasts a high degree of automation, equipped with an advanced electronic control system and a user-friendly interface, making operation simple and convenient. No specialized technicians are required, further reducing labor costs and operational complexity, and enhancing production efficiency.

Complete Photovoltaic System Solution

KINGREAL complete Photovoltaic System solution, in addition to the core cz purlin machine, includes supporting equipment such as cu solar channel machines and metal stamping making machines. These machines work in conjunction with the cz purlin roll forming machine to produce various structural components required for PV systems—including cz purlins, solar channels, and connectors. All components are manufactured using standardized processes, ensuring dimensional compatibility and performance consistency, preventing incompatibility issues caused by different equipment and ensuring installation quality and system stability.

KINGREAL professional team tailors solutions to each client's project scale, site conditions, and design requirements. From equipment selection and customization to installation, commissioning, and ongoing maintenance, KINGREAL provides a one-stop service to ensure efficient project construction. Whether it's a small-scale PV project or a large-scale power plant, KINGREAL can customize the most suitable equipment and solutions to meet your specific needs, helping you reduce project costs, improve efficiency, and achieve stable and efficient operation of your PV system.

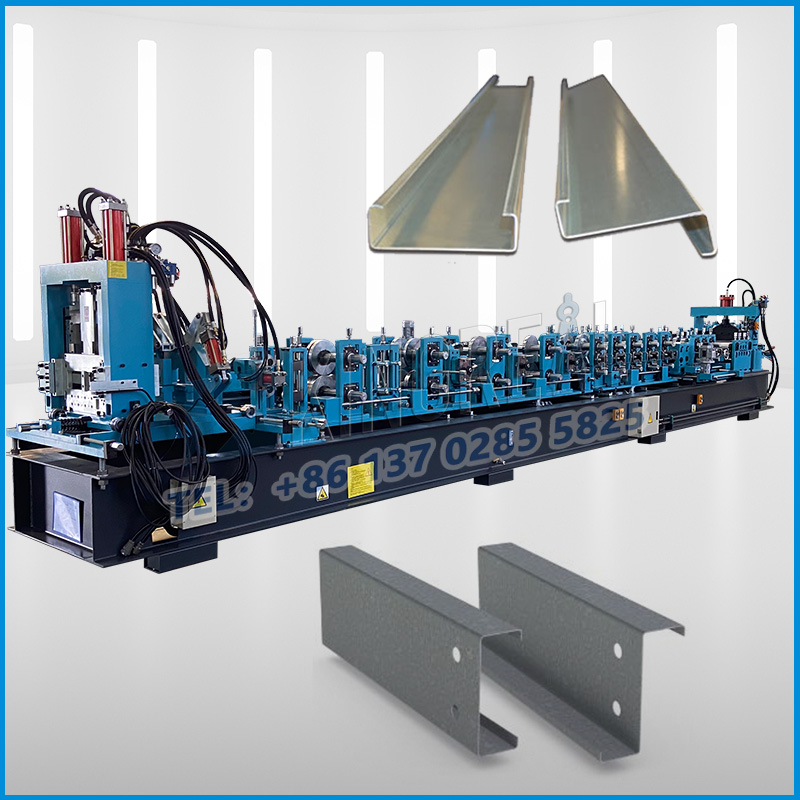

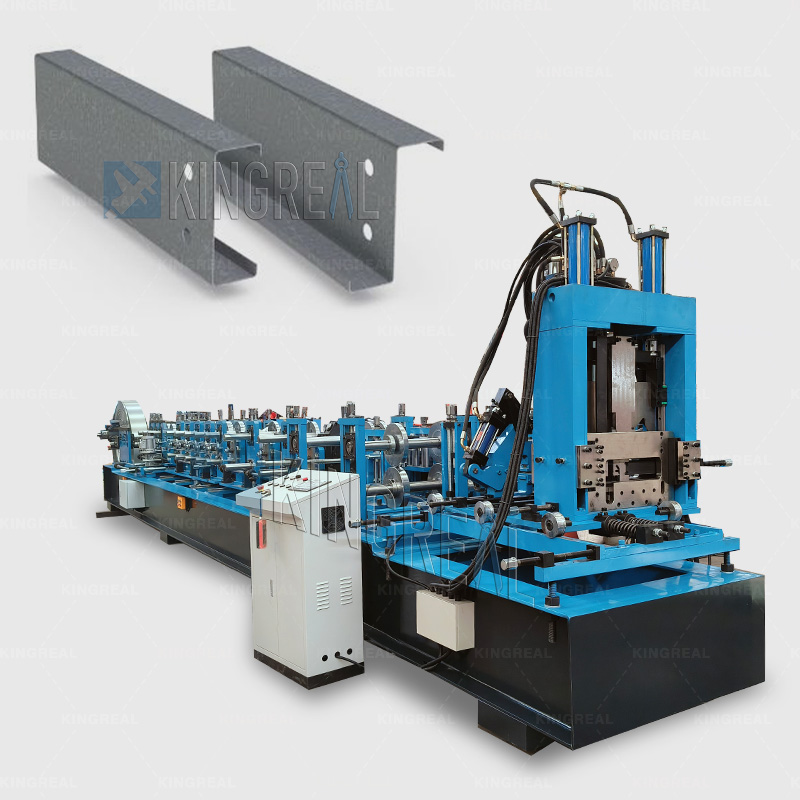

cz purlin machine

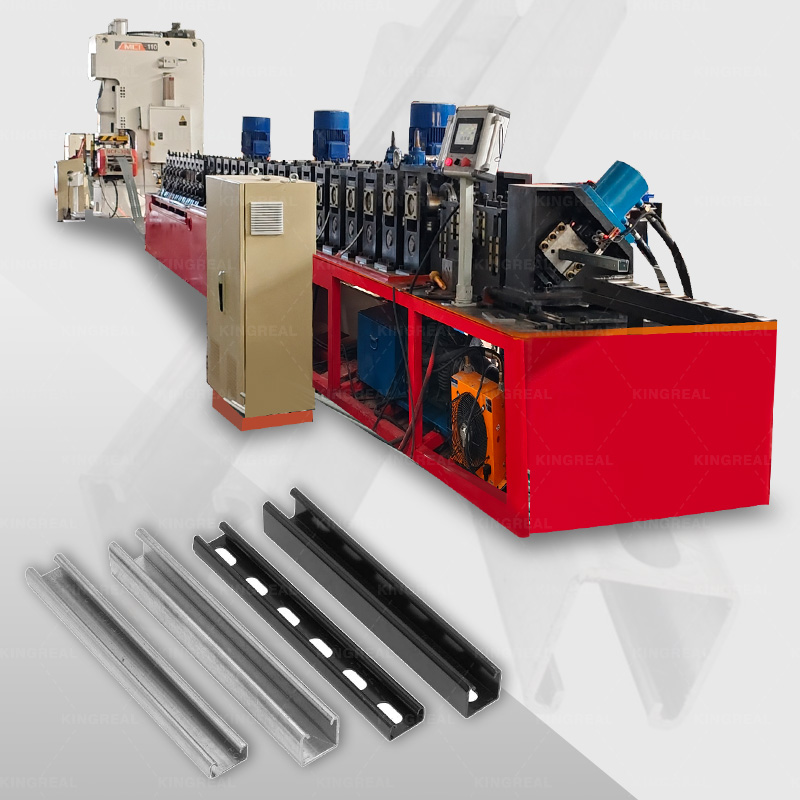

cu solar channel machine

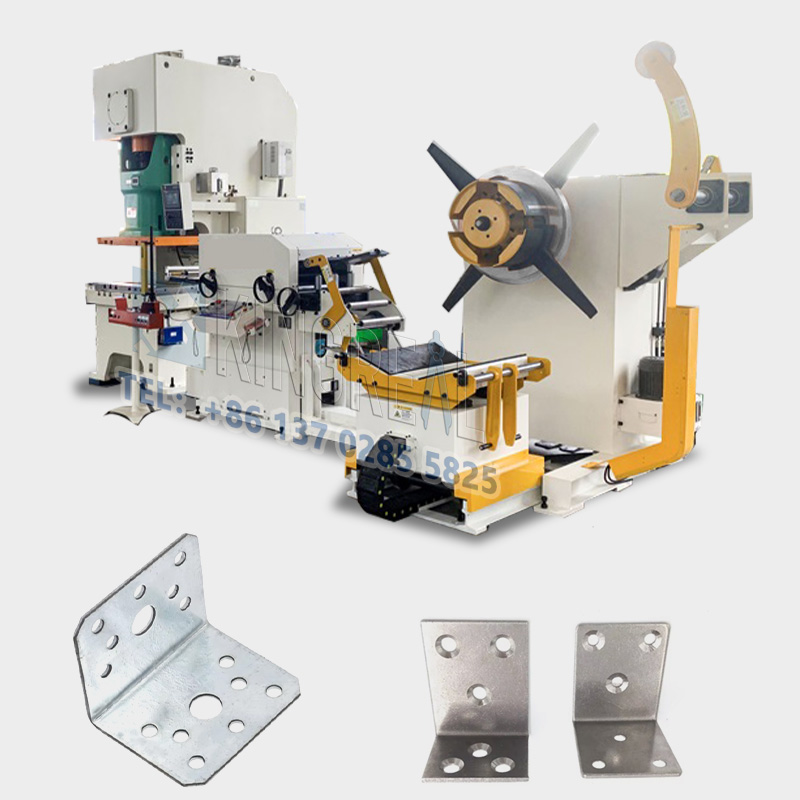

metal stamping making machine
